Seal Wiper 1PF

Seal wiper with increased wear resistance, for small fitting areas in pneumatic applications.

Application Range
Pressure: ≤ 16 bar
Temperature: -35 °C / +80 °C
Sliding Speed: ≤ 1 m/s
Standard Material: PUR

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Load product catalog

Are you missing materials or dimensions?

Feel free to contact us!

Our sealing experts will be happy to advise you!

+49(201)86606-0 or vk@techno-parts.de

Filter

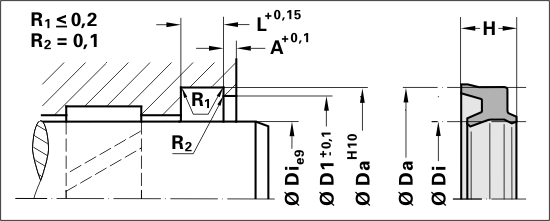

Di [mm] Da [mm] H [mm] L [mm]
Min:
Max:
Material selection
Material:
Material No.
V
Profile Di [mm] Da [mm] H [mm] L [mm] Material Mat. No. V Quantity
1PF 8.00 14.20 5.00 3.60 PUR 0010P 2
1PF 16.00 20.50 4.00 3.70 HNBR 0099N 2
1PF 28.00 33.50 5.00 0.00 PUR 0017P 1
1PF 25.00 31.00 4.80 0.00 PUR 0090P 1
1PF 35.00 40.50 5.00 4.55 PUR 0051P 2
1PF 10.00 14.00 3.70 3.40 PUR 0010P 1
1PF 8.00 11.50 3.20 3.00 EPDM 0004E 2
1PF 14.00 18.50 4.00 3.70 PUR 0010P 1
1PF 32.00 37.50 5.00 4.55 PUR 0010P 1
1PF 25.00 30.00 4.60 4.15 PUR 0010P 1
1PF 16.00 20.50 4.00 3.70 FPM 0160V 2
1PF 36.51 42.51 5.00 4.55 PUR 0051P 2
1PF 20.00 25.00 4.60 4.15 PUR 0010P 1
1PF 30.00 35.50 5.00 4.55 PUR 0010P 1
1PF 18.00 22.50 4.00 3.70 PUR 0010P 1
1PF 50.00 56.00 5.50 4.90 PUR 0010P 2
1PF 25.00 30.00 4.60 4.15 PUR 0059P 2
1PF 63.00 69.50 6.00 5.40 PUR 0051P 2
1PF 8.00 11.50 3.20 3.00 PUR 0010P 1
1PF 32.00 37.50 5.00 4.55 FPM 0160V 2
1PF 12.00 16.50 4.00 3.70 FPM 0160V 2
1PF 8.00 11.50 3.20 3.00 FPM 0160V 2
1PF 20.00 25.00 4.60 4.15 FPM 0160V 1
1PF 40.00 46.00 5.50 4.90 PUR 0020P 2
1PF 22.00 27.00 4.60 4.15 PUR 0010P 1
1PF 12.00 16.50 4.00 3.70 PUR 0010P 1
1PF 50.00 56.00 5.50 4.90 PUR 0051P 2
1PF 3.00 5.60 2.80 2.70 PUR 0010P 1
1PF 20.00 30.00 7.50 6.00 PUR 0090P 2
1PF 6.00 9.00 2.80 2.70 FPM 0160V 1
1PF 10.00 14.00 3.70 3.40 FPM 0160V 2
1PF 8.00 14.20 3.60 0.00 NBR 0090N 2
1PF 40.00 46.00 5.50 4.90 PUR 0051P 2
1PF 8.00 11.50 3.20 3.00 PUR 0008P 1
1PF 25.00 31.00 4.80 3.60 PUR 0090P 1
1PF 3.00 5.60 2.80 2.70 FPM 0160V 1
1PF 23.00 27.00 4.60 4.15 PUR 0010P 2
1PF 32.00 37.50 5.00 4.55 0086V 2
1PF 50.00 65.00 14.00 11.00 NBR 0085N 2
1PF 63.00 69.50 6.00 5.40 FKM 0085V 2
1PF 16.00 20.50 4.00 3.70 PUR 0010P 1
1PF 6.00 9.00 2.80 2.70 PUR 0010P 1
1PF 4.00 7.00 2.80 2.70 PUR 0010P 1
1PF 25.00 30.00 4.60 4.15 FPM 0160V 1
1PF 5.00 8.00 2.80 2.70 PUR 0010P 1
1PF 40.00 46.00 5.50 4.90 PUR 0064P 1
