Seal Wiper 1PA

Seal wiper with increased wear resistance for pneumatic applications.

Application Range
Pressure: ≤ 16 bar
Temperature: -35 °C / +80 °C
Sliding Speed: ≤ 1 m/s
Standard Material: PUR

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Load product catalog

Are you missing materials or dimensions?

Feel free to contact us!

Our sealing experts will be happy to advise you!

+49(201)86606-0 or vk@techno-parts.de

Filter

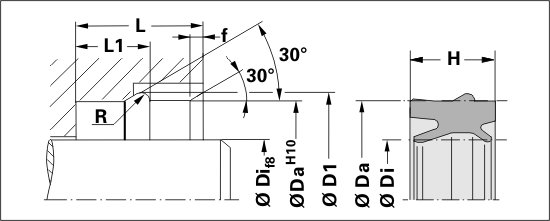

Di [mm] Da [mm] H [mm] L [mm] L1 [mm]
Min:
Max:
V
Profile Di [mm] Da [mm] H [mm] L [mm] L1 [mm] Material Mat. No. V Quantity
1PA 40.00 50.00 11.20 14.00 9.40 PUR 0007P 1
1PA 22.00 32.00 11.20 14.00 9.40 PUR 0007P 1
1PA 12.00 19.00 10.00 12.00 7.70 PUR 0007P 1
1PA 14.00 24.00 10.70 13.00 8.80 PUR 0007P 2
1PA 16.00 26.00 10.70 13.00 8.80 PUR 0007P 1
1PA 18.00 26.00 10.70 13.00 8.80 PUR 0007P 1
1PA 18.00 28.00 10.70 13.00 8.80 PUR 0007P 2
1PA 32.00 42.00 10.40 0.00 0.00 PUR 0090P 2
1PA 20.00 30.00 10.70 13.00 8.80 PUR 0007P 1
1PA 10.00 18.00 10.70 13.00 8.80 PUR 0007P 2
1PA 30.00 40.00 11.20 14.00 9.40 PUR 0007P 2
1PA 12.00 20.00 10.70 13.00 8.80 PUR 0007P 1
1PA 45.00 55.00 12.20 15.00 10.40 PUR 0007P 1
1PA 50.00 60.00 12.20 15.00 10.40 PUR 0007P 1
1PA 25.00 35.00 11.20 14.00 9.40 PUR 0007P 1
1PA 50.00 60.00 13.00 10.70 0.00 PUR 0090P 1
1PA 63.00 75.00 13.00 16.00 11.40 PUR 0007P 1
1PA 32.00 42.00 11.20 14.00 9.40 PUR 0007P 1
1PA 12.00 22.00 10.70 13.00 8.80 PUR 0007P 1
