Seal Wiper 1P4

Seal wipers for small cylinders in pneumatic applications.

Application Range
Pressure NBR: ≤ 10 bar
Pressure PUR, FKM: ≤ 16 bar
Temperature NBR: -10 °C / +80 °C
Temperature PUR: -35 °C / +80 °C
Temperature FKM: -20 °C / +160 °C
Sliding Speed: ≤ 1 m/s

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Load product catalog

Are you missing materials or dimensions?

Feel free to contact us!

Our sealing experts will be happy to advise you!

+49(201)86606-0 or vk@techno-parts.de

Filter

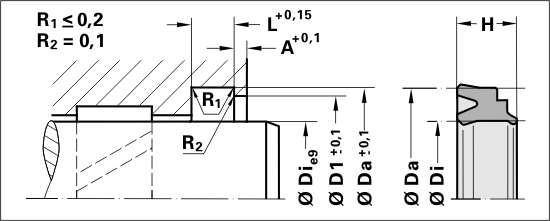

Di [mm] Da [mm] H [mm] L [mm]
Min:
Max:
Material selection
Material:
Material No.
V
Profile Di [mm] Da [mm] H [mm] L [mm] Material Mat. No. V Quantity
1P4 4.00 8.20 4.00 3.00 NBR 0027N 1
1P4 4.00 8.20 4.00 3.00 FKM 0012V 2
1P4 6.00 11.20 5.00 3.60 PUR 0017P 1
1P4 8.00 14.20 5.00 3.60 NBR 0022N 1
1P4 4.00 8.20 4.00 3.00 PUR 0007P 1
1P4 8.00 14.20 5.00 3.60 FKM 0013V 1
1P4 6.00 12.00 7.40 5.40 PUR 0007P 2
1P4 10.00 18.00 7.90 5.90 PUR 0007P 1
1P4 12.00 18.20 6.00 4.20 NBR 0027N 1
1P4 8.00 14.20 5.00 3.60 PUR 0007P 1
1P4 10.00 16.20 6.00 4.20 PUR 0017P 1
1P4 16.00 23.00 6.00 4.20 NBR 0027N 2
1P4 12.00 18.20 6.00 4.20 FKM 0013V 1
1P4 8.00 14.20 5.00 3.60 FKM 0012V 1
1P4 16.00 24.00 7.40 3.60 PUR 0090P 1
1P4 16.00 23.00 6.00 4.20 FKM 0013V 1
1P4 6.00 11.20 5.00 3.60 PUR 0007P 1
1P4 8.00 14.20 5.00 3.60 HNBR 0098N 2
1P4 10.00 16.20 6.00 4.20 FKM 0013V 1
1P4 8.00 14.20 5.00 3.60 NBR 0027N 1
1P4 8.00 14.20 5.00 3.60 EPDM 0004E 1
1P4 16.00 23.00 6.00 4.20 NBR 0027N 1
1P4 10.00 16.20 6.00 4.20 PUR 0007P 1
1P4 12.00 18.20 6.00 4.20 NBR 0063N 1
1P4 10.00 16.20 6.00 4.20 NBR 0027N 1
1P4 10.00 16.20 6.00 4.20 FPM 0160V 1
1P4 10.00 16.20 6.00 4.20 FKM 0012V 1
1P4 12.00 18.20 6.00 4.20 NBR 0085N 2
1P4 10.00 16.20 3.80 6.20 NBR 0080N 1
1P4 10.00 16.20 6.00 4.20 NBR 0022N 2
1P4 6.00 11.20 5.00 3.60 FKM 0012V 1
1P4 6.00 11.20 5.00 3.60 FKM 0013V 1
1P4 6.00 11.20 5.00 3.60 NBR 0027N 1
1P4 6.00 11.20 5.20 3.20 NBR 0080N 2
1P4 20.00 29.00 6.80 0.00 PUR 0007P 1
1P4 20.00 30.00 10.70 0.00 0003M / 1.4310 / VMQ 0055Y 1
1P4 16.00 24.00 8.00 4.00 PUR 0090P 2
