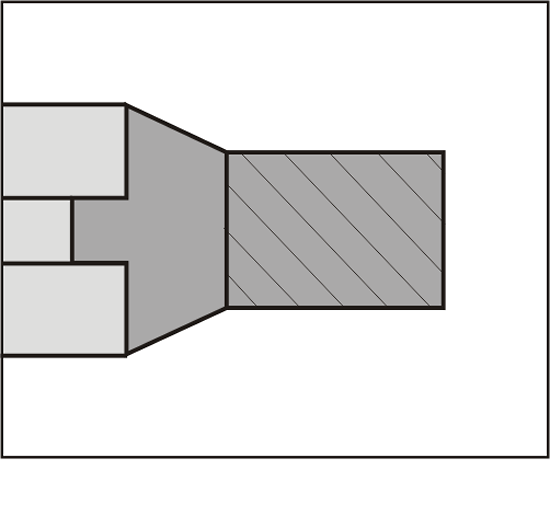

U-Ring 4U1
U-ring, self-centring, as screw seal.
Application Range
Pressure with countersink: ≤ 1000 bar
Pressure without countersink: ≤ 400 bar (Da ≤ 40 mm); 250 bar (Da > 40 mm)
Temperature: -30 °C / +100 °C
Standard Material: NBR/steel
Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.
Load product catalog
Are you missing materials or dimensions?
Feel free to contact us!
Our sealing experts will be happy to advise you!
Filter
| Di [mm] | Da [mm] | S [mm] | |
|---|---|---|---|
| Min: | |||
| Max: |
| Material selection | |
|---|---|
| Material: | |
| Material No. |
| V | |
|---|---|
| Profile | Di [mm] | Da [mm] | S [mm] | Material | Mat. No. | V | Quantity |
|---|
