PTFE Lip Seal 2V7

PTFE lip seal, outside sealing, with reinforced spring force and several sealing lips. (≤ 450 bar with backup-rings.)

Application Range
Pressure: ≤ 250 bar (≤ 450 bar with back-up ring)
Temperature: -120 °C / +260 °C
Sliding Speed: ≤ 10 m/s
Standard Material: PTFE-comp.

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Load product catalog Material Code
Material Code for PTFE Lips Seals with Spring
Material of Lip Seal Material of Profiled Spring Material of Filling Material Code
Material of Lip SealPTFE/Carbon (89T) Material of Profiled Spring1.4310 Material of Filling– Material Code0021X
Material of Lip Sealmod. PTFE (25T) Material of Profiled Spring1.4310 Material of Filling– Material Code0051X
Material of Lip Sealmod. PTFE (91T) Material of Profiled Spring1.4310 Material of Filling– Material Code0023X
Material of Lip SealPTFE, pure (00T) Material of Profiled Spring1.4310 Material of Filling– Material Code0022X
Material of Lip SealPTFE/Carbon (05T) Material of Profiled Spring1.4310 Material of Filling– Material Code0048X
Material of Lip SealPE (03M) Material of Profiled Spring1.4310 Material of Filling– Material Code0049X
Material of Lip SealPTFE/Ekonol (22T) Material of Profiled Spring1.4310 Material of Filling– Material Code0032X
Material of Lip SealPTFE/Carbon Fibre (31T) Material of Profiled Spring1.4310 Material of Filling– Material Code0053X
Material of Lip SealPTFE/PEEK (52T) Material of Profiled Spring1.4310 Material of Filling– Material Code0100X
Material of Lip SealPTFE/Graphite (90T) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0050Y
Material of Lip SealPTFE/Carbon Fibre (31T) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0051Y
Material of Lip SealPTFE/Carbon (05T) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0052Y
Material of Lip SealPTFE/Ekonol (22T) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0053Y
Material of Lip Sealmod. PTFE (25T) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0054Y
Material of Lip SealPE (03M) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0055Y
Material of Lip SealPTFE/PEEK (52T) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0056Y
Material of Lip SealTFM (36T) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0057Y

Are you missing materials or dimensions?

Feel free to contact us!

Our sealing experts will be happy to advise you!

+49(201)86606-0 or vk@techno-parts.de

Filter

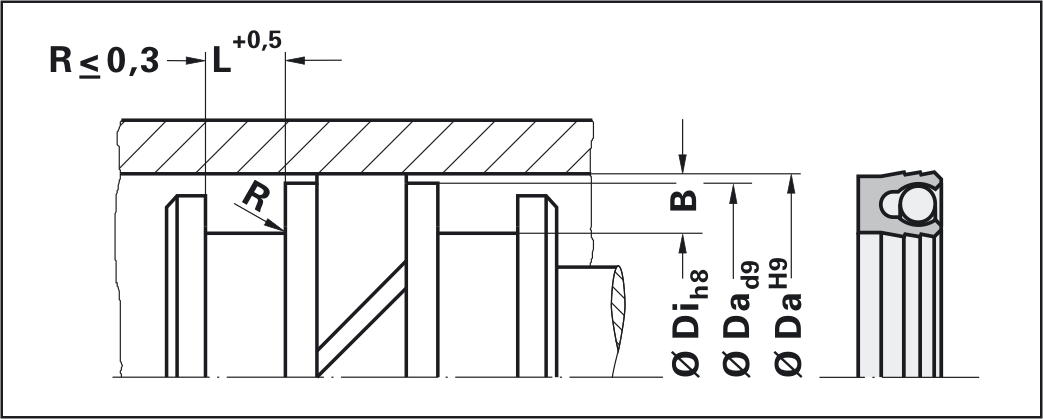

Da [mm] Di [mm] L [mm]
Min:
Max:
Material selection
Material:
Material No.
V
Profile Da [mm] Di [mm] L [mm] Material Mat. No. V Quantity
2V7 40.00 28.00 8.50 0005T / 2.4819 0095X 2
2V7 110.00 90.00 15.50 0005T / 1.4310 0048X 2
2V7 80.00 72.00 5.50 0005T / 1.4310 0048X 1
2V7 150.00 125.00 18.50 0088T / 1.4310 0064X 2
2V7 320.00 290.00 23.00 0005T / 1.4310 0048X 2
2V7 40.00 30.00 7.50 0005T / 1.4310 0048X 2
2V7 67.00 57.00 8.00 0005T / 1.4310 0048X 2
2V7 20.00 12.00 5.50 0005T / 1.4310 0048X 2
2V7 85.00 65.00 15.50 0005T / 1.4310 0048X 2
2V7 20.00 12.00 5.50 0003M / 1.4310 0049X 2
2V7 350.00 320.00 23.00 0005T / 1.4310 0048X 2
2V7 360.00 340.00 15.50 0005T / 1.4310 0048X 2
2V7 500.00 480.00 15.50 0005T / 1.4310 0048X 2
2V7 115.00 90.00 18.50 0005T / 1.4310 0048X 2
2V7 320.00 300.00 15.50 0005T / 1.4310 0048X 2
2V7 80.00 60.00 15.50 0005T / 1.4310 0048X 2
2V7 50.00 35.00 11.50 0000T / 1.4310 0022X 2
2V7 145.00 125.00 15.50 0005T / 1.4310 0048X 2
2V7 30.00 18.00 8.50 0000T / 1.4310 0022X 2
2V7 95.00 80.00 11.50 0005T / 1.4310 0048X 2
2V7 85.00 70.00 11.50 0005T / 1.4310 0048X 2
2V7 20.00 12.00 5.50 0005T / 2.4711 0106X 2
2V7 30.00 18.00 8.50 0005T / 1.4310 0048X 2
2V7 30.00 18.00 8.50 0005T / 2.4819 0095X 2
2V7 40.00 28.00 8.50 0005T / 2.4711 0106X 2
2V7 80.00 60.00 15.50 0088T / 1.4310 0064X 2
