PTFE Lip Seal 2V2

PTFE lip seal, outside sealing, with reinforced spring force for gas and vacuum applications.

Application Range
Pressure: ≤ 400 bar
Temperature: -120 °C / +260 °C
Sliding Speed: ≤ 5 m/s
Standard Material: PTFE-comp.

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Load product catalog Material Code
Material Code for PTFE Lips Seals with Spring
Material of Lip Seal Material of Profiled Spring Material of Filling Material Code
Material of Lip SealPTFE/Carbon (89T) Material of Profiled Spring1.4310 Material of Filling– Material Code0021X
Material of Lip Sealmod. PTFE (25T) Material of Profiled Spring1.4310 Material of Filling– Material Code0051X
Material of Lip Sealmod. PTFE (91T) Material of Profiled Spring1.4310 Material of Filling– Material Code0023X
Material of Lip SealPTFE, pure (00T) Material of Profiled Spring1.4310 Material of Filling– Material Code0022X
Material of Lip SealPTFE/Carbon (05T) Material of Profiled Spring1.4310 Material of Filling– Material Code0048X
Material of Lip SealPE (03M) Material of Profiled Spring1.4310 Material of Filling– Material Code0049X
Material of Lip SealPTFE/Ekonol (22T) Material of Profiled Spring1.4310 Material of Filling– Material Code0032X
Material of Lip SealPTFE/Carbon Fibre (31T) Material of Profiled Spring1.4310 Material of Filling– Material Code0053X
Material of Lip SealPTFE/PEEK (52T) Material of Profiled Spring1.4310 Material of Filling– Material Code0100X
Material of Lip SealPTFE/Graphite (90T) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0050Y
Material of Lip SealPTFE/Carbon Fibre (31T) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0051Y
Material of Lip SealPTFE/Carbon (05T) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0052Y
Material of Lip SealPTFE/Ekonol (22T) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0053Y
Material of Lip Sealmod. PTFE (25T) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0054Y
Material of Lip SealPE (03M) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0055Y
Material of Lip SealPTFE/PEEK (52T) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0056Y
Material of Lip SealTFM (36T) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0057Y

Are you missing materials or dimensions?

Feel free to contact us!

Our sealing experts will be happy to advise you!

+49(201)86606-0 or vk@techno-parts.de

Filter

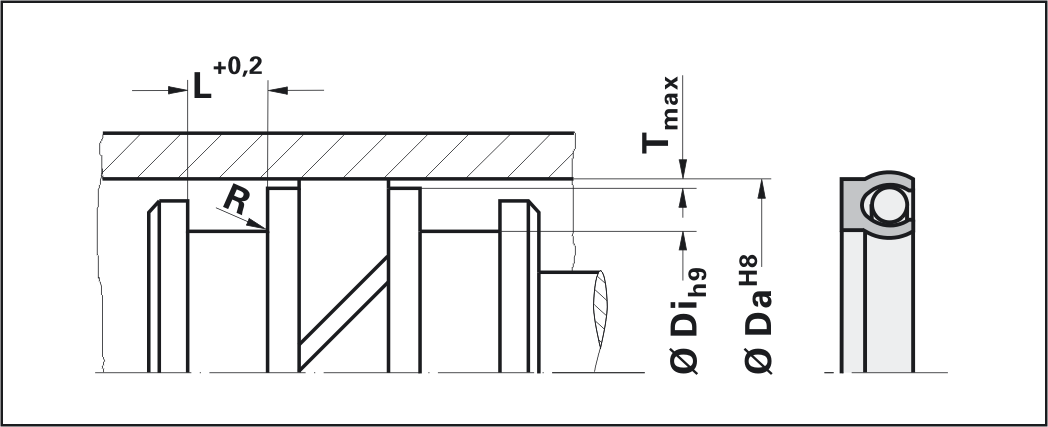

Da [mm] Di [mm] L [mm]
Min:
Max:
Material selection
Material:
Material No.
V
Profile Da [mm] Di [mm] L [mm] Material Mat. No. V Quantity
2V2 243.00 233.60 7.10 0005T / 1.4310 0048X 2
2V2 63.00 53.60 7.10 0138X 2
2V2 21.00 16.50 3.60 0000T / 2.4711 0107X 1
2V2 27.00 20.80 4.80 0005T / 1.4310 0048X 2
2V2 14.00 11.10 2.40 0000T / 1.4310 0022X 2
2V2 280.00 267.80 9.50 0005T / 1.4310 0048X 2
2V2 340.00 327.80 9.50 0005T / 1.4310 0048X 2
2V2 348.00 338.60 7.10 0005T / 1.4310 0048X 2
2V2 352.50 340.30 9.50 0005T / 1.4310 0048X 2
2V2 16.00 11.50 3.60 0005T / 1.4310 0048X 2
2V2 10.00 7.10 2.40 0089T / 1.4310 0021X 2
2V2 35.00 28.80 4.80 0025T / 1.4310 0051X 2
2V2 16.00 11.50 3.60 0025T / 1.4310 0051X 2
2V2 280.00 270.60 7.10 0005T / 1.4310 0048X 2
2V2 390.00 380.60 7.10 0005T / 1.4310 0048X 2
2V2 1488.60 1476.40 9.50 0000T / 2.4711 0107X 2
2V2 123.00 113.60 7.10 0005T / 1.4310 0048X 2
2V2 8.00 5.10 2.40 0089T / 1.4310 0021X 2
2V2 60.00 50.60 7.10 0093T / 1.4310 0034X 1
2V2 50.00 40.60 7.10 0089T / 1.4310 0021X 2
2V2 50.00 40.60 7.10 0005T / 1.4310 0048X 2
2V2 60.00 50.60 7.10 0010T / 2.4819 0122X 2
2V2 175.00 162.80 9.50 0005T / 1.4310 0048X 2
2V2 14.00 11.10 2.40 0005T / 1.4310 0048X 2
2V2 210.00 200.60 7.10 0005T / 1.4310 0048X 2
2V2 948.00 935.90 12.10 0005T / 1.4310 0048X 2
2V2 300.00 290.55 7.10 0005T / 1.4310 0048X 2
2V2 177.00 167.60 7.10 0005T / 1.4310 0048X 2
2V2 28.00 21.80 4.80 0005T / 1.4310 0048X 2
2V2 66.80 57.40 7.10 0000T / 2.4711 0107X 1
2V2 50.00 40.60 7.10 0003M / 1.4310 0049X 2
2V2 40.00 33.80 4.80 0005T / 1.4310 0048X 2
2V2 62.50 53.10 7.10 0000T / 2.4711 0107X 1
2V2 107.95 0.00 7.94 0005T / 1.4310 0048X 2
2V2 26.00 19.80 4.80 0003M / 1.4310 0049X 2
2V2 172.00 159.50 9.50 0005T / 1.4310 0048X 2
2V2 72.00 62.60 7.10 0005T / 1.4310 0048X 2
2V2 610.00 597.80 9.50 0005T / 1.4310 0048X 2
2V2 83.40 74.00 7.10 0005T / 1.4310 0048X 2
2V2 90.00 80.60 7.10 0005T / 1.4310 0048X 2
2V2 105.00 95.60 7.10 0017T / 1.4310 0043X 2
2V2 105.00 98.80 4.80 0025T / 1.4310 0051X 2
2V2 110.00 100.60 7.10 0089T / 1.4310 0021X 2
2V2 370.00 357.80 9.50 0093T / 1.4310 0034X 2
2V2 20.00 15.50 3.60 0005T / 1.4310 0048X 2
2V2 20.00 15.50 3.60 0025T / 1.4310 0051X 2
2V2 23.00 18.50 3.60 0005T / 1.4310 0048X 2
2V2 16.00 11.50 3.60 0025T / 1.4310 0051X 2
2V2 70.00 60.60 7.10 0022T / 1.4310 0032X 2
2V2 250.00 237.80 9.50 0005T / 1.4310 0048X 2
2V2 450.00 437.80 10.00 0005T / 1.4310 0048X 2
2V2 465.00 452.80 10.00 0005T / 1.4310 0048X 2
2V2 93.50 84.10 7.10 0005T / 1.4310 0048X 2
2V2 60.00 50.60 7.10 0025T / 1.4310 0051X 2
2V2 154.00 141.80 9.50 0000T / 2.4711 0107X 1
2V2 38.00 33.50 3.60 0000T / 1.4310 0022X 2
2V2 29.00 22.80 4.80 0000T / 2.4711 0107X 2
2V2 157.60 145.40 9.50 0093T / 1.4310 0034X 2
2V2 157.60 145.40 9.50 0005T / 1.4310 0048X 2
2V2 108.00 98.60 7.10 0000T / 2.4711 0107X 2
2V2 105.00 95.60 7.10 0005T / 1.4310 0048X 2
2V2 260.00 250.55 7.10 0005T / 1.4310 0048X 2
2V2 35.00 28.80 4.80 0005T / 1.4310 0048X 2
2V2 350.00 340.60 7.10 0005T / 1.4310 0048X 2
2V2 112.00 102.60 7.10 0000T / 2.4711 0107X 1
2V2 122.00 112.60 7.10 0089T / 1.4310 0021X 2
2V2 250.00 240.60 7.10 0005T / 1.4310 0048X 2
2V2 60.00 53.80 4.80 0025T / 1.4310 0051X 2
2V2 217.90 208.50 7.10 0022T / 2.4819 0097X 2
2V2 175.00 165.60 7.10 0005T / 1.4310 0048X 2
2V2 124.00 114.60 7.10 0000T / 2.4711 0107X 1
2V2 112.00 102.60 7.10 0005T / 1.4310 0048X 2
2V2 37.00 30.80 4.80 0000T / 2.4711 0107X 2
2V2 70.00 60.60 7.10 0000T / 2.4711 0107X 2
2V2 60.00 50.60 7.10 0005T / 1.4310 0048X 2
2V2 335.00 325.60 7.10 0005T / 1.4310 0048X 2
