PTFE Lip Seal 2V1

PTFE lip seal, outside sealing, for aggressive media, also available with silicon filling for easier sterilisation.

Application Range
Pressure: ≤ 350 bar
Temperature: -70 °C / +225 °C
Sliding Speed: ≤ 10 m/s
Standard Material: PTFE-comp.

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Load product catalog Material Code
Material Code for PTFE Lips Seals with Spring
Material of Lip Seal Material of Profiled Spring Material of Filling Material Code
Material of Lip SealPTFE/Carbon (89T) Material of Profiled Spring1.4310 Material of Filling– Material Code0021X
Material of Lip Sealmod. PTFE (25T) Material of Profiled Spring1.4310 Material of Filling– Material Code0051X
Material of Lip Sealmod. PTFE (91T) Material of Profiled Spring1.4310 Material of Filling– Material Code0023X
Material of Lip SealPTFE, pure (00T) Material of Profiled Spring1.4310 Material of Filling– Material Code0022X
Material of Lip SealPTFE/Carbon (05T) Material of Profiled Spring1.4310 Material of Filling– Material Code0048X
Material of Lip SealPE (03M) Material of Profiled Spring1.4310 Material of Filling– Material Code0049X
Material of Lip SealPTFE/Ekonol (22T) Material of Profiled Spring1.4310 Material of Filling– Material Code0032X
Material of Lip SealPTFE/Carbon Fibre (31T) Material of Profiled Spring1.4310 Material of Filling– Material Code0053X
Material of Lip SealPTFE/PEEK (52T) Material of Profiled Spring1.4310 Material of Filling– Material Code0100X
Material of Lip SealPTFE/Graphite (90T) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0050Y
Material of Lip SealPTFE/Carbon Fibre (31T) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0051Y
Material of Lip SealPTFE/Carbon (05T) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0052Y
Material of Lip SealPTFE/Ekonol (22T) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0053Y
Material of Lip Sealmod. PTFE (25T) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0054Y
Material of Lip SealPE (03M) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0055Y
Material of Lip SealPTFE/PEEK (52T) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0056Y
Material of Lip SealTFM (36T) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0057Y

Are you missing materials or dimensions?

Feel free to contact us!

Our sealing experts will be happy to advise you!

+49(201)86606-0 or vk@techno-parts.de

Filter

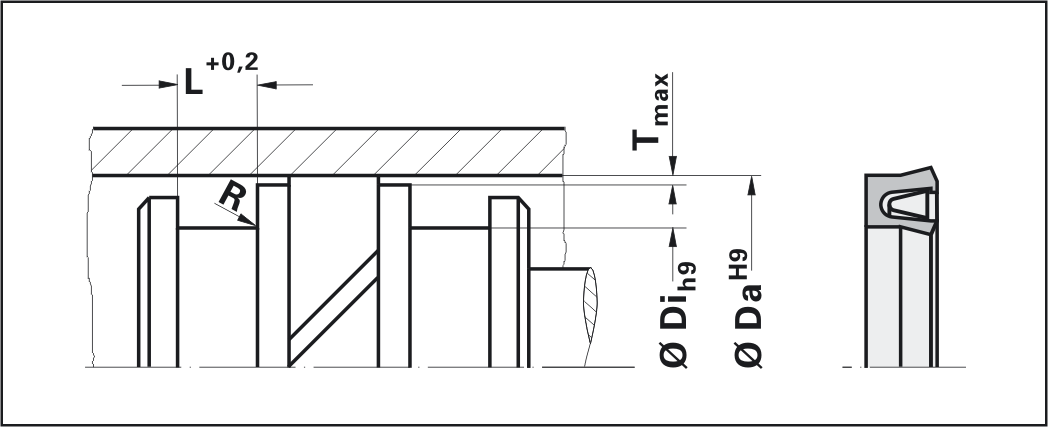

Da [mm] Di [mm] L [mm]
Min:
Max:
Material selection
Material:
Material No.
V
Profile Da [mm] Di [mm] L [mm] Material Mat. No. V Quantity
2V1 50.00 40.60 7.10 0005T / 1.4310 0048X 2
2V1 500.00 487.80 9.50 0005T / 1.4310 0048X 2
2V1 110.00 100.60 7.10 0005T / 1.4310 0048X 2
2V1 40.00 33.80 4.80 0031T / 2.4819 0188X 2
2V1 60.20 50.80 7.10 0005T / 1.4310 0048X 2
2V1 29.00 22.80 4.80 0003M / 1.4310 0049X 2
2V1 180.00 167.80 9.50 0005T / 1.4310 0048X 2
2V1 89.00 79.60 7.10 0022T / 1.4310 0032X 2
2V1 90.00 80.60 7.10 0005T / 1.4310 0048X 2
2V1 90.00 80.60 7.10 0003M / 1.4310 0049X 2
2V1 90.00 80.60 7.10 0022T / 1.4310 0032X 2
2V1 95.00 82.80 9.50 0025T / 1.4310 0051X 2
2V1 95.00 88.80 4.80 0005T / 1.4310 0048X 2
2V1 100.00 87.80 9.50 0025T / 1.4310 / VMQ 0054Y 2
2V1 14.00 9.50 3.60 0003M / 1.4310 0049X 2
2V1 15.00 10.50 3.60 0031T / 1.4310 0053X 2
2V1 30.00 23.80 4.80 0031T / 2.4819 0188X 2
2V1 20.00 15.50 3.60 0003M / 1.4310 0049X 2
2V1 16.00 11.50 3.60 0025T / 1.4310 / VMQ 0054Y 2
2V1 145.00 132.80 9.50 0000T / 1.4310 0022X 2
2V1 14.00 9.50 3.60 0005T / 1.4310 0048X 2
2V1 15.50 11.00 3.60 0003M / 1.4310 0049X 2
2V1 50.00 40.60 7.10 0025T / 1.4310 0051X 2
2V1 40.00 33.80 4.80 0005T / 1.4310 0048X 1
2V1 125.00 112.80 9.50 0003M / 2.4819 0067X 2
2V1 74.00 64.60 7.10 0005T / 1.4310 0048X 2
2V1 25.00 18.80 4.80 0031T / 1.4310 0053X 2
2V1 240.00 230.60 7.10 0005T / 1.4310 0048X 2
2V1 128.00 115.80 9.50 0005T / 1.4310 0048X 2
2V1 130.00 117.80 9.50 0005T / 1.4310 0048X 2
2V1 136.00 123.80 9.50 0005T / 1.4310 0048X 2
2V1 149.00 136.80 9.50 0089T / 1.4310 0021X 2
2V1 150.00 137.80 9.50 0005T / 1.4310 0048X 2
2V1 150.00 137.80 9.50 0025T / 1.4310 0051X 2
2V1 150.00 140.60 7.10 0005T / 1.4310 0048X 2
2V1 7.40 4.50 2.40 0003M / 1.4310 0049X 2
2V1 85.00 75.60 7.10 0025T / 1.4310 / VMQ 0054Y 2
2V1 300.00 287.80 9.50 0000T / 1.4310 0022X 2
2V1 80.00 70.60 7.10 0025T / 1.4310 / VMQ 0054Y 2
2V1 40.00 35.50 3.60 0025T / 1.4310 / VMQ 0054Y 2
2V1 40.50 34.30 4.80 0022T / 1.4310 0032X 2
2V1 16.00 11.50 3.60 0031T / 1.4310 0053X 2
2V1 10.50 7.60 2.40 0005T / 1.4310 0048X 2
2V1 16.00 11.50 3.60 0052T / 1.4310 0100X 2
2V1 243.00 233.60 7.10 0005T / 1.4310 0048X 2
2V1 80.00 70.60 7.10 0005T / 1.4310 0048X 1
2V1 63.00 53.60 7.10 0093T / 1.4310 0034X 2
2V1 63.00 56.80 4.80 0000T / 1.4310 0022X 2
2V1 63.00 56.80 4.80 0031T / 1.4310 0053X 2
2V1 194.00 184.60 7.10 0025T / 1.4310 / VMQ 0054Y 2
2V1 160.00 150.60 7.10 0005T / 1.4310 0048X 2
2V1 38.00 31.80 4.80 0005T / 1.4310 0048X 2
2V1 60.00 50.60 7.10 0003M / 1.4310 0049X 2
2V1 85.00 75.60 7.10 0025T / 1.4310 0051X 2
2V1 12.00 9.10 2.40 0089T / 1.4310 0021X 2
2V1 80.00 70.60 7.10 0031T / 2.4819 0188X 2
2V1 95.25 85.73 7.14 0003M / 1.4310 0049X 2
2V1 67.20 55.00 9.50 0005T / 1.4310 0048X 2
2V1 6.00 3.10 2.40 0003M / 1.4310 0049X 2
2V1 150.00 137.80 9.50 0003M / 2.4819 0067X 2
2V1 44.50 40.00 3.60 0025T / 1.4310 / VMQ 0054Y 2
2V1 60.00 50.60 7.10 0000T / 1.4310 0022X 2
2V1 39.00 32.80 4.80 0089T / 1.4310 0021X 2
2V1 40.00 33.80 4.80 0089T / 1.4310 0021X 2
2V1 300.00 287.80 9.50 0005T / 1.4310 0048X 2
2V1 155.00 142.80 9.50 0005T / 1.4310 0048X 2
2V1 73.10 63.70 7.10 0005T / 1.4310 0048X 2
2V1 70.00 60.60 7.10 0003M / 1.4310 / VMQ 0055Y 1
2V1 132.00 122.60 7.10 0093T / 1.4310 0034X 2
2V1 45.00 38.80 4.80 0031T / 2.4819 0188X 1
2V1 105.00 95.60 7.10 0005T / 1.4310 0048X 2
2V1 52.40 43.00 7.10 0005T / 1.4310 0048X 2
2V1 55.00 45.60 7.10 0005T / 1.4310 0048X 2
2V1 58.00 48.60 7.10 0089T / 1.4310 0021X 2
2V1 100.00 90.60 7.10 0005T / 1.4310 / VMQ 0052Y 2
2V1 145.00 135.60 7.10 0000T / 1.4310 0022X 2
2V1 70.00 60.60 7.10 0025T / 1.4310 / VMQ 0054Y 2
2V1 35.00 28.80 4.80 0089T / 1.4310 0021X 2
2V1 35.00 28.80 4.80 0005T / 1.4310 0048X 2
2V1 36.00 29.80 4.80 0005T / 1.4310 0048X 2
2V1 30.00 25.50 3.60 0025T / 1.4310 / VMQ 0054Y 2
2V1 30.00 25.50 3.60 0005T / 1.4310 0048X 2
2V1 20.00 15.50 3.60 0025T / 1.4310 0051X 1
2V1 20.50 16.00 3.60 0031T / 1.4310 0053X 2
2V1 20.70 16.20 3.60 0005T / 1.4310 0048X 2
2V1 21.00 16.50 3.60 0005T / 1.4310 0048X 2
2V1 25.00 18.80 4.80 0005T / 1.4310 0048X 2
2V1 25.00 18.80 4.80 0025T / 1.4310 0051X 2
2V1 25.00 18.80 4.80 0005T / 2.4819 0095X 1
2V1 25.00 18.80 4.80 0031T / 2.4819 0188X 2
2V1 25.00 20.50 3.60 0005T / 1.4310 0048X 2
2V1 125.00 112.80 9.50 0025T / 1.4310 0051X 2
2V1 60.00 53.80 4.80 0000T / 1.4310 0022X 2
2V1 32.00 25.80 4.80 0052T / 1.4310 / VMQ 0056Y 2
2V1 13.00 10.10 2.40 0005T / 1.4310 0048X 1
2V1 16.00 11.50 3.60 0005T / 1.4310 0048X 1
2V1 30.00 23.80 4.80 0005T / 1.4310 0048X 2
2V1 45.00 38.80 4.80 0005T / 1.4310 0048X 1
2V1 45.00 38.80 4.80 0031T / 1.4310 0053X 2
2V1 150.00 137.80 9.50 0025T / 1.4310 / VMQ 0054Y 2
2V1 18.00 13.50 3.60 0005T / 1.4310 0048X 2
2V1 175.00 162.80 9.50 0005T / 1.4310 0048X 2
2V1 75.00 65.60 7.10 0005T / 1.4310 0048X 2
2V1 76.00 66.60 7.10 0031T / 1.4310 0053X 2
2V1 65.00 55.60 7.10 0003M / 1.4310 0049X 2
2V1 12.50 8.00 3.60 0025T / 1.4310 0051X 2
2V1 13.00 10.10 2.40 0003M / 1.4310 0049X 2
2V1 19.00 14.50 3.60 0089T / 1.4310 0021X 2
2V1 85.00 75.60 7.10 0005T / 1.4310 0048X 1
2V1 32.00 25.80 4.80 0005T / 1.4310 0048X 2
2V1 46.00 36.60 7.10 0005T / 1.4310 0048X 2
2V1 6.00 3.10 2.40 0005T / 1.4310 0048X 2
2V1 7.00 4.10 2.40 0003M / 1.4310 0049X 2
2V1 7.60 4.70 2.40 0003M / 1.4310 0049X 2
2V1 8.00 5.10 2.40 0031T / 1.4310 0053X 2
2V1 8.00 5.10 2.40 0003M / 1.4310 0049X 2
2V1 8.70 5.80 2.40 0003M / 1.4310 0049X 2
2V1 10.00 7.10 2.40 0089T / 1.4310 0021X 2
2V1 100.00 90.60 7.10 0005T / 1.4310 0048X 2
2V1 100.00 90.60 7.10 0025T / 1.4310 0051X 2
2V1 30.00 23.80 4.80 0052T / 1.4310 0100X 2
2V1 75.00 65.60 7.10 0089T / 2.4819 0025X 2
2V1 52.00 42.60 7.10 0005T / 1.4310 0048X 1
2V1 50.00 40.60 7.10 0052T / 1.4310 / VMQ 0056Y 2
2V1 45.00 38.80 4.80 0089T / 1.4310 0021X 2
2V1 157.60 145.40 9.50 0093T / 1.4310 0034X 2
2V1 60.00 50.60 7.10 0005T / 1.4310 0048X 2
2V1 250.00 237.80 9.50 0005T / 1.4310 0048X 2
2V1 17.00 12.50 3.60 0005T / 1.4310 0048X 1
2V1 20.40 15.90 3.60 0005T / 1.4310 0048X 2
2V1 132.00 122.60 7.10 0025T / 1.4310 / VMQ 0054Y 2
2V1 134.00 124.60 7.10 0025T / 1.4310 / VMQ 0054Y 2
2V1 70.00 60.60 7.10 0005T / 1.4310 0048X 2
2V1 70.00 60.60 7.10 0025T / 1.4310 0051X 2
2V1 291.40 282.00 7.10 0005T / 1.4310 0048X 2
2V1 212.00 199.80 9.50 0005T / 1.4310 0048X 2
2V1 200.00 187.80 9.50 0025T / 1.4310 0051X 2
2V1 190.00 177.80 9.50 0005T / 1.4310 0048X 2
2V1 192.00 182.60 7.10 0025T / 1.4310 0051X 2
2V1 110.00 100.60 7.10 0025T / 1.4310 / VMQ 0054Y 2
2V1 120.00 110.60 7.10 0005T / 1.4310 0048X 2
2V1 83.00 73.60 7.10 0025T / 1.4310 / VMQ 0054Y 2
2V1 80.00 70.60 7.10 0093T / 1.4310 0034X 2
2V1 32.00 27.50 3.60 0025T / 1.4310 / VMQ 0054Y 2
2V1 70.00 60.60 7.10 0089T / 1.4310 0021X 2
2V1 60.00 50.60 7.10 0031T / 1.4310 0053X 2
2V1 50.00 40.60 7.10 0089T / 1.4310 0021X 2
2V1 50.00 40.60 7.10 0036T / 1.4310 0079X 2
2V1 50.00 40.60 7.10 0003M / 1.4310 0049X 2
2V1 45.00 38.80 4.80 0093T / 1.4310 0034X 2
2V1 40.00 33.80 4.80 0025T / 1.4310 0051X 2
2V1 40.00 33.80 4.80 0031T / 1.4310 0053X 2
2V1 18.00 13.50 3.60 0025T / 1.4310 / VMQ 0054Y 2
2V1 17.50 13.00 3.60 0003M / 1.4310 0049X 1
2V1 14.00 9.50 3.60 0089T / 1.4310 0021X 2
2V1 10.00 7.10 2.40 0022T / 1.4310 0032X 2
2V1 60.00 50.60 7.10 0025T / 1.4310 / VMQ 0054Y 2
2V1 40.00 33.80 4.80 0003M / 1.4310 0049X 2
2V1 6.00 3.10 2.40 0031T / 1.4310 0053X 2
