PTFE Lip Seal 1VO

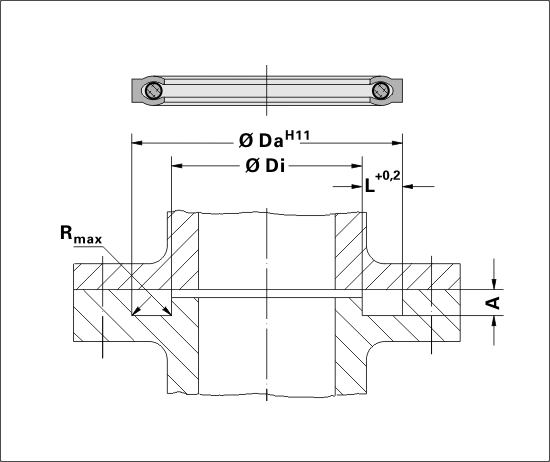

Axial seal with o-ring as prestress element, inside sealing for flanges.
Application Range
Pressure: ≤ 500 bar
Temperature: -40 °C / +200 °C
Standard Material: PTFE-comp.
Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.
Load product catalog
Are you missing materials or dimensions?
Feel free to contact us!
Our sealing experts will be happy to advise you!
Filter
| Da [mm] | Di [mm] | A [mm] | |
|---|---|---|---|
| Min: | |||
| Max: |
| Material selection | |
|---|---|
| Material: | |
| Material No. |
| V | |
|---|---|
| Profile | Da [mm] | Di [mm] | A [mm] | Material | Mat. No. | V | Quantity |
|---|
