PTFE Lip Seal 1V7

PTFE lip seal, inside sealing, with reinforced spring force and several sealing lips. (≤ 450 bar with backup-rings.)

Application Range
Pressure: ≤ 250 bar; ≤ 450 bar with back-up ring
Temperature: -120 °C / +260 °C
Sliding Speed: ≤ 10 m/s
Standard Material: PTFE-comp.

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Load product catalog Material Code
Material Code for PTFE Lips Seals with Spring
Material of Lip Seal Material of Profiled Spring Material of Filling Material Code
Material of Lip SealPTFE/Carbon (89T) Material of Profiled Spring1.4310 Material of Filling– Material Code0021X
Material of Lip Sealmod. PTFE (25T) Material of Profiled Spring1.4310 Material of Filling– Material Code0051X
Material of Lip Sealmod. PTFE (91T) Material of Profiled Spring1.4310 Material of Filling– Material Code0023X
Material of Lip SealPTFE, pure (00T) Material of Profiled Spring1.4310 Material of Filling– Material Code0022X
Material of Lip SealPTFE/Carbon (05T) Material of Profiled Spring1.4310 Material of Filling– Material Code0048X
Material of Lip SealPE (03M) Material of Profiled Spring1.4310 Material of Filling– Material Code0049X
Material of Lip SealPTFE/Ekonol (22T) Material of Profiled Spring1.4310 Material of Filling– Material Code0032X
Material of Lip SealPTFE/Carbon Fibre (31T) Material of Profiled Spring1.4310 Material of Filling– Material Code0053X
Material of Lip SealPTFE/PEEK (52T) Material of Profiled Spring1.4310 Material of Filling– Material Code0100X
Material of Lip SealPTFE/Graphite (90T) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0050Y
Material of Lip SealPTFE/Carbon Fibre (31T) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0051Y
Material of Lip SealPTFE/Carbon (05T) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0052Y
Material of Lip SealPTFE/Ekonol (22T) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0053Y
Material of Lip Sealmod. PTFE (25T) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0054Y
Material of Lip SealPE (03M) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0055Y
Material of Lip SealPTFE/PEEK (52T) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0056Y
Material of Lip SealTFM (36T) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0057Y

Are you missing materials or dimensions?

Feel free to contact us!

Our sealing experts will be happy to advise you!

+49(201)86606-0 or vk@techno-parts.de

Filter

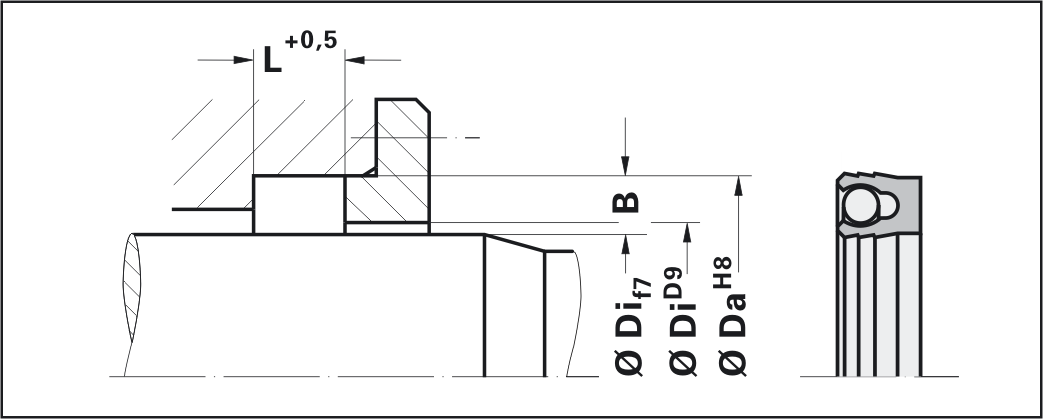

Di [mm] Da [mm] L [mm]
Min:
Max:
Material selection
Material:
Material No.
V
Profile Di [mm] Da [mm] L [mm] Material Mat. No. V Quantity
1V7 85.00 100.00 11.50 0005T / 1.4310 0048X 2
1V7 60.00 68.00 5.50 0088T / 1.4310 0064X 2
1V7 60.00 68.00 5.50 0005T / 1.4310 0048X 2
1V7 60.00 70.00 8.00 0005T / 1.4310 0048X 2
1V7 60.00 72.00 8.50 0031T / FKM 0074X 2
1V7 60.00 72.00 9.50 0088T / 1.4310 0064X 2
1V7 110.00 120.00 8.00 0005T / 1.4310 0048X 2
1V7 225.00 245.00 15.50 0005T / 1.4310 0048X 2
1V7 12.00 20.00 5.50 0005T / 1.4310 0048X 2
1V7 95.00 115.00 15.50 0005T / 1.4310 0048X 2
1V7 100.00 110.00 8.50 0000T / 1.4310 0022X 2
1V7 230.00 250.00 15.50 0005T / 1.4310 0048X 2
1V7 145.00 170.00 18.50 0005T / 1.4310 0048X 2
1V7 215.00 227.00 8.50 0005T / 1.4310 0048X 2
1V7 220.00 250.00 23.00 0005T / 1.4310 0048X 2
1V7 205.00 220.00 11.50 0005T / 1.4310 0048X 2
1V7 275.00 295.00 15.50 0005T / 1.4310 0048X 2
1V7 80.00 100.00 15.50 0088T / 1.4310 0064X 2
1V7 60.00 82.00 15.50 0000T / 1.4310 0022X 2
1V7 180.00 200.00 15.50 0005T / 1.4310 0048X 2
1V7 42.00 52.00 10.50 0025T / 1.4310 0051X 2
1V7 190.00 200.00 8.00 0005T / 1.4310 0048X 2
1V7 200.00 215.00 11.50 0005T / 1.4310 0048X 2
1V7 200.00 220.00 15.50 0088T / 1.4310 0064X 2
1V7 175.00 190.00 11.50 0005T / 1.4310 0048X 2
1V7 145.85 171.50 18.50 0005T / 1.4310 0048X 2
1V7 115.00 130.00 12.00 0088T / 1.4310 0064X 2
1V7 32.00 44.00 8.50 0005T / 1.4310 0048X 2
1V7 32.00 48.00 11.50 0005T / 1.4310 0048X 2
1V7 35.00 45.00 9.00 0005T / 1.4310 0048X 2
1V7 110.00 130.00 15.50 0088T / 1.4310 0064X 2
1V7 70.00 80.00 8.00 0005T / 1.4310 0048X 2
1V7 95.00 110.00 11.50 0005T / 1.4310 0048X 2
1V7 105.00 120.00 12.00 0088T / 1.4310 0064X 2
1V7 75.00 90.00 12.00 0088T / 1.4310 0064X 2
1V7 65.00 80.00 11.50 0005T / 1.4310 0048X 2
1V7 22.00 36.00 11.50 0025T / 1.4310 0051X 2
1V7 145.00 165.00 15.50 0005T / 1.4310 0048X 2
1V7 75.00 85.00 8.00 0005T / 1.4310 0048X 2
1V7 65.00 73.00 5.50 0005T / 1.4310 0048X 2
1V7 56.00 71.00 11.50 0005T / 1.4310 0048X 2
1V7 25.40 38.00 8.00 0005T / 1.4310 0048X 2
1V7 26.00 36.00 8.00 0003M / 1.4310 0049X 2
1V7 26.00 38.00 8.50 0005T / 1.4310 0048X 2
1V7 28.00 38.00 8.00 0005T / 1.4310 0048X 2
1V7 30.00 40.00 8.00 0005T / 1.4310 0048X 2
1V7 130.00 150.00 5.50 0005T / 1.4310 0048X 2
1V7 80.00 100.00 15.50 0005T / 1.4310 0048X 2
1V7 100.00 115.00 11.50 0005T / 1.4310 0048X 2
1V7 240.00 260.00 15.50 0088T / 1.4310 0064X 2
1V7 240.00 270.00 23.00 0088T / 1.4310 0064X 2
1V7 260.00 275.00 11.50 0005T / 1.4310 0048X 2
1V7 85.00 105.00 18.00 0005T / 1.4310 0048X 2
1V7 310.00 335.00 18.50 0005T / 1.4310 0048X 2
1V7 60.00 80.00 15.50 0005T / 1.4310 0048X 2
1V7 63.00 78.00 12.00 0005T / 1.4310 0048X 2
1V7 25.00 35.00 8.00 0005T / 1.4310 0048X 1
1V7 55.00 67.00 8.50 0005T / 1.4310 0048X 2
1V7 65.00 75.00 8.00 0005T / 1.4310 0048X 2
1V7 150.00 165.00 11.50 0005T / 1.4310 0048X 2
1V7 260.00 280.00 15.50 0088T / 1.4310 0064X 2
1V7 12.00 20.00 5.50 0003M / 1.4310 0049X 2
1V7 24.00 36.00 8.50 0005T / 1.4310 0048X 2
1V7 160.00 175.00 11.50 0005T / 1.4310 0048X 2
1V7 33.00 48.00 11.50 0003M / 1.4310 0049X 2
1V7 45.00 60.00 11.50 0005T / 1.4310 0048X 2
1V7 80.00 95.00 11.50 0005T / 1.4310 0048X 2
1V7 75.00 90.00 11.50 0088T / 1.4310 0064X 2
1V7 128.00 153.00 18.50 0005T / 1.4310 0048X 2
1V7 130.00 145.00 12.00 0088T / 1.4310 0064X 2
1V7 135.00 150.00 11.50 0005T / 1.4310 0048X 2
1V7 140.00 155.00 11.50 0005T / 1.4310 0048X 2
1V7 145.00 165.00 15.50 0088T / 1.4310 0064X 2
1V7 35.00 45.00 8.00 0005T / 1.4310 0048X 2
1V7 50.00 75.00 18.50 0005T / 1.4310 0048X 2
1V7 270.00 295.00 18.50 0005T / 1.4310 0048X 2
1V7 90.00 105.00 12.00 0088T / 1.4310 0064X 2
1V7 335.00 365.00 23.00 0093T / 1.4310 0034X 2
1V7 120.00 140.00 15.50 0005T / 1.4310 0048X 2
1V7 35.00 47.00 8.50 0025T / 1.4310 0051X 2
1V7 36.00 48.00 8.00 0005T / 1.4310 0048X 2
1V7 40.00 50.00 7.50 0004T / 1.4310 0062X 2
1V7 40.00 50.00 8.00 0005T / 1.4310 0048X 2
1V7 40.00 52.00 8.50 0088T / 1.4310 0064X 2
1V7 40.00 52.00 8.50 0025T / 2.4819 0076X 2
1V7 60.00 80.00 15.50 0000T / 1.4310 0022X 2
1V7 12.00 22.00 8.00 0025T / 1.4310 0051X 2
1V7 16.00 24.00 5.50 0005T / 1.4310 0048X 2
1V7 16.00 26.00 8.00 0005T / 1.4310 0048X 2
1V7 18.00 28.00 8.00 0005T / 1.4310 0048X 2
1V7 20.00 30.00 8.00 0005T / 1.4310 0048X 2
1V7 22.00 34.00 8.50 0025T / 1.4310 0051X 2
1V7 50.00 60.00 8.00 0005T / 1.4310 0048X 2
1V7 50.00 65.00 11.50 0005T / 1.4310 0048X 2
1V7 75.00 95.00 15.00 0088T / 1.4310 0064X 2
1V7 320.00 345.00 18.00 0088T / 1.4310 0064X 2
1V7 27.00 37.00 8.00 0003M / 1.4310 0049X 2
1V7 280.00 310.00 23.00 0005T / 1.4310 0048X 2
1V7 290.00 320.00 23.00 0088T / 1.4310 0064X 2
1V7 295.00 320.00 18.50 0005T / 1.4310 0048X 2
1V7 170.00 190.00 15.50 0005T / 1.4310 0048X 2
1V7 160.00 190.00 23.00 0005T / 1.4310 0048X 2
1V7 85.00 93.00 5.50 0088T / 1.4310 0064X 2
1V7 70.00 85.00 11.50 0005T / 1.4310 0048X 2
1V7 42.00 52.00 7.20 0025T / 1.4310 0051X 2
1V7 25.00 45.00 10.00 0000T / 1.4310 0022X 2
1V7 60.00 75.00 11.50 0005T / 1.4310 0048X 2
1V7 60.00 75.00 11.50 0088T / 1.4310 0064X 2
1V7 60.00 75.00 11.50 0025T / 2.4819 0076X 2
