PTFE Lip Seal 1V5

PTFE lip seal, for rotational movements, e.g. spray-painting/enamelling lines. Also available with silicon filling for easier sterilisation.

Application Range
Pressure: ≤ 150 bar
Temperature: -100 °C / +225 °C
Sliding Speed: ≤ 2 m/s
Standard Material: 0048X

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Load product catalog Material Code
Material Code for PTFE Lips Seals with Spring
Material of Lip Seal Material of Profiled Spring Material of Filling Material Code
Material of Lip SealPTFE/Carbon (89T) Material of Profiled Spring1.4310 Material of Filling– Material Code0021X
Material of Lip Sealmod. PTFE (25T) Material of Profiled Spring1.4310 Material of Filling– Material Code0051X
Material of Lip Sealmod. PTFE (91T) Material of Profiled Spring1.4310 Material of Filling– Material Code0023X
Material of Lip SealPTFE, pure (00T) Material of Profiled Spring1.4310 Material of Filling– Material Code0022X
Material of Lip SealPTFE/Carbon (05T) Material of Profiled Spring1.4310 Material of Filling– Material Code0048X
Material of Lip SealPE (03M) Material of Profiled Spring1.4310 Material of Filling– Material Code0049X
Material of Lip SealPTFE/Ekonol (22T) Material of Profiled Spring1.4310 Material of Filling– Material Code0032X
Material of Lip SealPTFE/Carbon Fibre (31T) Material of Profiled Spring1.4310 Material of Filling– Material Code0053X
Material of Lip SealPTFE/PEEK (52T) Material of Profiled Spring1.4310 Material of Filling– Material Code0100X
Material of Lip SealPTFE/Graphite (90T) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0050Y
Material of Lip SealPTFE/Carbon Fibre (31T) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0051Y
Material of Lip SealPTFE/Carbon (05T) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0052Y
Material of Lip SealPTFE/Ekonol (22T) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0053Y
Material of Lip Sealmod. PTFE (25T) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0054Y
Material of Lip SealPE (03M) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0055Y
Material of Lip SealPTFE/PEEK (52T) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0056Y
Material of Lip SealTFM (36T) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0057Y

Are you missing materials or dimensions?

Feel free to contact us!

Our sealing experts will be happy to advise you!

+49(201)86606-0 or vk@techno-parts.de

Filter

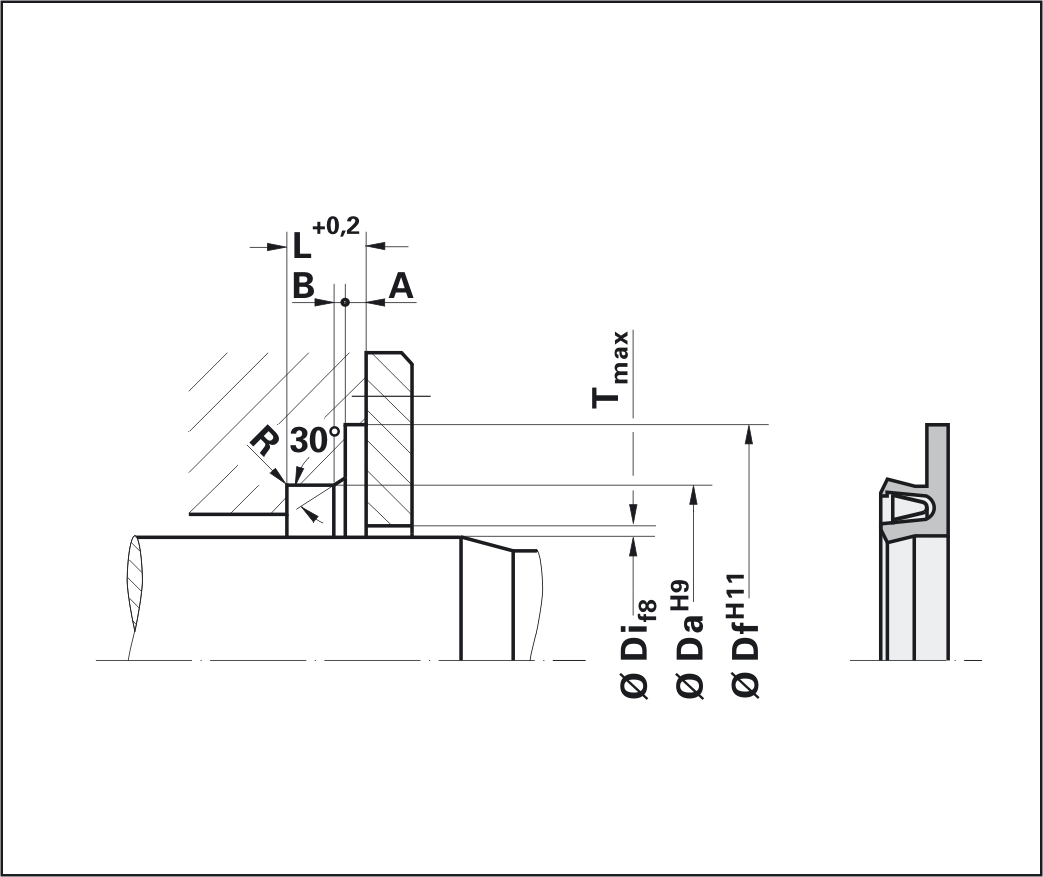

Di [mm] Da [mm] L [mm] Df [mm]
Min:
Max:
Material selection
Material:
Material No.
V
Profile Di [mm] Da [mm] L [mm] Df [mm] Material Mat. No. V Quantity
1V5 20.00 30.50 7.10 37.50 0008H / 1.4310 / VMQ 0058Y 2
1V5 185.00 195.50 7.10 202.50 0031T / 2.4819 0188X 2
1V5 25.00 32.00 4.80 37.50 0005T / 1.4310 / VMQ 0052Y 2
1V5 50.00 60.50 7.10 67.50 0025T / 1.4310 0051X 2
1V5 70.00 80.50 7.10 87.50 0031T / 1.4310 0053X 2
1V5 70.00 80.50 7.10 87.50 0004T / 1.4310 0062X 2
1V5 8.00 13.00 3.60 17.00 0005T / 1.4310 / VMQ 0052Y 2
1V5 75.00 82.00 4.80 87.50 0005T / 1.4310 0048X 2
1V5 160.00 170.50 7.10 177.50 0025T / 1.4310 0051X 2
1V5 20.00 25.00 3.60 29.00 0022T / 1.4310 0032X 2
1V5 230.00 240.50 7.10 247.50 0005T / 1.4310 0048X 2
1V5 28.00 38.50 7.10 45.50 0025T / 1.4310 0051X 2
1V5 110.00 120.50 7.10 127.50 0089T / 1.4310 0021X 2
1V5 8.45 13.00 3.60 17.45 0025T / 1.4310 0051X 2
1V5 10.00 15.00 3.60 19.00 0089T / 1.4310 0021X 2
1V5 10.00 15.00 3.60 19.00 0031T / 1.4310 0053X 2
1V5 10.00 15.00 3.60 19.00 0005T / 1.4310 0048X 2
1V5 160.00 170.50 7.10 177.50 0089T / 1.4310 0021X 2
1V5 40.00 50.50 7.10 57.50 0031T / 1.4310 0053X 1
1V5 90.00 100.50 7.10 107.50 0005T / 1.4310 0048X 2
1V5 56.00 66.50 7.10 73.50 0031T / 1.4310 0053X 2
1V5 280.00 290.50 7.10 297.50 0005T / 1.4310 0048X 2
1V5 900.00 914.00 9.50 922.00 0093T / 1.4310 0034X 2
1V5 170.00 180.50 7.10 187.50 0005T / 1.4310 0048X 2
1V5 85.00 95.50 7.10 102.50 0031T / 1.4310 0053X 2
1V5 8.00 13.00 3.60 17.00 0089T / 1.4310 0021X 2
1V5 8.00 13.00 3.60 17.00 0025T / 1.4310 0051X 2
1V5 50.00 57.00 4.80 62.50 0025T / 1.4310 0051X 2
1V5 170.00 180.50 7.10 187.50 0025T / 1.4310 0051X 2
1V5 15.00 20.00 3.60 24.00 0089T / 1.4310 0021X 2
1V5 12.70 19.70 4.80 25.20 0005T / 1.4310 0048X 2
1V5 180.00 190.50 7.10 197.50 0005T / 1.4310 0048X 2
1V5 5.00 10.00 3.60 14.00 0003M / 1.4310 0049X 2
1V5 55.00 65.50 7.10 72.50 0005T / 1.4310 0048X 2
1V5 85.00 95.50 7.10 102.50 0005T / 1.4310 0048X 2
1V5 85.00 95.50 7.10 102.50 0025T / 1.4310 0051X 2
1V5 90.00 100.50 7.10 107.50 0025T / 1.4310 / VMQ 0054Y 2
1V5 150.00 160.50 7.10 167.50 0005T / 1.4310 0048X 2
1V5 155.00 165.50 7.10 172.50 0031T / 1.4310 0053X 2
1V5 135.00 145.50 7.10 152.50 0089T / 1.4310 0021X 1
1V5 140.00 150.50 7.10 157.50 0031T / 1.4310 0053X 2
1V5 140.00 150.50 7.10 157.50 0088T / 1.4310 0064X 2
1V5 170.00 180.50 7.10 187.50 0031T / 2.4819 0188X 1
1V5 170.00 180.50 7.10 187.50 0031T / 1.4310 0053X 2
1V5 175.00 185.50 7.10 192.50 0005T / 1.4310 0048X 2
1V5 12.00 17.00 3.60 21.00 0093T / 1.4310 0034X 2
1V5 12.00 17.00 3.60 21.00 0005T / 1.4310 0048X 2
1V5 12.00 17.00 3.60 21.00 0022T / 1.4310 0032X 2
1V5 12.70 19.70 4.80 25.20 0005T / 1.4310 0048X 2
1V5 13.00 18.00 3.60 22.00 0005T / 1.4310 0048X 2
1V5 15.00 20.00 3.60 24.00 0005T / 1.4310 0048X 2
1V5 15.00 20.00 3.60 24.00 0052T / 1.4310 0100X 2
1V5 16.00 21.00 3.60 25.00 0005T / 1.4310 0048X 2
1V5 16.00 21.00 3.60 25.00 0003M / 1.4310 0049X 2
1V5 20.00 30.50 7.10 37.50 0052T / 1.4310 / VMQ 0056Y 2
1V5 120.00 130.50 7.10 137.50 0005T / 1.4310 0048X 1
1V5 11.00 16.00 3.60 20.00 0025T / 1.4310 0051X 2
1V5 32.00 39.00 4.80 44.50 0005T / 1.4310 0048X 2
1V5 29.00 36.00 4.80 41.50 0005T / 1.4310 0048X 2
1V5 30.00 37.00 4.80 42.50 0005T / 1.4310 0048X 1
1V5 34.00 44.50 7.10 51.50 0004T / 1.4310 0062X 2
1V5 35.00 42.00 4.80 47.50 0031T / 1.4310 0053X 2
1V5 35.00 42.00 4.80 47.50 0005T / 1.4310 / VMQ 0052Y 2
1V5 35.00 42.00 4.80 47.50 0025T / 1.4310 0051X 2
1V5 36.00 43.00 4.80 48.50 0000T / 1.4310 0022X 2
1V5 36.00 43.00 4.80 48.50 0005T / 1.4310 0048X 2
1V5 40.00 50.50 7.10 57.50 0008H / 1.4310 0055X 2
1V5 110.00 120.50 7.10 127.50 0005T / 1.4310 0048X 1
1V5 60.00 67.00 4.80 72.50 0005T / 1.4310 0048X 2
1V5 60.00 70.50 7.10 77.50 0005T / 1.4310 0048X 2
1V5 60.00 70.50 7.10 77.50 0004T / 1.4310 0062X 2
1V5 60.00 70.50 7.10 77.50 0088T / 1.4310 0064X 2
1V5 63.00 73.50 7.10 80.50 0089T / 1.4310 0021X 2
1V5 70.00 80.50 7.10 87.50 0005T / 1.4310 0048X 2
1V5 70.00 80.50 7.10 87.50 0025T / 1.4310 / VMQ 0054Y 2
1V5 50.00 60.50 7.10 67.50 0031T / 1.4310 0053X 2
1V5 50.00 60.50 7.10 67.50 0003M / 1.4310 0049X 2
1V5 40.00 50.50 7.10 57.50 0003M / 1.4310 0049X 2
1V5 200.00 210.50 7.10 217.50 0005T / 1.4310 0048X 2
1V5 160.00 170.50 7.10 177.50 0031T / 1.4310 0053X 2
1V5 25.00 32.00 4.80 37.50 0005T / 1.4310 0048X 2
1V5 80.00 90.50 7.10 97.40 0005T / 1.4310 0048X 1
1V5 20.00 25.00 3.60 29.00 0025T / 1.4310 0051X 2
1V5 20.00 27.00 4.80 32.50 0005T / 1.4310 0048X 2
1V5 20.00 27.00 4.80 32.50 0025T / 1.4310 0051X 2
1V5 20.00 27.00 4.80 32.50 PTFE / special steel 0024X 2
1V5 90.00 100.50 7.10 107.50 0031T / 1.4310 0053X 1
1V5 90.00 100.50 7.10 107.50 0089T / 1.4310 0021X 2
1V5 90.00 100.50 7.10 107.50 0031T / 2.4819 0188X 1
1V5 99.50 110.00 7.10 117.00 0005T / 1.4310 0048X 2
1V5 100.00 110.50 7.10 117.50 0005T / 1.4310 0048X 2
1V5 100.00 110.50 7.10 117.50 0025T / 1.4310 0051X 2
1V5 100.00 110.50 7.10 117.50 0031T / 1.4310 0053X 2
1V5 120.00 130.50 7.10 137.50 0025T / 1.4310 / VMQ 0054Y 1
1V5 120.00 130.50 7.10 137.50 0005T / 1.4310 / VMQ 0052Y 2
1V5 125.00 135.50 7.10 142.50 0031T / 1.4310 0053X 2
1V5 130.00 140.50 7.10 147.50 0005T / 1.4310 0048X 2
1V5 135.00 145.50 7.10 152.50 0031T / 1.4310 0053X 1
1V5 250.00 260.50 7.10 267.50 0025T / 1.4310 0051X 2
1V5 50.00 60.50 7.10 67.50 0005T / 1.4310 0048X 1
1V5 80.00 90.50 7.10 97.50 0031T / 1.4310 0053X 1
1V5 40.00 50.50 7.10 57.50 0052T / 1.4310 0100X 2
1V5 26.00 33.00 4.80 38.50 0005T / 1.4310 0048X 2
1V5 18.00 23.00 3.60 27.00 0005T / 1.4310 0048X 2
1V5 25.00 32.00 4.80 37.50 0052T / 1.4310 0100X 2
1V5 15.00 20.00 3.60 24.00 0003M / 1.4310 0049X 2
1V5 300.00 310.50 7.10 317.50 0005T / 1.4310 0048X 2
1V5 500.00 514.00 9.50 522.00 0093T / 1.4310 0034X 2
1V5 30.00 37.00 4.80 42.50 0089T / 1.4310 0021X 1
1V5 220.00 230.50 7.10 237.50 0005T / 1.4310 0048X 2
1V5 6.00 11.00 3.60 15.00 0003M / 1.4310 0049X 2
1V5 210.00 220.50 7.10 227.50 0025T / 2.4819 0076X 2
1V5 56.00 66.50 7.10 73.50 0089T / 1.4310 0021X 2
1V5 65.00 75.50 7.10 82.50 0005T / 1.4310 0048X 1
1V5 40.00 50.50 7.10 57.50 0005T / 1.4310 0048X 2
1V5 20.00 27.00 4.80 32.50 0025T / 1.4310 / VMQ 0054Y 2
1V5 140.00 150.50 7.10 157.50 0031T / 2.4819 0188X 1
1V5 58.00 68.50 7.10 75.50 0089T / 1.4310 0021X 2
1V5 50.00 60.50 7.10 67.50 0093T / 1.4310 0034X 2
1V5 20.00 27.00 4.80 32.50 0003M / 1.4310 0049X 1
1V5 20.00 25.00 3.60 29.00 0005T / 1.4310 0048X 2
1V5 68.00 78.50 7.10 85.50 0005T / 1.4310 0048X 2
