PTFE Lip Seal 1V4

PTFE lip seal, for flanges with inside pressure, with reinforced spring force.

Application Range
Pressure: ≤ 500 bar
Temperature: -200 °C / +260 °C
Standard Material: PTFE-comp.

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Load product catalog Material Code
Material Code for PTFE Lips Seals with Spring
Material of Lip Seal Material of Profiled Spring Material of Filling Material Code
Material of Lip SealPTFE/Carbon (89T) Material of Profiled Spring1.4310 Material of Filling– Material Code0021X
Material of Lip Sealmod. PTFE (25T) Material of Profiled Spring1.4310 Material of Filling– Material Code0051X
Material of Lip Sealmod. PTFE (91T) Material of Profiled Spring1.4310 Material of Filling– Material Code0023X
Material of Lip SealPTFE, pure (00T) Material of Profiled Spring1.4310 Material of Filling– Material Code0022X
Material of Lip SealPTFE/Carbon (05T) Material of Profiled Spring1.4310 Material of Filling– Material Code0048X
Material of Lip SealPE (03M) Material of Profiled Spring1.4310 Material of Filling– Material Code0049X
Material of Lip SealPTFE/Ekonol (22T) Material of Profiled Spring1.4310 Material of Filling– Material Code0032X
Material of Lip SealPTFE/Carbon Fibre (31T) Material of Profiled Spring1.4310 Material of Filling– Material Code0053X
Material of Lip SealPTFE/PEEK (52T) Material of Profiled Spring1.4310 Material of Filling– Material Code0100X
Material of Lip SealPTFE/Graphite (90T) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0050Y
Material of Lip SealPTFE/Carbon Fibre (31T) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0051Y
Material of Lip SealPTFE/Carbon (05T) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0052Y
Material of Lip SealPTFE/Ekonol (22T) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0053Y
Material of Lip Sealmod. PTFE (25T) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0054Y
Material of Lip SealPE (03M) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0055Y
Material of Lip SealPTFE/PEEK (52T) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0056Y
Material of Lip SealTFM (36T) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0057Y

Are you missing materials or dimensions?

Feel free to contact us!

Our sealing experts will be happy to advise you!

+49(201)86606-0 or vk@techno-parts.de

Filter

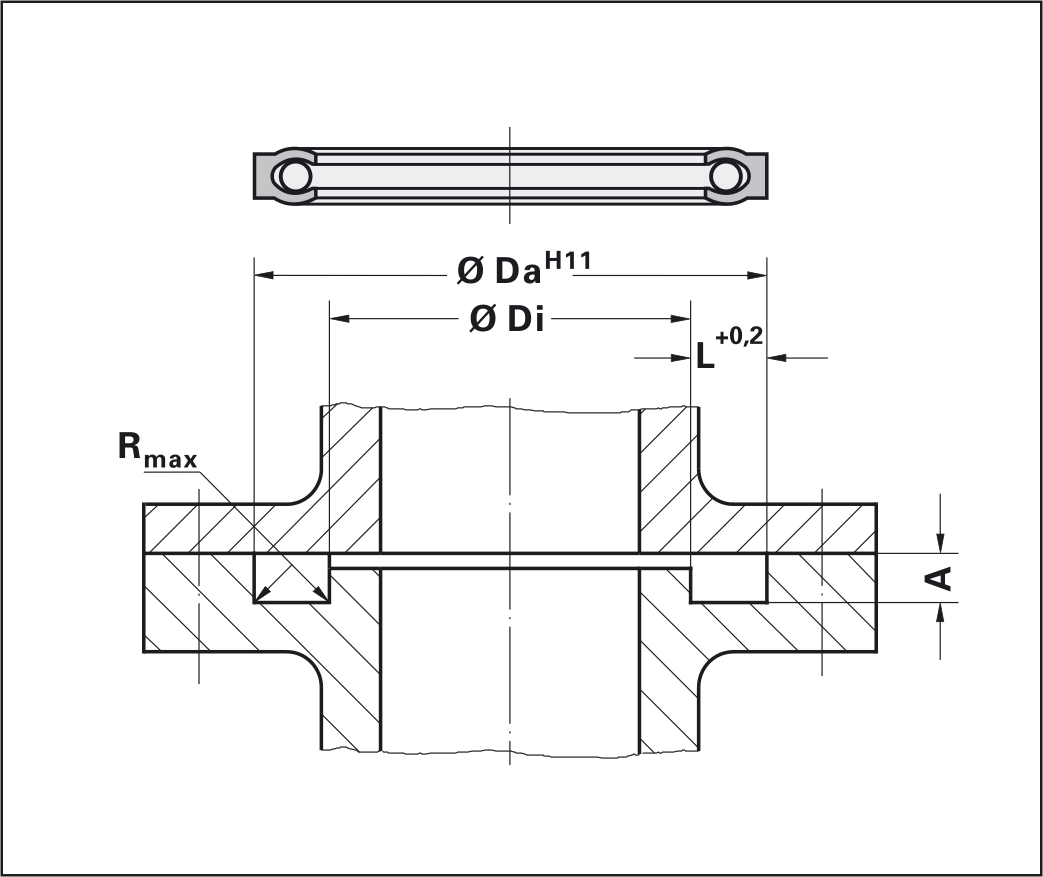

Da [mm] Di [mm] A [mm] L [mm]
Min:
Max:
Material selection
Material:
Material No.
V
Profile Da [mm] Di [mm] A [mm] L [mm] Material Mat. No. V Quantity
1V4 120.00 105.80 4.70 7.10 0022T / 2.4819 0097X 2
1V4 128.00 109.00 6.10 9.50 0005T / 1.4310 0048X 2
1V4 128.00 109.00 6.10 9.50 0005T / 2.4819 0095X 2
1V4 128.00 118.40 2.70 0.00 0000T / 2.4711 0107X 1
1V4 188.00 160.00 9.40 14.00 0005T / 1.4310 0048X 2
1V4 282.00 267.80 4.70 7.10 0005T / 1.4310 0048X 2
1V4 86.00 71.80 4.70 7.10 0005T / 1.4310 0048X 2
1V4 62.00 47.00 4.70 7.50 0005T / 1.4310 0048X 2
1V4 55.00 40.80 4.70 7.10 0025T / 1.4571 0084X 1
1V4 45.00 30.80 4.70 7.10 0006T / 1.4310 0066X 2
1V4 117.00 98.20 6.10 9.40 0003M / 1.4310 0049X 2
1V4 285.00 266.00 6.10 9.50 0005T / 2.4819 0095X 2
1V4 522.00 503.00 6.10 9.50 0005T / 2.4819 0095X 2
1V4 175.00 156.00 6.10 9.50 0052T / 1.4310 0100X 2
1V4 180.00 161.00 6.10 9.50 0005T / 1.4310 0048X 2
1V4 180.00 165.80 4.70 7.10 0005T / 1.4310 0048X 2
1V4 225.00 206.00 6.10 9.50 0005T / 1.4310 0048X 1
1V4 164.44 150.24 4.70 7.10 PTFE-Compound 0022T 2
1V4 374.00 355.00 6.10 9.50 0005T / 2.4819 0095X 2
1V4 156.00 137.00 6.10 9.50 0005T / 1.4310 0048X 2
1V4 55.00 40.80 4.70 7.10 0003M / 1.4310 0049X 1
1V4 154.00 139.80 4.70 7.10 0025T / 1.4310 0051X 2
1V4 86.00 71.80 4.70 7.10 0005T / 2.4819 0095X 1
1V4 90.00 80.40 3.10 4.80 0005T / 1.4310 0048X 2
1V4 93.00 78.80 4.70 7.10 0005T / 2.4819 0095X 2
1V4 93.00 78.80 4.70 7.10 0005T / 1.4310 0048X 2
1V4 93.00 78.80 4.70 7.10 0005T / 1.4310 0048X 2
1V4 95.00 80.80 4.70 7.10 0005T / 1.4310 0048X 1
1V4 98.00 83.80 4.70 7.10 0005T / 1.4310 0048X 1
1V4 100.00 85.80 4.70 7.10 0025T / 1.4310 0051X 2
1V4 100.00 85.80 4.70 7.10 0005T / 1.4310 0048X 2
1V4 100.00 85.80 4.70 7.10 0003M / 1.4310 0049X 2
1V4 73.00 58.80 4.70 7.10 0005T / 1.4310 0048X 2
1V4 32.00 25.52 2.63 0.00 0005T / FKM 0010X 2
1V4 55.00 45.40 3.10 4.80 0000T / 1.4310 0022X 2
1V4 100.00 90.40 3.10 4.80 0025T / 1.4310 0051X 2
1V4 102.00 87.80 4.70 7.10 0005T / 2.4819 0095X 2
1V4 102.00 87.80 4.70 7.10 0005T / 1.4310 0048X 1
1V4 86.00 71.80 4.70 7.10 0003M / 1.4310 0049X 1
1V4 95.00 85.40 3.10 4.80 0000T / 2.4711 0107X 2
1V4 100.00 90.40 3.10 4.80 0003M / 1.4310 0049X 2
1V4 62.00 43.00 6.10 9.50 0003M / 2.4711 0217X 1
1V4 126.00 111.80 4.70 7.10 0003M / 1.4310 0049X 2
1V4 184.00 165.00 6.10 9.50 0005T / 2.4819 0095X 2
1V4 30.00 25.20 1.45 2.40 0000T / 1.4310 0022X 2
1V4 39.00 24.80 4.70 7.10 0000T / 1.4310 0022X 2
1V4 225.00 210.80 4.70 7.10 0025T / 1.4310 0051X 2
1V4 215.00 175.00 12.50 20.00 0003M / 1.4310 0049X 2
1V4 57.00 42.80 4.70 7.10 0005T / 2.4819 0095X 2
1V4 70.00 55.80 4.70 7.10 0005T / 1.4310 0048X 2
1V4 46.00 38.80 2.25 3.60 0089T / 1.4310 0021X 2
1V4 188.00 160.00 9.40 14.00 0005T / 2.4711 0106X 2
1V4 231.00 212.00 6.10 9.50 0005T / 2.4819 0095X 2
1V4 231.00 212.00 6.10 9.50 0005T / 2.4819 0095X 2
1V4 231.00 212.00 6.10 9.50 0005T / 1.4310 0048X 2
1V4 252.10 242.50 3.10 4.80 0022T / 2.4711 0118X 2
1V4 380.00 361.00 6.10 9.50 0005T / 1.4310 0048X 2
1V4 410.00 391.00 6.10 9.50 0005T / 1.4310 0048X 2
1V4 428.00 409.00 6.10 9.50 0005T / 2.4819 0095X 2
1V4 461.20 447.00 4.70 7.10 0005T / 1.4310 0048X 2
1V4 480.00 461.00 6.10 9.50 0005T / 2.4819 0095X 2
1V4 546.20 532.00 4.70 7.10 0005T / 1.4310 0048X 1
1V4 52.00 37.80 4.70 7.10 0005T / 1.4571 0223X 2
1V4 32.00 22.40 3.10 4.80 0022T / 1.4310 0032X 2
1V4 164.44 150.24 4.70 7.10 0022T / 2.4819 0097X 1
1V4 169.00 159.40 2.70 0.00 0000T / 2.4711 0107X 1
1V4 344.00 325.00 6.10 9.50 0005T / 1.4310 0048X 2
1V4 624.00 605.00 6.10 9.50 0005T / 1.4310 0048X 1
1V4 374.00 355.00 6.10 9.50 0005T / 1.4310 0048X 2
1V4 865.00 837.00 9.40 14.00 0000T / 1.4310 0022X 2
1V4 1265.00 1237.00 9.40 14.00 0005T / 1.4310 0048X 2
1V4 184.00 165.00 6.10 9.50 0052T / 1.4310 0100X 2
1V4 19.00 11.80 2.25 3.60 0005T / 1.4310 0048X 2
1V4 338.00 319.00 5.90 9.50 0090T /1.4568 0218X 2
1V4 52.00 37.80 4.70 7.10 0025T / 1.4310 0051X 2
1V4 247.60 238.00 3.10 4.80 0005T / 2.4819 0095X 2
1V4 275.00 256.00 6.10 9.50 0005T / 2.4819 0095X 2
1V4 275.44 261.24 4.70 7.10 0022T / 2.4819 0097X 2
1V4 285.00 266.00 6.10 9.50 0005T / 1.4310 0048X 2
1V4 290.00 262.00 9.40 14.00 0005T / 2.4711 0106X 2
1V4 292.00 273.00 6.10 9.50 0005T / 1.4310 0048X 2
1V4 74.00 59.80 4.70 7.10 0005T / 1.4310 0048X 2
1V4 344.00 325.00 6.10 9.50 0005T / 2.4819 0095X 1
1V4 30.00 22.50 2.25 3.75 0022T / 1.4310 0032X 2
1V4 32.00 25.52 2.63 0.00 0005T / FKM 0010X 2
1V4 34.00 24.40 3.10 4.80 0022T / 1.4310 0032X 2
1V4 38.20 24.00 4.70 7.10 0025T / 1.4571 0084X 1
1V4 39.00 24.80 4.70 7.10 0005T / 1.4310 0048X 1
1V4 40.00 32.80 2.25 3.60 0005T / 1.4310 0048X 2
1V4 12.00 7.20 1.45 2.40 0025T / 1.4310 0051X 2
1V4 16.50 11.70 1.45 2.40 0025T / 1.4310 0051X 2
1V4 225.00 206.00 6.10 9.50 0005T / 2.4819 0095X 2
1V4 220.00 210.40 3.10 4.80 0022T / 2.4711 0118X 2
1V4 223.44 209.24 4.70 7.10 0022T / 2.4819 0097X 2
1V4 194.60 185.00 3.10 4.80 0005T / 1.4310 0048X 1
1V4 218.40 208.80 3.10 4.80 0022T / 2.4711 0118X 2
1V4 156.00 137.00 6.10 9.50 0005T / 2.4819 0095X 1
1V4 155.00 136.00 6.10 9.50 0005T / 1.4310 0048X 2
1V4 150.00 131.00 6.10 9.50 0022T / 2.4819 0097X 2
1V4 130.00 111.00 6.10 9.50 0005T / 1.4310 0048X 2
1V4 132.00 113.00 6.10 9.50 0005T / 2.4711 0106X 1
1V4 145.00 126.00 6.10 9.50 0005T / 1.4310 0048X 2
1V4 150.00 131.00 6.10 9.50 0005T / 1.4310 0048X 2
1V4 184.00 165.00 6.10 9.50 0005T / 1.4310 0048X 2
1V4 127.00 108.00 6.10 9.50 0005T / 1.4310 0048X 2
1V4 126.00 111.80 4.70 7.10 0005T / 1.4310 0048X 2
1V4 120.00 105.80 4.70 7.10 0005T / 2.4819 0095X 2
1V4 124.00 114.40 3.10 4.80 0025T / 1.4310 0051X 2
1V4 665.00 637.00 9.40 14.00 0000T / 1.4310 0022X 2
1V4 120.00 105.80 4.70 7.10 0003M / 1.4310 0049X 2
1V4 78.00 64.00 4.70 0.00 0005T / 1.4310 0048X 1
1V4 80.00 65.80 4.70 7.10 0005T / 1.4310 0048X 2
1V4 73.00 58.80 4.70 7.10 0005T / 2.4819 0095X 2
1V4 74.00 55.20 6.10 9.40 0005T / 1.4310 0048X 2
1V4 175.00 156.00 6.10 9.50 0088T / 1.4310 0064X 2
1V4 73.00 58.80 4.70 7.10 0005T / 1.4310 0048X 1
1V4 182.00 167.80 4.70 7.10 0005T / 1.4310 0048X 2
1V4 98.00 88.40 3.10 4.80 0005T / 1.4310 0048X 2
1V4 292.00 273.00 6.10 9.50 0003M / 1.4310 0049X 2
1V4 44.00 29.80 4.70 7.10 0003M / 2.4711 0217X 2
1V4 23.00 16.52 2.63 0.00 0005T / FKM 0010X 2
1V4 72.00 53.00 6.10 9.50 0005T / 1.4310 0048X 1
1V4 72.00 53.00 6.10 9.50 0003M / 1.4310 0049X 2
1V4 62.00 47.80 4.70 7.10 0005T / 1.4310 0048X 2
1V4 60.00 45.80 4.70 7.10 0025T / 1.4310 0051X 1
1V4 48.00 33.80 4.70 7.10 0025T / 2.4819 0076X 2
1V4 48.00 33.80 4.70 7.10 0005T / 1.4310 0048X 1
1V4 45.00 30.80 4.70 7.10 0005T / 1.4310 0048X 2
1V4 26.00 16.40 3.10 4.80 0022T / 1.4310 0032X 2
1V4 20.00 12.80 2.25 3.60 0005T / 1.4310 0048X 2
1V4 22.00 14.80 2.25 3.60 0005T / 1.4310 0048X 2
1V4 22.00 14.80 2.25 3.60 0031T / 1.4310 0053X 2
1V4 22.00 14.80 2.25 3.60 0008H / 1.4310 0055X 2
1V4 22.00 14.80 2.25 3.60 0031T / 1.4310 0053X 2
1V4 374.00 355.00 6.10 9.50 0003M / 1.4310 0049X 2
1V4 232.00 217.80 4.70 7.10 0005T / 1.4310 0048X 2
1V4 360.00 341.00 6.10 9.50 0005T / 1.4310 0048X 2
1V4 345.00 326.00 6.10 9.50 0005T / 1.4310 0048X 2
1V4 358.20 344.00 4.70 7.10 0005T / 1.4310 0048X 2
1V4 332.00 313.00 6.10 9.50 0005T / 2.4819 0095X 2
1V4 320.00 301.00 6.10 9.50 0025T / 1.4310 0051X 2
1V4 330.00 311.00 6.10 9.50 0005T / 1.4310 0048X 2
1V4 57.00 42.80 4.70 7.10 0003M / 1.4310 0049X 2
1V4 60.00 45.80 4.70 7.10 0005T / 1.4310 0048X 2
1V4 56.80 42.60 4.70 7.10 0017T / 1.4310 0043X 2
1V4 166.00 151.80 4.70 7.10 0022T / 2.4819 0097X 2
1V4 106.00 91.80 4.70 7.10 0005T / 1.4310 0048X 1
1V4 108.00 89.00 6.10 9.50 0005T / 1.4310 0048X 2
1V4 108.00 89.00 6.10 9.50 0005T / 2.4711 0106X 2
1V4 118.00 103.80 4.70 7.10 0005T / 1.4310 0048X 2
1V4 47.00 32.80 4.70 7.10 0025T / 1.4310 0051X 2
1V4 29.00 24.20 1.45 2.40 0025T / 1.4310 0051X 2
1V4 98.00 83.80 4.70 7.10 0003M / 1.4310 0049X 2
1V4 23.00 16.52 2.63 0.00 0005T / FKM 0010X 2
1V4 154.00 139.80 4.70 7.10 0003M / 1.4310 0049X 2
1V4 230.00 190.00 12.50 20.00 0003M / 2.4711 0217X 2
1V4 85.00 75.40 3.10 4.80 0005T / 1.4310 0048X 2
1V4 275.00 256.00 6.10 9.50 0005T / 1.4310 0048X 2
1V4 73.00 58.80 4.70 7.10 0003M / 1.4310 0049X 2
1V4 62.00 47.80 4.70 7.10 0093T / 2.4819 0104X 2
1V4 200.00 160.00 12.50 20.00 0003M / 1.4310 0049X 2
1V4 520.00 501.00 6.10 9.50 0005T / 1.4310 0048X 2
1V4 120.00 105.80 4.70 7.10 0005T / 1.4310 0048X 2
1V4 74.00 59.80 4.70 7.10 0005T / 2.4819 0095X 2
1V4 665.00 637.00 9.40 14.00 0005T / 1.4310 0048X 2
1V4 590.00 550.00 12.50 20.00 0005T / 1.4310 0048X 2
1V4 344.00 325.00 6.10 9.50 0003M / 1.4310 0049X 2
1V4 247.60 238.00 3.10 4.80 0005T / 1.4310 0048X 2
1V4 175.00 156.00 6.10 9.50 0005T / 1.4310 0048X 1
1V4 57.00 42.80 4.70 7.10 0005T / 1.4310 0048X 1
1V4 126.00 111.80 4.70 7.10 0005T / 2.4819 0095X 2
1V4 105.80 120.00 4.70 7.10 0005T / 1.4310 0048X 2
1V4 71.00 52.00 6.10 9.50 0025T / 1.4310 0051X 2
1V4 52.00 37.80 4.70 7.10 0005T / 1.4310 0048X 1
1V4 48.00 33.80 4.70 7.10 0005T / 2.4819 0095X 2
1V4 624.00 605.00 6.10 9.50 0005T / 2.4819 0095X 2
1V4 126.00 111.80 4.70 7.10 0003M / 2.4819 0067X 1
1V4 124.00 114.40 3.10 4.80 0003M / 1.4310 0049X 2
