PTFE Lip Seal 1V3

PTFE lip seal, for flanges with inside pressure, also available with silicon filling for easier sterilisation.

Application Range
Pressure: ≤ 350 bar
Temperature: -120 °C / +225 °C
Standard Material: PTFE-Comp.

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Load product catalog Material Code
Material Code for PTFE Lips Seals with Spring
Material of Lip Seal Material of Profiled Spring Material of Filling Material Code
Material of Lip SealPTFE/Carbon (89T) Material of Profiled Spring1.4310 Material of Filling– Material Code0021X
Material of Lip Sealmod. PTFE (25T) Material of Profiled Spring1.4310 Material of Filling– Material Code0051X
Material of Lip Sealmod. PTFE (91T) Material of Profiled Spring1.4310 Material of Filling– Material Code0023X
Material of Lip SealPTFE, pure (00T) Material of Profiled Spring1.4310 Material of Filling– Material Code0022X
Material of Lip SealPTFE/Carbon (05T) Material of Profiled Spring1.4310 Material of Filling– Material Code0048X
Material of Lip SealPE (03M) Material of Profiled Spring1.4310 Material of Filling– Material Code0049X
Material of Lip SealPTFE/Ekonol (22T) Material of Profiled Spring1.4310 Material of Filling– Material Code0032X
Material of Lip SealPTFE/Carbon Fibre (31T) Material of Profiled Spring1.4310 Material of Filling– Material Code0053X
Material of Lip SealPTFE/PEEK (52T) Material of Profiled Spring1.4310 Material of Filling– Material Code0100X
Material of Lip SealPTFE/Graphite (90T) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0050Y
Material of Lip SealPTFE/Carbon Fibre (31T) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0051Y
Material of Lip SealPTFE/Carbon (05T) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0052Y
Material of Lip SealPTFE/Ekonol (22T) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0053Y
Material of Lip Sealmod. PTFE (25T) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0054Y
Material of Lip SealPE (03M) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0055Y
Material of Lip SealPTFE/PEEK (52T) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0056Y
Material of Lip SealTFM (36T) Material of Profiled Spring1.4310 Material of FillingSilicone Material Code0057Y

Are you missing materials or dimensions?

Feel free to contact us!

Our sealing experts will be happy to advise you!

+49(201)86606-0 or vk@techno-parts.de

Filter

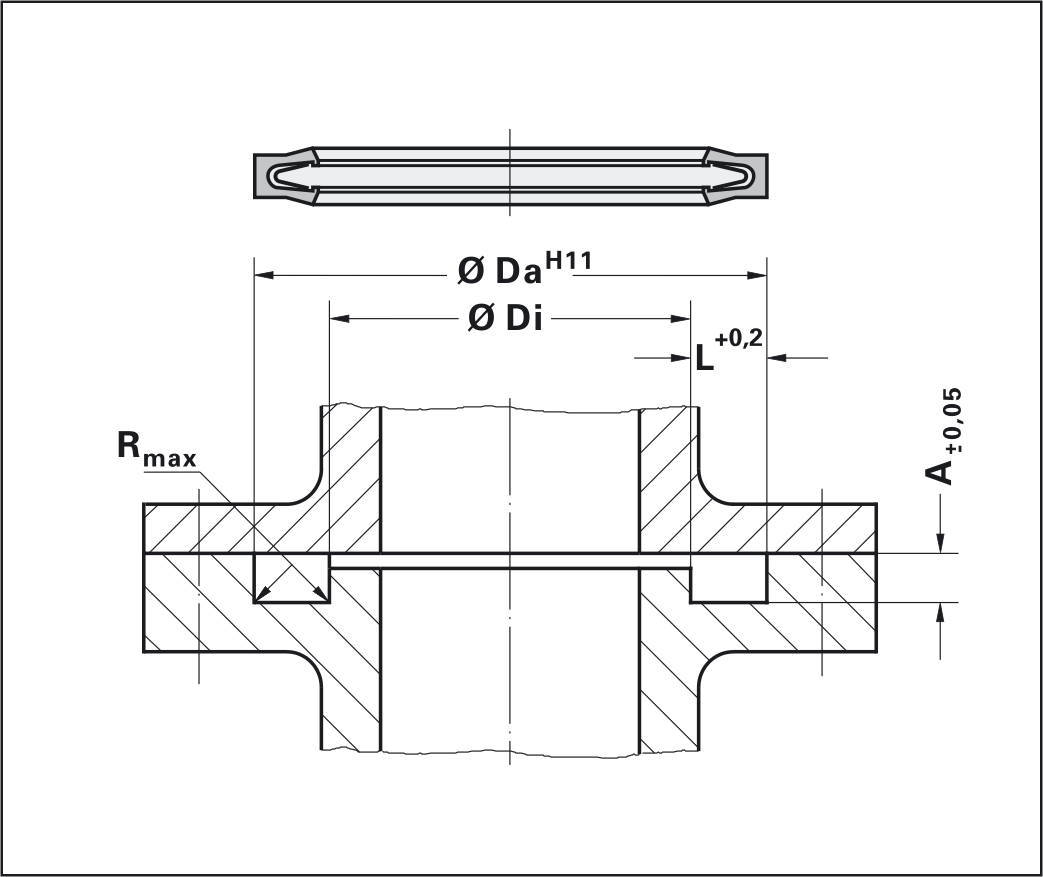

Da [mm] Di [mm] A [mm] L [mm]
Min:
Max:
Material selection
Material:
Material No.
V
Profile Da [mm] Di [mm] A [mm] L [mm] Material Mat. No. V Quantity
1V3 175.00 156.00 6.10 9.50 0005T / 1.4310 0048X 2
1V3 428.00 400.00 9.40 14.00 0005T / 1.4310 0048X 2
1V3 275.00 256.00 6.10 9.50 0005T / 1.4310 0048X 2
1V3 138.00 123.80 4.70 7.10 0025T / 1.4310 / VMQ 0054Y 2
1V3 86.00 71.80 4.70 7.10 0025T / 1.4310 / VMQ 0054Y 2
1V3 63.00 53.40 3.10 4.80 0005T / 1.4310 0048X 2
1V3 120.00 105.80 4.70 7.10 0005T / 1.4310 0048X 2
1V3 175.00 156.00 6.10 9.50 0052T / 1.4310 0100X 2
1V3 118.00 100.50 4.70 0.00 PTFE-Compound 0025T 1
1V3 120.00 105.80 4.70 7.10 0003M / 1.4310 0049X 2
1V3 62.00 52.40 3.10 4.80 0005T / 1.4310 0048X 2
1V3 62.00 47.80 4.70 7.10 0005T / 1.4310 / VMQ 0052Y 1
1V3 126.00 111.80 4.70 7.10 0005T / 2.4819 0095X 2
1V3 130.00 115.80 4.70 7.10 0052T / 1.4310 0100X 2
1V3 410.00 391.00 6.10 9.50 0005T / 1.4310 0048X 2
1V3 169.00 150.00 6.10 9.50 0025T / 1.4310 / VMQ 0054Y 2
1V3 38.00 28.40 3.10 4.80 0005T / 1.4310 0048X 2
1V3 520.00 501.00 6.10 9.50 0005T / 1.4310 0048X 2
1V3 73.00 58.80 4.70 7.10 0005T / 1.4310 0048X 1
1V3 73.00 58.80 4.70 7.10 0025T / 1.4310 / VMQ 0054Y 2
1V3 74.00 59.80 4.70 7.10 0005T / 1.4310 0048X 2
1V3 74.00 59.80 4.70 7.10 0005T / 2.4819 0095X 2
1V3 76.00 61.80 4.70 7.10 0005T / 1.4310 0048X 2
1V3 190.00 162.00 9.40 14.00 0005T / 2.4711 0106X 2
1V3 202.00 183.00 6.10 9.50 0005T / 1.4310 0048X 2
1V3 204.00 189.80 4.70 7.10 0000T / 1.4310 0022X 2
1V3 220.00 201.00 6.10 9.50 0005T / 1.4310 0048X 2
1V3 20.00 13.52 2.63 0.00 0005T / FKM 0010X 2
1V3 80.00 65.80 4.70 7.10 0091T / special steel 0026X 2
1V3 225.00 206.00 6.10 9.50 0005T / 1.4310 0048X 2
1V3 120.00 105.80 4.70 7.10 0025T / 1.4310 / VMQ 0054Y 2
1V3 84.00 69.80 4.70 7.10 0025T / 1.4310 / VMQ 0054Y 2
1V3 225.00 206.00 6.10 9.50 0005T / 1.4310 0048X 2
1V3 184.00 165.00 6.10 9.50 0005T / 2.4819 0095X 2
1V3 210.00 191.00 6.10 9.50 0025T / 2.4819 0076X 2
1V3 95.00 85.40 3.10 4.80 0000T / 1.4310 0022X 2
1V3 64.60 55.00 3.10 4.80 0025T / 1.4310 / VMQ 0054Y 2
1V3 80.00 65.80 4.70 7.10 0005T / 1.4310 0048X 2
1V3 68.00 53.80 4.70 7.10 0005T / 1.4310 0048X 2
1V3 62.00 47.80 4.70 7.10 0025T / 1.4310 / VMQ 0054Y 2
1V3 86.00 71.80 4.70 7.10 0005T / 1.4310 0048X 1
1V3 522.00 503.00 6.10 9.50 0005T / 2.4819 0095X 2
1V3 624.00 605.00 6.10 9.50 0005T / 1.4310 0048X 2
1V3 20.00 13.52 2.63 0.00 0005T / FKM 0010X 2
1V3 150.00 131.00 6.10 9.50 0005T / 1.4310 0048X 1
1V3 150.00 131.00 6.10 9.50 0005T / 1.4310 / VMQ 0052Y 2
1V3 285.00 266.00 6.10 9.50 0005T / 1.4310 0048X 2
1V3 330.00 311.00 6.10 9.50 0005T / 1.4310 0048X 2
1V3 330.00 311.00 6.10 9.50 0005T / 1.4310 0048X 2
1V3 360.00 341.00 6.10 9.50 0005T / 1.4310 0048X 2
1V3 370.00 351.00 6.10 9.50 0000T / 1.4310 0022X 2
1V3 231.00 212.00 6.10 9.50 0005T / 1.4310 0048X 2
1V3 58.00 48.40 3.10 4.80 0005T / 1.4310 0048X 2
1V3 250.00 222.00 9.40 14.00 0052T / 1.4310 0100X 2
1V3 95.00 85.40 3.10 4.80 0025T / 1.4310 0051X 2
1V3 98.00 83.80 4.70 7.10 0005T / 1.4310 0048X 1
1V3 102.00 87.80 4.70 7.10 0005T / 2.4819 0095X 2
1V3 102.00 87.80 4.70 7.10 0005T / 1.4310 0048X 2
1V3 109.00 94.80 4.70 7.10 0005T / 1.4310 0048X 2
1V3 110.00 83.00 9.50 13.50 0005T / 1.4310 0048X 2
1V3 114.00 98.00 4.70 8.00 0089T / 1.4310 0021X 2
1V3 114.00 103.80 3.10 5.10 0005T / 1.4310 0048X 2
1V3 120.00 105.80 4.70 0.00 0005T / 1.4310 0048X 1
1V3 98.00 83.80 4.70 7.10 0025T / 1.4310 / VMQ 0054Y 2
1V3 190.00 162.00 9.40 14.00 0052T / 1.4310 0100X 2
1V3 62.00 47.80 4.70 7.10 0005T / 1.4310 0048X 1
1V3 41.60 32.00 3.10 4.80 0025T / 1.4310 0051X 2
1V3 32.00 24.80 2.25 3.60 0005T / 1.4310 0048X 2
1V3 20.60 13.40 2.25 3.60 0005T / 1.4310 0048X 2
1V3 428.00 409.00 6.10 9.50 0005T / 1.4310 0048X 2
1V3 1075.00 1047.00 9.50 14.00 0000T / 2.4711 0107X 2
1V3 184.00 165.00 6.10 9.50 0025T / 1.4310 0051X 2
1V3 184.00 165.00 6.10 9.50 0025T / 1.4310 / VMQ 0054Y 2
1V3 43.00 25.50 4.70 0.00 PTFE-Compound 0025T 2
