PTFE Chevron Sealing MB

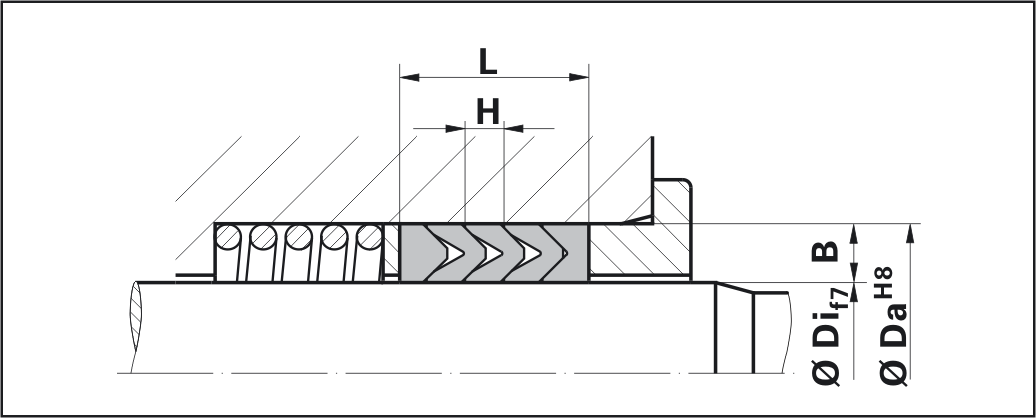

PTFE chevron sealing set to seal valves, pumps, piston rods and shafts.
Application Range
Temperature: -200 °C / +260 °C
Sliding Speed linear movements: ≤ 0,5 m/s
Sliding Speed linear movements, intermittent: ≤ 1,2 m/s
Sliding Speed rotational movements: ≤ 0,2 m/s
Sliding Speed rotational movements, intermittent: ≤ 0,4 m/s
Standard Material: PTFE-comp.
Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.
Load product catalogPTFE Chevron Sealing MB
Are you missing materials or dimensions?
Feel free to contact us!
Our sealing experts will be happy to advise you!
Filter
| Di [mm] | Da [mm] | H [mm] | [Stk] | |
|---|---|---|---|---|
| Min: | ||||
| Max: |
| Material selection | |
|---|---|
| Material: | |
| Material No. |
| V | |
|---|---|
| Profile | Di [mm] | Da [mm] | H [mm] | [Stk] | Material | Mat. No. | V | Quantity |
|---|---|---|---|---|---|---|---|---|
| MB | 42.00 | 54.00 | 28.20 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 150.00 | 170.00 | 40.50 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 160.00 | 180.00 | 40.50 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 30.00 | 42.00 | 28.20 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 23.00 | 35.00 | 20.40 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 65.00 | 77.00 | 20.40 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 24.00 | 36.00 | 24.30 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 21.00 | 33.00 | 20.40 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 32.00 | 44.00 | 20.40 | 3.00 | PTFE-Compound | 0000T | 2 |
|
| MB | 100.00 | 125.00 | 42.40 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 34.00 | 46.00 | 20.40 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 34.00 | 46.00 | 24.30 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 34.00 | 46.00 | 28.20 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 20.00 | 32.00 | 27.00 | 5.00 | PTFE-Compound | 0000T | 2 |
|
| MB | 105.00 | 125.00 | 47.00 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 10.00 | 20.00 | 23.80 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 130.00 | 155.00 | 42.40 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 48.00 | 68.00 | 47.00 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 58.00 | 70.00 | 24.30 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 65.00 | 85.00 | 34.00 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 22.00 | 34.00 | 20.40 | 3.00 | PTFE-Compound | 0025T | 2 |
|
| MB | 15.00 | 27.00 | 20.40 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 45.00 | 65.00 | 40.50 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 13.00 | 25.00 | 28.20 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 40.00 | 52.00 | 20.40 | 3.00 | PTFE-Compound | 0000T | 2 |
|
| MB | 25.00 | 37.00 | 20.40 | 3.00 | PTFE-Compound | 0000T | 1 |
|
| MB | 40.00 | 65.00 | 50.50 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 150.00 | 170.00 | 47.00 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 32.00 | 44.00 | 16.50 | 2.00 | PTFE-Compound | 0000T | 2 |
|
| MB | 63.00 | 78.00 | 35.40 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 10.00 | 20.00 | 17.20 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 95.00 | 115.00 | 40.50 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 18.00 | 30.00 | 24.30 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 13.00 | 25.00 | 20.40 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 45.00 | 65.00 | 47.00 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 48.00 | 68.00 | 34.00 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 48.00 | 68.00 | 40.50 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 45.00 | 57.00 | 20.40 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 63.00 | 78.00 | 30.50 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 70.00 | 95.00 | 42.40 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 38.00 | 58.00 | 47.00 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 20.00 | 32.00 | 24.30 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 65.00 | 77.00 | 28.20 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 52.00 | 64.00 | 24.30 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 30.00 | 50.00 | 47.00 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 58.00 | 70.00 | 28.20 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 15.00 | 27.00 | 28.20 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 40.00 | 52.00 | 20.40 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 65.00 | 90.00 | 42.40 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 70.00 | 82.00 | 28.20 | 5.00 | PTFE-Compound | 0000T | 2 |
|
| MB | 15.00 | 27.00 | 24.30 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 50.00 | 70.00 | 27.50 | 2.00 | PTFE-Compound | 0000T | 2 |
|
| MB | 35.00 | 47.00 | 24.30 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 65.00 | 77.00 | 24.30 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 115.00 | 135.00 | 34.00 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 10.00 | 20.00 | 23.80 | 3.00 | PTFE-Compound | 0000T | 2 |
|
| MB | 45.00 | 60.00 | 30.50 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 50.00 | 80.00 | 61.00 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 28.00 | 40.00 | 20.40 | 3.00 | PTFE-Compound | 0000T | 2 |
|
| MB | 65.00 | 90.00 | 50.50 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 16.00 | 28.00 | 20.40 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 16.00 | 28.00 | 28.20 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 32.00 | 44.00 | 20.40 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 85.00 | 105.00 | 47.00 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 55.00 | 67.00 | 24.30 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 24.00 | 36.00 | 28.20 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 35.00 | 50.00 | 35.40 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 45.00 | 57.00 | 28.20 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 30.00 | 42.00 | 20.40 | 3.00 | PTFE-Compound | 0000T | 1 |
|
| MB | 12.00 | 22.00 | 20.50 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 125.00 | 145.00 | 34.00 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 120.00 | 140.00 | 47.00 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 140.00 | 160.00 | 40.50 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 12.00 | 24.00 | 20.40 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 65.00 | 85.00 | 40.50 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 65.00 | 85.00 | 47.00 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 60.00 | 85.00 | 50.50 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 36.00 | 48.00 | 28.20 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 60.00 | 80.00 | 47.00 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 60.00 | 80.00 | 31.00 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 35.00 | 47.00 | 20.40 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 45.00 | 65.00 | 34.00 | 3.00 | PTFE-Compound | 0000T | 2 |
|
| MB | 30.00 | 50.00 | 40.50 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 40.00 | 52.00 | 28.20 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 35.00 | 45.00 | 17.20 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 20.00 | 30.00 | 17.20 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 24.00 | 36.00 | 20.40 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 30.00 | 50.00 | 34.00 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 100.00 | 125.00 | 50.50 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 75.00 | 95.00 | 40.50 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 12.00 | 22.00 | 17.20 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 130.00 | 155.00 | 58.60 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 22.00 | 34.00 | 28.20 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 22.00 | 34.00 | 20.40 | 3.00 | PTFE-Compound | 0004T | 2 |
|
| MB | 16.00 | 24.00 | 13.50 | 3.00 | PTFE-Compound | 0006T | 2 |
|
| MB | 38.00 | 58.00 | 40.50 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 52.00 | 64.00 | 20.40 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 12.00 | 24.00 | 28.20 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 12.50 | 24.00 | 31.00 | 5.00 | PTFE-Compound | 0000T | 2 |
|
| MB | 22.00 | 34.00 | 20.40 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 8.00 | 18.00 | 30.00 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 110.00 | 130.00 | 47.00 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 115.00 | 135.00 | 40.50 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 115.00 | 135.00 | 47.00 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 120.00 | 140.00 | 34.00 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 120.00 | 140.00 | 40.50 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 10.00 | 22.00 | 24.30 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 70.00 | 82.00 | 24.30 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 70.00 | 95.00 | 58.60 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 72.00 | 92.00 | 34.00 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 72.00 | 92.00 | 47.00 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 75.00 | 95.00 | 34.00 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 80.00 | 95.00 | 25.60 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 80.00 | 95.00 | 30.50 | 4.90 | PTFE-Compound | 0005T | 2 |
|
| MB | 80.00 | 95.00 | 35.40 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 85.00 | 97.00 | 20.40 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 85.00 | 97.00 | 28.20 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 85.00 | 105.00 | 34.00 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 85.00 | 105.00 | 40.50 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 60.00 | 72.00 | 20.40 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 44.00 | 56.00 | 28.20 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 90.00 | 105.00 | 25.60 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 90.00 | 105.00 | 30.50 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 90.00 | 105.00 | 35.40 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 95.00 | 115.00 | 34.00 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 95.00 | 115.00 | 47.00 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 100.00 | 112.00 | 20.40 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 100.00 | 112.00 | 24.30 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 100.00 | 112.00 | 28.20 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 70.00 | 82.00 | 28.20 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 100.00 | 125.00 | 58.60 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 105.00 | 125.00 | 34.00 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 105.00 | 125.00 | 40.50 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 72.00 | 92.00 | 40.50 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 36.00 | 48.00 | 20.40 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 10.00 | 22.00 | 28.20 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 50.00 | 80.00 | 51.20 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 50.00 | 62.00 | 24.30 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 50.00 | 62.00 | 28.20 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 50.00 | 70.00 | 34.00 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 50.00 | 70.00 | 40.50 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 35.00 | 50.00 | 25.60 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 70.00 | 95.00 | 50.50 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 60.00 | 72.00 | 20.40 | 3.00 | PTFE-Compound | 0000T | 2 |
|
| MB | 20.00 | 30.00 | 23.80 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 18.00 | 30.00 | 20.40 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 125.00 | 145.00 | 40.50 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 60.00 | 72.00 | 28.20 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 60.00 | 80.00 | 40.50 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 60.00 | 85.00 | 58.60 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 63.00 | 78.00 | 25.60 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 180.00 | 200.00 | 47.00 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 50.00 | 62.00 | 20.40 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 110.00 | 130.00 | 34.00 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 30.00 | 42.00 | 20.40 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 75.00 | 95.00 | 47.00 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 45.00 | 57.00 | 24.30 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 140.00 | 160.00 | 34.00 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 58.00 | 70.00 | 20.40 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 110.00 | 130.00 | 40.50 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 16.00 | 24.00 | 14.00 | 0.00 | PTFE-Compound | 0000T | 1 |
|
| MB | 50.00 | 70.00 | 47.00 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 25.00 | 37.00 | 24.30 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 35.00 | 47.00 | 28.20 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 28.00 | 40.00 | 20.40 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 20.00 | 26.50 | 11.50 | 1.00 | PTFE-Compound | 0000T | 2 |
|
| MB | 60.00 | 80.00 | 34.00 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 13.00 | 25.00 | 24.30 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 130.00 | 155.00 | 50.50 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 12.00 | 22.00 | 23.80 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 70.00 | 82.00 | 28.20 | 5.00 | PTFE-Compound | 0000T | 2 |
|
| MB | 55.00 | 67.00 | 20.40 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 16.00 | 28.00 | 24.30 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 10.00 | 22.00 | 20.40 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 12.00 | 22.00 | 16.00 | 2.00 | PTFE-Compound | 0000T | 2 |
|
| MB | 160.00 | 180.00 | 34.00 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 32.00 | 42.00 | 17.20 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 45.00 | 60.00 | 35.40 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 65.00 | 90.00 | 58.60 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 70.00 | 82.00 | 20.40 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 48.00 | 68.00 | 40.50 | 4.00 | PTFE-Compound | 0000T | 2 |
|
| MB | 30.00 | 42.00 | 24.30 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 50.00 | 80.00 | 70.80 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 40.00 | 65.00 | 58.60 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 42.00 | 54.00 | 20.40 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 42.00 | 54.00 | 24.30 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 44.00 | 56.00 | 20.40 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 44.00 | 56.00 | 24.30 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 10.00 | 18.00 | 30.00 | 3.00 | PTFE-Compound | 0000T | 2 |
|
| MB | 85.00 | 97.00 | 24.30 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 52.00 | 64.00 | 28.20 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 32.00 | 42.00 | 20.50 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 32.00 | 42.00 | 23.80 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 16.00 | 26.00 | 23.80 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 200.00 | 220.00 | 34.00 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 200.00 | 220.00 | 40.50 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 200.00 | 220.00 | 47.00 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 180.00 | 200.00 | 40.50 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 180.00 | 200.00 | 34.00 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 35.00 | 50.00 | 30.50 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 20.00 | 32.00 | 28.20 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 26.00 | 41.00 | 35.40 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 140.00 | 160.00 | 47.00 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 150.00 | 170.00 | 34.00 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 125.00 | 145.00 | 47.00 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 60.00 | 72.00 | 24.30 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 55.00 | 67.00 | 28.20 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 45.00 | 60.00 | 25.60 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 40.00 | 60.00 | 45.00 | 5.00 | PTFE-Compound | 0093T | 2 |
|
| MB | 40.00 | 65.00 | 42.40 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 40.00 | 52.00 | 24.30 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 38.00 | 58.00 | 34.00 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 12.00 | 24.00 | 24.30 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 28.00 | 40.00 | 28.20 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 28.00 | 40.00 | 24.30 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 28.00 | 40.00 | 16.50 | 2.00 | PTFE-Compound | 0000T | 2 |
|
| MB | 26.00 | 41.00 | 30.50 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 26.00 | 41.00 | 25.60 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 25.00 | 37.00 | 28.20 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 23.00 | 35.00 | 24.30 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 23.00 | 35.00 | 28.20 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 22.00 | 34.00 | 20.40 | 3.00 | PTFE-Compound | 0000T | 2 |
|
| MB | 21.00 | 33.00 | 24.30 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 21.00 | 33.00 | 28.20 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 12.00 | 20.00 | 22.00 | 5.00 | PTFE-Compound | 0000T | 2 |
|
| MB | 20.00 | 32.00 | 20.40 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 20.00 | 32.00 | 19.60 | 2.00 | PTFE-Compound | 0000T | 2 |
|
| MB | 20.00 | 30.00 | 20.50 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 20.00 | 30.00 | 17.20 | 3.00 | PTFE-Compound | 0000T | 2 |
|
| MB | 18.00 | 30.00 | 28.20 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 16.00 | 26.00 | 17.20 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 16.00 | 26.00 | 20.50 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 16.00 | 26.00 | 17.20 | 3.00 | PTFE-Compound | 0025T | 2 |
|
| MB | 16.00 | 24.00 | 13.50 | 3.00 | PTFE-Compound | 0000T | 2 |
|
| MB | 14.00 | 22.00 | 15.80 | 4.00 | PTFE-Compound | 0000T | 2 |
|
| MB | 12.00 | 22.00 | 17.20 | 3.00 | PTFE-Compound | 0000T | 2 |
|
| MB | 60.00 | 85.00 | 42.40 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 45.00 | 65.00 | 34.00 | 3.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 25.00 | 37.00 | 20.40 | 3.00 | PTFE-Compound | 0005T | 1 |
|
| MB | 160.00 | 180.00 | 47.00 | 5.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 18.00 | 30.00 | 28.20 | 5.00 | PTFE-Compound | 0000T | 2 |
|
| MB | 10.00 | 20.00 | 20.50 | 4.00 | PTFE-Compound | 0005T | 2 |
|
| MB | 8.00 | 16.00 | 20.90 | 6.00 | PTFE-Compound | 0005T | 2 |
|
