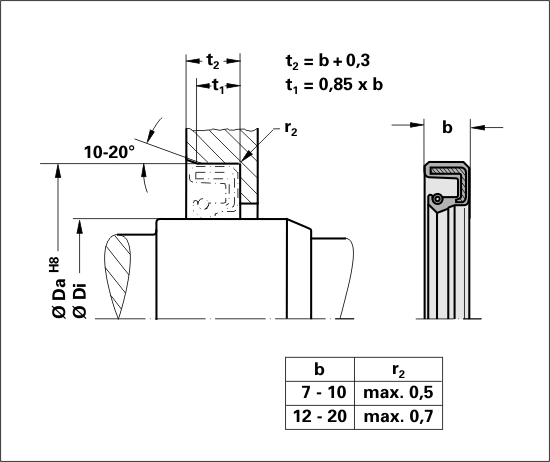

Shaft seal WD2
Shaft seal, DIN 3760, Form A up to 1,5 bar.
Application Range
Pressure: ≤ 1,5 bar
Temperature: -35 °C / +100 °C
Standard Material: NBR, FKM
Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.
Load product catalog
Are you missing materials or dimensions?
Feel free to contact us!
Our sealing experts will be happy to advise you!
Filter
| Di [mm] | Da [mm] | b [mm] | |
|---|---|---|---|
| Min: | |||
| Max: |
| Material selection | |
|---|---|
| Material: | |
| Material No. |
| V | |
|---|---|
| Profile | Di [mm] | Da [mm] | b [mm] | Material | Mat. No. | V | Quantity |
|---|
