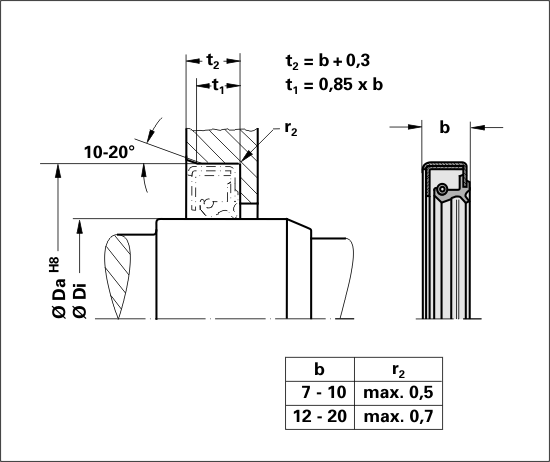

Shaft seal WCS

Shaft seal with metallic casing, cap and dust lip (formerly DIN 3760 Form CS).

Application Range
Pressure: ≤ 0,5 bar
Temperature: -35 °C / +100 °C
Standard Material: NBR

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Load product catalog

Are you missing materials or dimensions?

Feel free to contact us!

Our sealing experts will be happy to advise you!

+49(201)86606-0 or vk@techno-parts.de

Filter

Di [mm] Da [mm] b [mm]
Min:
Max:
Material selection
Material:
Material No.
V
Profile Di [mm] Da [mm] b [mm] Material Mat. No. V Quantity
WCS 530.00 580.00 22.00 NBR 0000K 2
WCS 117.47 152.40 12.70 NBR 0000K 2
WCS 320.00 360.00 18.00 FKM 0002K 2
WCS 98.00 130.00 13.00 NBR 0000K 2
WCS 65.00 90.00 10.00 NBR 0000K 2
WCS 30.00 47.00 10.00 NBR 0000K 2
WCS 180.00 215.00 15.00 NBR 0070N 2
WCS 150.00 180.00 13.00 NBR 0000K 2
WCS 50.00 80.00 16.00 NBR 0000K 2
WCS 85.00 110.00 13.00 NBR 0070N 1
WCS 125.00 150.00 13.00 NBR 0000K 2
WCS 90.00 110.00 13.00 NBR 0000K 2
WCS 150.00 180.00 15.00 NBR 0000K 2
WCS 600.00 640.00 22.00 NBR 0000K 1
WCS 140.00 170.00 15.00 NBR 0000K 2
WCS 110.00 140.00 13.00 NBR 0000K 2
WCS 70.00 90.00 12.00 FKM 0002K 2
WCS 90.00 118.00 12.00 NBR 0000K 2
WCS 70.00 90.00 12.00 NBR 0000K 2
WCS 340.00 372.00 16.00 NBR 0000K 2
WCS 250.00 290.00 16.00 NBR 0000K 2
WCS 75.00 105.00 12.00 NBR 0000K 2
WCS 240.00 280.00 16.00 NBR 0000K 2
WCS 90.00 130.00 13.00 EPDM 0004K 2
WCS 45.00 62.00 10.00 NBR 0000K 1
WCS 210.00 250.00 22.00 FKM 0002K 2
