Shaft seal WB0

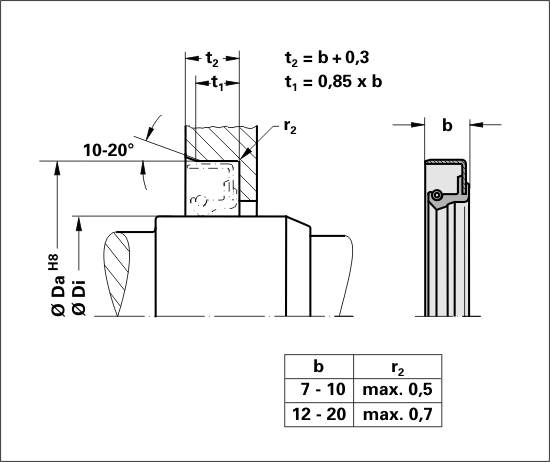

Shaft seal with metallic casing (formerly DIN 3760 Form B).
Application Range
Pressure: ≤ 0,5 bar
Temperature: -35 °C / +100 °C
Standard Material: NBR
Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.
Load product catalogShaft seal WB0
Are you missing materials or dimensions?
Feel free to contact us!
Our sealing experts will be happy to advise you!
Filter
| Di [mm] | Da [mm] | b [mm] | |
|---|---|---|---|
| Min: | |||
| Max: |
| Material selection | |
|---|---|
| Material: | |
| Material No. |
| V | |
|---|---|
| Profile | Di [mm] | Da [mm] | b [mm] | Material | Mat. No. | V | Quantity |
|---|---|---|---|---|---|---|---|
| WB0 | 50.00 | 62.00 | 7.00 | NBR | 0000K | 2 |
|
| WB0 | 340.00 | 372.00 | 16.00 | FKM | 0002K | 2 |
|
| WB0 | 50.00 | 75.00 | 10.00 | NBR | 0000K | 2 |
|
| WB0 | 25.00 | 35.00 | 7.00 | NBR | 0070N | 1 |
|
| WB0 | 16.00 | 30.00 | 7.00 | NBR | 0000K | 2 |
|
| WB0 | 85.00 | 120.00 | 12.00 | NBR | 0000K | 2 |
|
| WB0 | 85.00 | 105.00 | 12.00 | NBR | 0000K | 2 |
|
| WB0 | 15.00 | 24.00 | 7.00 | NBR | 0000K | 2 |
|
| WB0 | 35.00 | 50.00 | 10.00 | NBR | 0000K | 2 |
|
| WB0 | 30.00 | 42.00 | 7.00 | NBR | 0000K | 2 |
|
| WB0 | 28.00 | 40.00 | 7.00 | NBR | 0000K | 2 |
|
| WB0 | 50.00 | 65.00 | 8.00 | NBR | 0000K | 2 |
|
| WB0 | 23.81 | 41.27 | 9.52 | NBR | 0000K | 2 |
|
| WB0 | 38.00 | 72.00 | 6.00 | NBR | 0000K | 1 |
|
| WB0 | 110.00 | 130.00 | 10.00 | NBR | 0000K | 2 |
|
| WB0 | 30.00 | 50.00 | 7.00 | NBR | 0000K | 2 |
|
| WB0 | 440.00 | 470.00 | 20.00 | NBR | 0000K | 2 |
|
| WB0 | 120.00 | 140.00 | 13.00 | NBR | 0000K | 2 |
|
| WB0 | 32.00 | 47.00 | 7.00 | NBR | 0000K | 2 |
|
| WB0 | 145.00 | 170.00 | 15.00 | NBR | 0000K | 1 |
|
| WB0 | 40.00 | 62.00 | 12.00 | NBR | 0000K | 2 |
|
| WB0 | 45.00 | 65.00 | 8.00 | NBR | 0000K | 2 |
|
| WB0 | 55.00 | 70.00 | 10.00 | FKM | 0002K | 2 |
|
| WB0 | 38.00 | 50.00 | 7.00 | NBR | 0000K | 2 |
|
| WB0 | 26.00 | 47.00 | 10.00 | NBR | 0000K | 1 |
|
| WB0 | 85.00 | 105.00 | 10.00 | NBR | 0070N | 2 |
|
| WB0 | 25.00 | 32.00 | 5.00 | FKM | 0002K | 2 |
|
| WB0 | 95.00 | 110.00 | 9.00 | NBR | 0000K | 2 |
|
| WB0 | 62.00 | 80.00 | 10.00 | NBR | 0000K | 2 |
|
| WB0 | 19.00 | 27.00 | 6.00 | NBR | 0000K | 2 |
|
| WB0 | 35.00 | 55.00 | 8.00 | EPDM | 0004K | 2 |
|
| WB0 | 90.00 | 110.00 | 12.00 | NBR | 0000K | 2 |
|
| WB0 | 65.00 | 80.00 | 8.00 | NBR | 0070N | 1 |
|
| WB0 | 65.00 | 90.00 | 10.00 | FKM | 0002K | 2 |
|
| WB0 | 100.00 | 125.00 | 13.00 | NBR | 0000K | 2 |
|
| WB0 | 22.00 | 35.00 | 7.00 | NBR | 0000K | 2 |
|
| WB0 | 25.00 | 52.00 | 10.00 | NBR | 0000K | 2 |
|
| WB0 | 15.00 | 26.00 | 7.00 | NBR | 0000K | 1 |
|
| WB0 | 120.00 | 150.00 | 12.00 | EPDM | 0004K | 2 |
|
| WB0 | 38.00 | 54.00 | 11.00 | NBR | 0000K | 1 |
|
| WB0 | 88.00 | 110.00 | 13.00 | NBR | 0000K | 2 |
|
| WB0 | 48.00 | 62.00 | 8.00 | NBR | 0070N | 2 |
|
| WB0 | 35.00 | 62.00 | 5.00 | NBR | 0070N | 2 |
|
| WB0 | 160.00 | 190.00 | 15.00 | NBR | 0000K | 1 |
|
| WB0 | 100.00 | 120.00 | 12.00 | NBR | 0000K | 1 |
|
| WB0 | 13.00 | 22.00 | 5.00 | NBR | 0000K | 2 |
|
| WB0 | 140.00 | 170.00 | 15.00 | NBR | 0000K | 2 |
|
| WB0 | 85.00 | 120.00 | 12.00 | NBR | 0070N | 1 |
|
| WB0 | 35.00 | 80.00 | 12.00 | FKM | 0002K | 1 |
|
| WB0 | 35.00 | 47.00 | 7.00 | NBR | 0000K | 2 |
|
| WB0 | 120.00 | 150.00 | 12.00 | NBR | 0000K | 2 |
|
| WB0 | 45.00 | 80.00 | 8.00 | FKM | 0002K | 1 |
|
| WB0 | 12.00 | 24.00 | 7.00 | NBR | 0000K | 2 |
|
| WB0 | 50.00 | 72.00 | 8.00 | NBR | 0000K | 2 |
|
| WB0 | 28.00 | 35.00 | 4.00 | NBR | 0000K | 2 |
|
| WB0 | 40.00 | 52.00 | 8.00 | NBR | 0000K | 1 |
|
| WB0 | 530.00 | 580.00 | 20.00 | NBR | 0000K | 2 |
|
| WB0 | 100.00 | 120.00 | 12.00 | NBR | 0000K | 2 |
|
| WB0 | 16.00 | 24.00 | 6.00 | NBR | 0000K | 2 |
|
| WB0 | 190.00 | 220.00 | 15.00 | NBR | 0000K | 2 |
|
| WB0 | 220.00 | 250.00 | 15.00 | FKM | 0002K | 2 |
|
| WB0 | 35.00 | 45.00 | 7.00 | NBR | 0000K | 2 |
|
| WB0 | 340.00 | 384.00 | 20.00 | NBR | 0000K | 2 |
|
| WB0 | 350.00 | 380.00 | 16.00 | FKM | 0002K | 2 |
|
| WB0 | 150.00 | 190.00 | 15.00 | FKM | 0002K | 2 |
|
| WB0 | 140.00 | 170.00 | 12.00 | FKM | 0002K | 2 |
|
| WB0 | 110.00 | 130.00 | 12.00 | NBR | 0000K | 2 |
|
| WB0 | 115.00 | 135.00 | 13.00 | NBR | 0000K | 2 |
|
| WB0 | 105.00 | 130.00 | 13.00 | NBR | 0000K | 2 |
|
| WB0 | 105.00 | 125.00 | 12.00 | NBR | 0000K | 2 |
|
| WB0 | 100.00 | 120.00 | 12.00 | FKM | 0002K | 2 |
|
| WB0 | 100.00 | 120.00 | 8.00 | NBR | 0070N | 2 |
|
| WB0 | 90.00 | 110.00 | 8.00 | NBR | 0000K | 2 |
|
| WB0 | 80.00 | 100.00 | 13.00 | NBR | 0000K | 2 |
|
| WB0 | 70.00 | 90.00 | 13.00 | FKM | 0002K | 2 |
|
| WB0 | 70.00 | 85.00 | 8.00 | NBR | 0000K | 2 |
|
| WB0 | 65.00 | 90.00 | 12.00 | NBR | 0000K | 2 |
|
| WB0 | 65.00 | 80.00 | 8.00 | NBR | 0000K | 2 |
|
| WB0 | 45.00 | 60.00 | 7.00 | NBR | 0000K | 2 |
|
| WB0 | 42.00 | 55.00 | 8.00 | NBR | 0000K | 2 |
|
| WB0 | 40.00 | 60.00 | 10.00 | NBR | 0000K | 2 |
|
| WB0 | 40.00 | 55.00 | 8.00 | NBR | 0000K | 2 |
|
| WB0 | 37.00 | 62.00 | 8.00 | NBR | 0000K | 2 |
|
| WB0 | 32.00 | 45.00 | 7.00 | NBR | 0000K | 2 |
|
| WB0 | 25.00 | 40.00 | 7.00 | NBR | 0000K | 2 |
|
| WB0 | 20.00 | 40.00 | 7.00 | NBR | 0000K | 2 |
|
| WB0 | 20.00 | 37.00 | 6.00 | NBR | 0000K | 2 |
|
| WB0 | 20.00 | 30.00 | 7.00 | NBR | 0000K | 2 |
|
| WB0 | 16.00 | 24.00 | 7.00 | NBR | 0000K | 2 |
|
| WB0 | 15.00 | 37.00 | 10.00 | NBR | 0000K | 2 |
|
| WB0 | 14.00 | 24.00 | 7.00 | NBR | 0070N | 1 |
|
| WB0 | 14.00 | 24.00 | 7.00 | NBR | 0000K | 2 |
|
| WB0 | 13.00 | 22.00 | 5.00 | FKM | 0002K | 1 |
|
| WB0 | 11.00 | 24.00 | 4.00 | FKM | 0002K | 2 |
|
| WB0 | 20.00 | 35.00 | 10.00 | NBR | 0000K | 2 |
|
| WB0 | 50.00 | 62.00 | 7.00 | NBR | 0000K | 1 |
|
| WB0 | 105.00 | 130.00 | 9.50 | 2 |
|
||
| WB0 | 40.00 | 60.00 | 7.00 | FKM | 0002K | 2 |
|
| WB0 | 230.00 | 260.00 | 15.00 | NBR | 0000N | 1 |
|
| WB0 | 32.00 | 52.00 | 7.00 | NBR | 0000K | 2 |
|
| WB0 | 55.00 | 80.00 | 10.00 | NBR | 0000K | 2 |
|
| WB0 | 25.00 | 47.00 | 7.00 | NBR | 0070N | 2 |
|
| WB0 | 95.00 | 120.00 | 12.00 | NBR | 0000K | 2 |
|
| WB0 | 12.00 | 18.00 | 6.00 | NBR | 0000K | 2 |
|
| WB0 | 42.00 | 55.00 | 7.00 | NBR | 0000K | 2 |
|
| WB0 | 46.00 | 60.00 | 7.00 | NBR | 0000K | 2 |
|
| WB0 | 55.00 | 70.00 | 8.00 | NBR | 0070N | 1 |
|
| WB0 | 220.00 | 250.00 | 15.00 | NBR | 0000K | 2 |
|
| WB0 | 710.00 | 760.00 | 20.00 | NBR | 0000K | 2 |
|
| WB0 | 290.00 | 330.00 | 18.00 | FKM | 0002K | 1 |
|
| WB0 | 20.00 | 32.00 | 7.00 | NBR | 0000K | 2 |
|
| WB0 | 135.00 | 160.00 | 15.00 | NBR | 0000K | 1 |
|
| WB0 | 50.00 | 62.00 | 10.00 | NBR | 0070N | 1 |
|
| WB0 | 260.00 | 280.00 | 16.00 | FKM | 0002K | 2 |
|
| WB0 | 100.00 | 120.00 | 13.00 | NBR | 0070N | 1 |
|
| WB0 | 15.00 | 26.00 | 7.00 | NBR | 0070N | 1 |
|
| WB0 | 220.00 | 250.00 | 15.00 | NBR | 0070N | 2 |
|
| WB0 | 54.00 | 80.00 | 12.00 | NBR | 0000K | 2 |
|
| WB0 | 15.00 | 28.00 | 7.00 | NBR | 0000K | 2 |
|
| WB0 | 45.00 | 55.00 | 7.00 | NBR | 0000K | 2 |
|
| WB0 | 15.00 | 25.00 | 5.00 | NBR | 0000K | 2 |
|
| WB0 | 20.00 | 35.00 | 10.00 | NBR | 0000K | 1 |
|
| WB0 | 70.00 | 90.00 | 10.00 | NBR | 0000K | 1 |
|
| WB0 | 22.00 | 35.00 | 7.00 | NBR | 0070N | 1 |
|
| WB0 | 50.00 | 80.00 | 8.00 | NBR | 0000K | 1 |
|
| WB0 | 260.00 | 300.00 | 20.00 | NBR | 0000K | 2 |
|
| WB0 | 440.00 | 480.00 | 20.00 | NBR | 0000K | 2 |
|
| WB0 | 50.00 | 65.00 | 8.00 | FKM | 0002K | 2 |
|
| WB0 | 133.35 | 158.75 | 14.29 | NBR | 0070N | 1 |
|
| WB0 | 70.00 | 100.00 | 10.00 | NBR | 0000K | 1 |
|
| WB0 | 40.00 | 52.00 | 7.00 | NBR | 0000K | 2 |
|
| WB0 | 140.00 | 160.00 | 13.00 | NBR | 0000K | 2 |
|
| WB0 | 55.00 | 80.00 | 10.00 | NBR | 0000K | 1 |
|
| WB0 | 35.00 | 45.00 | 7.00 | NBR | 0000K | 1 |
|
| WB0 | 48.00 | 62.00 | 8.00 | NBR | 0000K | 1 |
|
| WB0 | 100.00 | 115.00 | 9.00 | NBR | 0000K | 2 |
|
| WB0 | 40.00 | 55.00 | 10.00 | NBR | 0000K | 2 |
|
| WB0 | 20.00 | 30.00 | 5.00 | NBR | 0070N | 1 |
|
| WB0 | 63.00 | 83.00 | 12.00 | NBR | 0000K | 2 |
|
| WB0 | 200.00 | 230.00 | 15.00 | NBR | 0000K | 2 |
|
| WB0 | 160.00 | 190.00 | 13.00 | NBR | 0000K | 2 |
|
| WB0 | 48.00 | 65.00 | 10.00 | NBR | 0000K | 2 |
|
| WB0 | 410.00 | 450.00 | 20.00 | FKM | 0002K | 2 |
|
| WB0 | 20.00 | 35.00 | 7.00 | NBR | 0070N | 1 |
|
| WB0 | 17.00 | 35.00 | 8.00 | NBR | 0000K | 2 |
|
| WB0 | 130.00 | 150.00 | 10.00 | NBR | 0000K | 2 |
|
| WB0 | 12.00 | 22.00 | 7.00 | NBR | 0000K | 2 |
|
| WB0 | 10.00 | 17.00 | 5.00 | NBR | 0000K | 2 |
|
| WB0 | 53.93 | 73.03 | 9.52 | NBR | 0000K | 2 |
|
| WB0 | 18.00 | 28.00 | 7.00 | NBR | 0000K | 2 |
|
| WB0 | 24.00 | 35.00 | 7.00 | NBR | 0000K | 2 |
|
