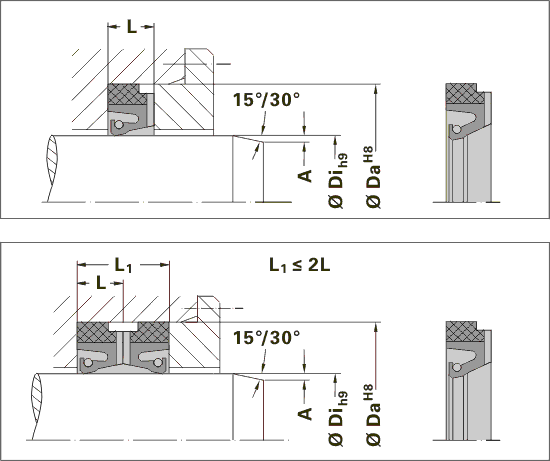

Fabric shaft seal WG7
Fabric shaft seal for heavy machine construction with radial lubrication grooves and lubrication groove on circumference, similar to WG5.
Versions:
WG7-A (standard)
WG7-B (covered spring)
WG7-C (friction optimised sealing lip)
WG7-D (covered spring and friction optimised sealing lip)
Application Range
Pressure: ≤ 0,5 bar
Sliding Speed: ≤ 15 m/s (NBR)
Temperature:
-30 °C / +100 °C (+120)* (NBR/Fabric)
-40 °C / +150 °C (+175)* (HNBR/Fabric)
-50 °C / +200 °C (+250)* (VMQ/Fabric)
-20 °C / +200 °C (+250)* (FKM/Fabric)
* temporarily
Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.
Load product catalogFabric shaft seal WG7
Are you missing materials or dimensions?
Feel free to contact us!
Our sealing experts will be happy to advise you!
Filter
| Di [mm] | Da [mm] | L [mm] | |
|---|---|---|---|
| Min: | |||
| Max: |
| Material selection | |
|---|---|
| Material: | |
| Material No. |
| V | |
|---|---|
| Profile | Di [mm] | Da [mm] | L [mm] | Material | Mat. No. | V | Quantity |
|---|---|---|---|---|---|---|---|
| WG7 | 470.00 | 520.00 | 22.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 127.00 | 158.80 | 12.70 | NBR/fabric | 0001K | 2 |
|
| WG7 | 970.00 | 1034.00 | 25.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 290.00 | 334.00 | 20.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 160.00 | 200.00 | 18.30 | NBR/fabric | 0001K | 1 |
|
| WG7 | 270.00 | 310.00 | 18.30 | NBR/fabric | 0001K | 2 |
|
| WG7 | 600.00 | 650.00 | 22.00 | FKM | 0003K | 2 |
|
| WG7 | 860.00 | 924.00 | 25.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 560.00 | 604.00 | 20.00 | NBR/fabric | 0001K | 1 |
|
| WG7 | 1020.00 | 1084.00 | 25.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 720.00 | 780.00 | 25.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 780.00 | 844.00 | 25.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 860.00 | 920.00 | 22.00 | FKM/fabric | 0003K | 2 |
|
| WG7 | 570.00 | 614.00 | 20.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 180.00 | 210.00 | 14.00 | NBR/fabric | 0001K | 1 |
|
| WG7 | 140.00 | 170.00 | 15.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 750.00 | 814.00 | 25.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 360.00 | 404.00 | 20.00 | NBR/fabric | 0001K | 1 |
|
| WG7 | 250.00 | 290.00 | 16.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 700.00 | 750.00 | 25.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 735.00 | 799.00 | 25.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 375.00 | 420.00 | 20.50 | NBR/fabric | 0001K | 2 |
|
| WG7 | 160.00 | 190.00 | 15.00 | NBR | 0135N | 2 |
|
| WG7 | 710.00 | 774.00 | 25.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 480.00 | 530.00 | 22.00 | NBR | 0156N | 1 |
|
| WG7 | 241.30 | 336.50 | 20.60 | NBR/fabric | 0001K | 2 |
|
| WG7 | 380.00 | 424.00 | 20.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 390.00 | 434.00 | 20.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 400.00 | 440.00 | 20.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 170.00 | 200.00 | 13.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 230.00 | 270.00 | 16.00 | FKM | 0003K | 2 |
|
| WG7 | 620.00 | 684.00 | 25.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 360.00 | 400.00 | 17.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 220.00 | 260.00 | 16.00 | NBR/fabric | 0001K | 1 |
|
| WG7 | 840.00 | 904.00 | 25.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 540.00 | 590.00 | 22.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 280.00 | 320.00 | 20.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 750.00 | 814.00 | 27.50 | NBR/fabric | 0001K | 2 |
|
| WG7 | 735.00 | 799.00 | 25.00 | FKM/fabric | 0003K | 2 |
|
| WG7 | 300.00 | 344.00 | 20.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 250.00 | 280.00 | 16.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 850.00 | 910.00 | 25.00 | NBR | 0135N | 2 |
|
| WG7 | 160.00 | 190.00 | 15.00 | NBR/fabric | 0001K | 1 |
|
| WG7 | 580.00 | 630.00 | 22.00 | FKM/fabric | 0003K | 2 |
|
| WG7 | 590.00 | 640.00 | 22.00 | NBR/fabric | 0001K | 1 |
|
| WG7 | 210.00 | 240.00 | 15.00 | NBR | 0135N | 2 |
|
| WG7 | 400.00 | 444.00 | 20.00 | HNBR/fabric | 0025K | 2 |
|
| WG7 | 460.00 | 504.00 | 20.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 1050.00 | 1110.00 | 25.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 800.00 | 864.00 | 25.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 710.00 | 774.00 | 25.00 | FKM/fabric | 0003K | 2 |
|
| WG7 | 540.00 | 590.00 | 25.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 530.00 | 580.00 | 22.00 | NBR | 0156N | 2 |
|
| WG7 | 400.00 | 444.00 | 20.00 | NBR/fabric | 0001K | 1 |
|
| WG7 | 220.00 | 270.00 | 19.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 530.00 | 580.00 | 22.00 | FKM/fabric | 0003K | 2 |
|
| WG7 | 560.00 | 604.00 | 20.50 | NBR/fabric | 0001K | 2 |
|
| WG7 | 420.00 | 460.00 | 18.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 370.00 | 414.00 | 20.00 | FKM | 0003K | 2 |
|
| WG7 | 300.00 | 340.00 | 16.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 350.00 | 394.00 | 20.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 210.00 | 240.00 | 15.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 175.00 | 205.00 | 14.30 | NBR/fabric | 0001K | 2 |
|
| WG7 | 560.00 | 610.00 | 22.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 450.00 | 490.00 | 18.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 970.00 | 1030.00 | 21.50 | NBR/fabric | 0001K | 2 |
|
| WG7 | 600.00 | 650.00 | 22.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 1030.00 | 1094.00 | 25.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 510.00 | 560.00 | 22.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 430.00 | 480.00 | 25.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 630.00 | 680.00 | 22.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 440.00 | 490.80 | 21.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 750.00 | 800.00 | 27.50 | NBR/fabric | 0001K | 2 |
|
| WG7 | 730.00 | 794.00 | 25.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 970.00 | 1030.00 | 21.50 | FKM | 0261V | 1 |
|
| WG7 | 430.00 | 480.00 | 27.50 | NBR/fabric | 0001K | 1 |
|
| WG7 | 970.00 | 1030.00 | 21.50 | FKM | 0003K | 2 |
|
| WG7 | 820.00 | 870.00 | 25.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 775.00 | 839.00 | 25.00 | NBR | 0156N | 1 |
|
| WG7 | 820.00 | 884.00 | 25.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 860.00 | 944.00 | 25.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 680.00 | 730.00 | 20.00 | FKM/fabric | 0003K | 2 |
|
| WG7 | 570.00 | 620.00 | 22.00 | NBR | 0156N | 2 |
|
| WG7 | 620.00 | 684.00 | 25.00 | FKM/fabric | 0003K | 2 |
|
| WG7 | 750.00 | 814.00 | 28.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 370.00 | 410.00 | 18.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 275.00 | 315.00 | 18.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 750.00 | 814.00 | 25.00 | FKM | 0003K | 2 |
|
| WG7 | 775.00 | 839.00 | 25.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 640.00 | 704.00 | 25.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 1100.00 | 1164.00 | 25.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 600.00 | 650.00 | 22.00 | NBR | 0135N | 2 |
|
| WG7 | 430.00 | 480.00 | 22.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 360.00 | 400.00 | 19.50 | NBR/fabric | 0001K | 2 |
|
| WG7 | 400.00 | 450.00 | 18.10 | NBR/fabric | 0001K | 2 |
|
| WG7 | 330.00 | 374.00 | 20.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 570.00 | 620.00 | 22.00 | FKM | 0003K | 2 |
|
| WG7 | 780.00 | 830.00 | 25.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 190.00 | 230.00 | 16.00 | FKM | 0003K | 2 |
|
| WG7 | 780.00 | 830.00 | 27.50 | NBR/fabric | 0001K | 2 |
|
| WG7 | 450.00 | 480.00 | 20.00 | NBR/fabric | 0001K | 1 |
|
| WG7 | 540.00 | 590.00 | 27.50 | NBR/fabric | 0001K | 2 |
|
| WG7 | 530.00 | 580.00 | 24.50 | NBR/fabric | 0001K | 2 |
|
| WG7 | 380.00 | 420.00 | 18.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 650.00 | 714.00 | 25.00 | NBR/fabric | 0001K | 2 |
|
| WG7 | 175.00 | 215.00 | 16.00 | NBR/fabric | 0001K | 1 |
|
| WG7 | 780.00 | 830.00 | 22.00 | NBR/fabric | 0001K | 2 |
|
