Pneumatic Rod Seal 1PE

Pneumatic rod seal, inside sealing. Pneumatic seal with very low friction. Application: Pneumatic valves.

Application Range
Pressure: ≤ 10 bar
Temperature: -20 °C / +100 °C
Standard Material: NBR, FKM, EPDM

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Are you missing materials or dimensions?

Feel free to contact us!

Our sealing experts will be happy to advise you!

+49(201)86606-0 or vk@techno-parts.de

Filter

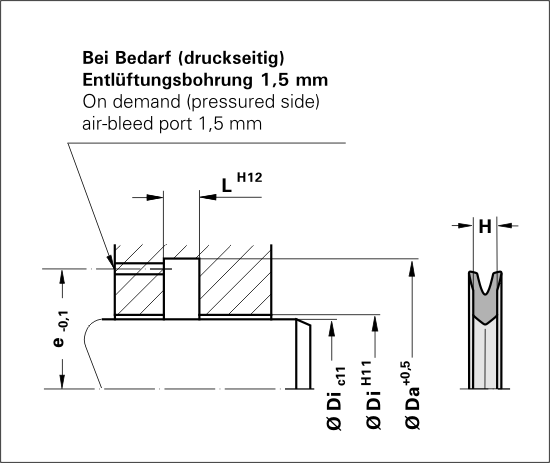

Di [mm] Da [mm] L [mm] H [mm]
Min:
Max:
Material selection
Material:
Material No.
V
Profile Di [mm] Da [mm] L [mm] H [mm] Material Mat. No. V Quantity
1PE 60.00 76.00 3.50 3.00 NBR 0070N 2
1PE 36.00 48.00 3.00 2.50 NBR 0070N 2
1PE 40.00 52.00 3.00 2.50 NBR 0070N 2
1PE 10.00 19.50 2.30 2.00 NBR 0070N 2
1PE 16.00 27.00 2.30 2.00 NBR 0070N 2
1PE 12.00 21.50 2.30 2.00 NBR 0070N 2
1PE 50.00 64.00 3.00 2.50 NBR 0070N 2
1PE 28.00 39.00 2.30 2.00 NBR 0070N 2
1PE 20.00 29.50 2.30 2.00 NBR 0070N 2
1PE 32.00 43.00 2.30 2.00 NBR 0070N 2
1PE 30.00 41.00 2.30 2.00 NBR 0070N 2
1PE 25.00 34.50 2.30 2.00 NBR 0070N 2
1PE 12.00 21.50 2.30 2.00 NBR 0132N 2
1PE 18.00 29.00 2.30 2.00 NBR 0070N 2
1PE 22.00 33.50 2.30 2.00 NBR 0070N 2
1PE 6.00 15.50 2.30 2.00 NBR 0070N 2
1PE 9.00 18.50 2.30 2.00 NBR 0070N 1
1PE 38.00 50.00 3.00 2.50 NBR 0070N 2
1PE 45.00 59.00 3.00 2.50 NBR 0070N 2
1PE 52.00 66.00 3.00 2.50 NBR 0070N 2
1PE 14.00 23.50 2.30 2.00 NBR 0070N 2
