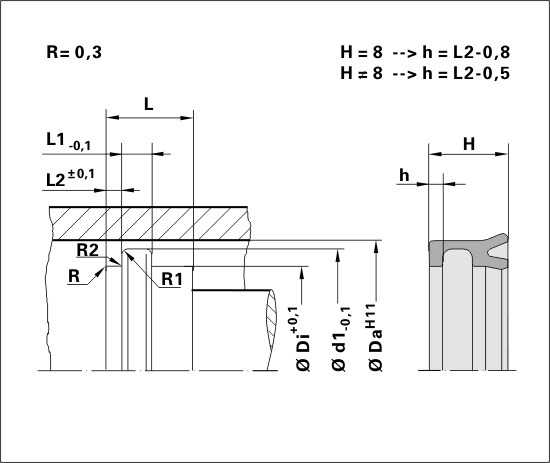

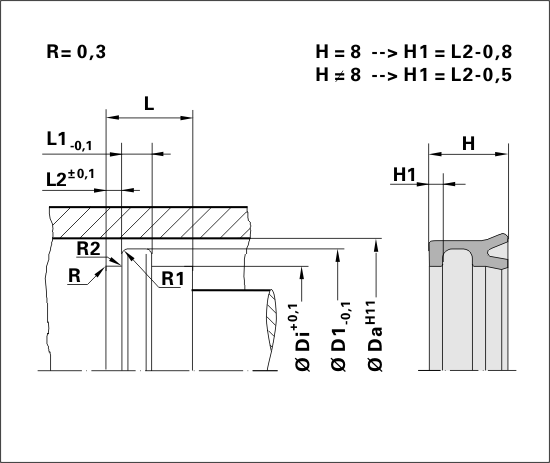

Piston Seal 2P9

Lip seal for one-sides pressurisation in pneumatic applications.

Application Range
Pressure: ≤ 16 bar
Temperature: -30 °C / +80 °C
Sliding Speed: ≤ 1 m/s
Standard Material: NBR

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Load product catalog

Are you missing materials or dimensions?

Feel free to contact us!

Our sealing experts will be happy to advise you!

+49(201)86606-0 or vk@techno-parts.de

Filter

Da [mm] Di [mm] H [mm]
Min:
Max:
Material selection
Material:
Material No.
V
Profile Da [mm] Di [mm] H [mm] Material Mat. No. V Quantity
2P9 18.00 12.00 8.00 NBR 0022N 2
2P9 40.00 33.00 9.00 HNBR 0098N 1
2P9 80.00 70.00 14.00 NBR 0022N 2
2P9 70.00 62.00 10.00 NBR 0022N 1
2P9 32.00 25.00 9.00 HNBR 0098N 2
2P9 54.00 46.00 10.00 NBR 0022N 2
2P9 63.00 56.00 9.00 NBR 0022N 2
2P9 63.00 56.00 9.00 FKM 0012V 2
2P9 80.00 72.00 10.00 NBR 0022N 1
2P9 100.00 90.00 12.00 NBR 0022N 2
2P9 16.00 10.00 8.00 HNBR 0098N 2
2P9 20.00 14.00 8.00 NBR 0022N 2
2P9 25.00 18.00 9.00 NBR 0022N 2
2P9 32.00 25.00 9.00 NBR 0022N 1
2P9 40.00 33.00 9.00 NBR 0022N 1
2P9 45.00 38.00 9.00 NBR 0022N 2
2P9 50.00 43.00 9.00 NBR 0022N 1
2P9 100.00 90.00 12.00 FKM 0012V 1
2P9 63.00 53.00 13.00 NBR 0022N 1
2P9 16.00 10.00 8.00 NBR 0022N 2
2P9 35.00 28.00 9.00 NBR 0022N 2
