Pneumatic Damping Seal 1P9

Pneumatic damping seal rings for small fitting areas.

Application Range
Pressure: ≤ 16 bar
Temperature NBR: -30 °C / +80 °C
Sliding Speed: ≤ 1 m/s

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Load product catalog

Are you missing materials or dimensions?

Feel free to contact us!

Our sealing experts will be happy to advise you!

+49(201)86606-0 or vk@techno-parts.de

Filter

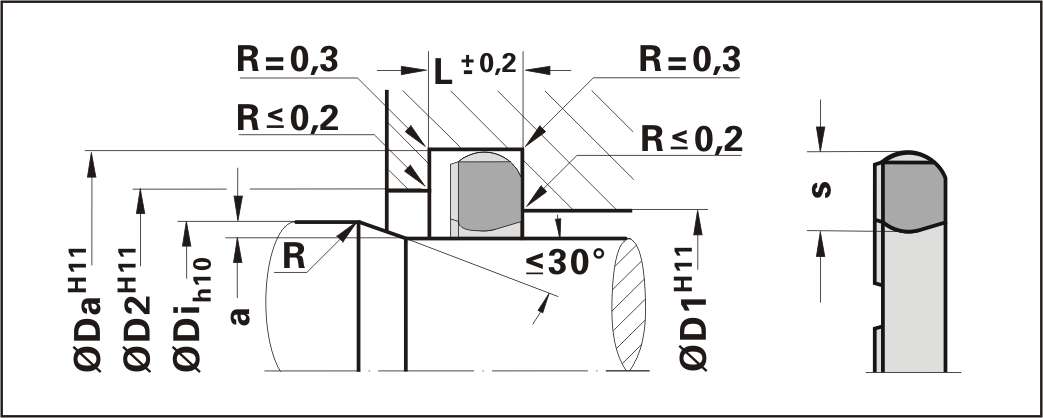

Di [mm] Da [mm] L [mm]
Min:
Max:
Material selection
Material:
Material No.
V
Profile Di [mm] Da [mm] L [mm] Material Mat. No. V Quantity
1P9 22.00 30.00 4.80 FKM 0012V 2
1P9 30.00 40.00 6.00 NBR 0022N 2
1P9 45.00 55.00 6.00 PUR 0090P 2
1P9 34.00 44.00 6.00 NBR 0022N 2
1P9 65.00 79.00 8.40 NBR 0030N 2
1P9 14.00 22.00 4.80 NBR 0022N 1
1P9 38.00 48.00 6.00 NBR 0022N 2
1P9 65.00 79.00 8.40 NBR 0022N 1
1P9 70.00 84.00 8.40 NBR 0022N 1
1P9 80.00 94.00 8.40 NBR 0022N 2
1P9 80.00 94.00 8.40 FKM 0012V 2
1P9 80.00 94.00 8.40 HNBR 0099N 2
1P9 100.00 114.00 8.40 NBR 0022N 2
1P9 110.00 124.00 8.40 NBR 0022N 1
1P9 45.00 55.00 6.00 NBR 0022N 2
1P9 50.00 60.00 6.00 NBR 0022N 1
1P9 18.00 26.00 4.80 NBR 0022N 2
1P9 20.00 28.00 4.80 NBR 0022N 2
1P9 20.00 28.00 4.80 FKM 0012V 2
1P9 22.00 30.00 4.80 NBR 0022N 2
1P9 24.00 32.00 4.80 NBR 0022N 2
1P9 28.00 38.00 6.00 NBR 0022N 2
1P9 32.00 42.00 6.00 NBR 0022N 1
1P9 63.00 77.00 8.40 NBR 0022N 2
1P9 25.00 33.00 4.80 FKM 0012V 2
1P9 100.00 114.00 8.40 FKM 0012V 2
1P9 10.00 18.00 4.80 NBR 0022N 2
1P9 25.00 33.00 4.80 NBR 0022N 2
1P9 35.00 45.00 6.00 NBR 0022N 2
1P9 40.00 50.00 6.00 NBR 0022N 1
1P9 26.00 36.00 6.00 NBR 0022N 2
1P9 20.00 28.00 4.80 NBR 0022N 2
1P9 14.00 22.00 4.80 NBR 0022N 2
1P9 12.00 20.00 4.80 NBR 0022N 2
1P9 60.00 74.00 8.40 NBR 0022N 2
1P9 16.00 24.00 4.80 NBR 0022N 2
1P9 50.00 60.00 6.00 FKM 0012V 2
1P9 30.00 40.00 6.00 FKM 0012V 2
1P9 36.00 46.00 5.00 NBR 0022N 1
1P9 36.00 46.00 5.00 NBR 0022N 1
1P9 30.00 40.00 6.00 NBR 0022N 1
1P9 55.00 69.00 8.40 NBR 0022N 2
