Lip Seal 2PJ

Lip seal for very small fitting areas in pneumatic applications.

Application Range
Pressure: ≤ 10 bar
Temperature: -25 °C / +80 °C
Sliding Speed: ≤ 1 m/s
Standard Material: NBR

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Load product catalog

Are you missing materials or dimensions?

Feel free to contact us!

Our sealing experts will be happy to advise you!

+49(201)86606-0 or vk@techno-parts.de

Filter

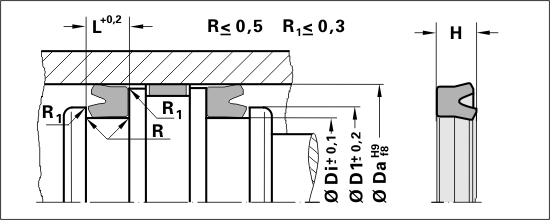

Da [mm] Di [mm] H [mm] L [mm]
Min:
Max:
Material selection
Material:
Material No.
V
Profile Da [mm] Di [mm] H [mm] L [mm] Material Mat. No. V Quantity
2PJ 40.00 30.00 6.30 7.00 NBR 0070N 2
2PJ 25.00 17.00 5.30 5.70 NBR 0070N 2
2PJ 32.00 24.00 5.30 5.70 NBR 0070N 2
2PJ 20.00 14.00 4.30 4.70 NBR 0070N 2
2PJ 12.00 8.00 2.90 3.30 NBR 0070N 2
2PJ 6.00 3.00 2.20 2.60 NBR 0070N 2
2PJ 16.00 11.00 3.60 4.00 NBR 0070N 2
2PJ 15.00 10.00 3.60 4.00 NBR 0070N 2
2PJ 8.00 4.00 2.90 3.30 NBR 0070N 2
2PJ 10.00 6.00 2.90 3.30 NBR 0070N 2
