Lip Seal 2PA

Lip seal for small fitting areas in pneumatic applications.

Application Range
Pressure: ≤ 12 bar
Temperature: -20 °C / +80 °C
Sliding Speed: ≤ 1 m/s
Standard Material: NBR

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Load product catalog

Are you missing materials or dimensions?

Feel free to contact us!

Our sealing experts will be happy to advise you!

+49(201)86606-0 or vk@techno-parts.de

Filter

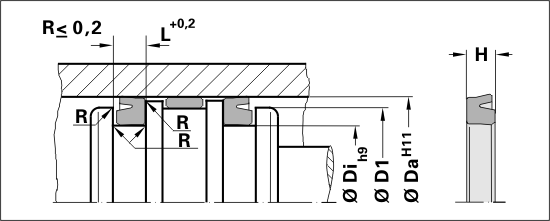

Da [mm] Di [mm] H [mm] L [mm]
Min:
Max:
Material selection
Material:
Material No.
V
Profile Da [mm] Di [mm] H [mm] L [mm] Material Mat. No. V Quantity
2PA 30.00 22.00 3.25 3.50 FKM 0012V 1
2PA 15.00 9.00 2.55 3.00 NBR 0025N 1
2PA 45.00 37.00 3.25 3.50 EPDM 0084E 2
2PA 125.00 105.00 8.25 8.50 HNBR 0098N 2
2PA 125.00 105.00 8.25 8.50 FKM 0012V 2
2PA 18.00 12.00 2.55 3.00 NBR 0025N 1
2PA 70.00 60.00 4.25 4.50 NBR 0085N 2
2PA 10.00 6.00 2.55 3.00 HNBR 0098N 2
2PA 125.00 105.00 8.25 8.50 PUR 0006P 1
2PA 50.00 42.00 3.25 3.50 PUR 0006P 1
2PA 80.00 70.00 4.25 4.50 NBR 0080N 2
2PA 150.00 130.00 8.25 8.50 NBR 0025N 1
2PA 50.00 42.00 3.25 3.50 FKM 0085V 2
2PA 55.00 45.00 4.25 4.50 NBR 0025N 2
2PA 56.00 46.00 4.25 4.50 NBR 0075N 2
2PA 57.00 50.50 3.25 3.50 NBR 0025N 2
2PA 58.00 48.00 4.25 4.50 NBR 0025N 2
2PA 63.00 53.00 4.25 4.50 FKM 0012V 1
2PA 63.00 53.00 4.25 4.50 NBR 0025N 2
2PA 63.00 53.00 4.25 4.50 NBR 0080N 1
2PA 90.00 80.00 4.25 4.50 FKM 0080V 1
2PA 100.00 90.00 4.25 4.50 NBR 0080N 1
2PA 100.00 90.00 4.25 4.50 HNBR 0098N 2
2PA 100.00 90.00 4.25 4.50 FKM 0012V 2
2PA 112.00 102.00 4.25 4.50 PUR 0051P 1
2PA 18.00 12.00 2.55 3.00 NBR 0031N 2
2PA 55.00 45.00 4.00 0.00 FKM 0085V 2
2PA 25.00 19.00 3.25 3.50 FKM 0012V 1
2PA 40.00 32.00 3.25 3.50 EPDM 0004E 1
2PA 110.00 100.00 4.25 4.50 PUR 0051P 1
2PA 160.00 140.00 8.25 8.50 NBR 0025N 1
2PA 40.00 32.00 3.25 0.00 NBR 0048N 2
2PA 45.00 37.00 3.25 3.50 NBR 0080N 2
2PA 85.00 75.00 4.25 4.50 NBR 0085N 1
2PA 24.00 18.00 3.25 3.50 NBR 0025N 1
2PA 70.00 60.00 4.25 4.50 NBR 0025N 2
2PA 50.00 42.00 3.25 3.50 FKM 0012V 1
2PA 9.00 5.00 2.55 3.00 EPDM 0004E 2
2PA 16.00 10.00 2.55 3.00 PUR 0006P 1
2PA 125.00 105.00 8.25 8.50 NBR 0025N 1
2PA 38.00 30.00 3.25 3.50 FKM 0080V 2
2PA 8.00 5.45 2.30 2.80 NBR 0080N 2
2PA 10.00 3.00 3.50 4.00 NBR 0080N 2
2PA 58.00 48.00 4.25 4.50 PUR 0051P 2
2PA 42.00 34.00 3.25 3.50 NBR 0025N 1
2PA 5.00 2.50 1.50 2.00 EPDM 0004E 2
2PA 20.00 14.00 2.55 3.00 PUR 0018P 2
2PA 21.00 15.00 2.55 3.00 NBR 0080N 2
2PA 6.00 3.00 2.00 2.50 FKM 0012V 2
2PA 10.00 6.00 2.55 3.00 FKM 0012V 1
2PA 10.00 6.00 2.55 3.00 PUR 0006P 1
2PA 50.00 42.00 3.25 0.00 HNBR 0098N 2
2PA 6.00 3.00 2.00 2.50 NBR 0025N 2
2PA 22.00 16.00 2.55 3.00 FKM 0012V 2
2PA 16.00 10.00 2.55 3.00 EPDM 0004E 1
2PA 52.00 42.00 4.25 4.50 FKM 0012V 2
2PA 90.00 80.00 4.25 4.50 PUR 0051P 2
2PA 16.00 10.00 2.55 3.00 NBR 0080N 1
2PA 18.00 12.00 2.55 3.00 NBR 0080N 1
2PA 25.00 19.00 3.25 3.50 NBR 0025N 2
2PA 13.00 8.00 2.55 3.00 NBR 0080N 1
2PA 6.00 3.00 2.00 2.50 NBR 0080N 1
2PA 8.00 4.80 2.55 3.00 NBR 0080N 1
2PA 90.00 80.00 4.25 4.50 NBR 0025N 1
2PA 80.00 70.00 4.25 4.50 NBR 0025N 1
2PA 38.00 30.00 3.25 3.50 EPDM 0004E 2
2PA 11.00 6.00 2.55 0.00 NBR 0025N 2
2PA 10.00 6.00 2.55 3.00 NBR 0025N 1
2PA 8.00 4.00 2.55 3.00 NBR 0025N 1
2PA 8.00 4.80 2.30 2.70 FKM 0012V 1
2PA 28.00 22.00 3.25 3.50 PUR 0006P 2
2PA 26.00 20.00 3.25 0.00 NBR 0025N 1
2PA 12.60 7.50 2.55 3.00 PUR 0011P 2
2PA 180.00 160.00 8.25 8.50 NBR 0085N 2
2PA 38.00 30.00 3.25 3.50 FKM 0012V 2
2PA 25.00 19.00 3.25 3.50 NBR 0080N 1
2PA 10.00 6.00 2.55 3.00 NBR 0048N 2
2PA 10.00 6.45 2.55 3.00 NBR 0080N 2
2PA 12.00 7.00 2.55 3.00 FKM 0012V 1
2PA 12.00 7.00 2.55 3.00 NBR 0025N 1
2PA 12.00 7.00 2.55 3.00 NBR 0080N 1
2PA 13.00 8.00 2.55 3.00 NBR 0025N 1
2PA 14.00 8.00 2.55 3.00 NBR 0025N 1
2PA 14.00 8.00 2.55 3.00 NBR 0080N 2
2PA 16.00 10.00 2.55 3.00 NBR 0025N 1
2PA 16.00 11.00 2.55 3.00 NBR 0025N 1
2PA 18.00 12.00 2.55 3.00 FKM 0012V 2
2PA 20.00 14.00 2.55 3.00 FKM 0012V 1
2PA 20.00 14.00 2.55 3.00 NBR 0025N 1
2PA 20.00 14.00 2.55 3.00 FKM 0080V 1
2PA 22.00 16.00 2.55 3.00 NBR 0025N 1
2PA 22.00 16.00 2.55 3.00 EPDM 0004E 2
2PA 20.00 14.00 2.55 3.00 PUR 0006P 2
2PA 10.00 6.00 2.55 3.00 FKM 0080V 2
2PA 32.00 24.00 3.25 3.50 FKM 0012V 2
2PA 32.00 24.00 3.25 3.50 NBR 0025N 1
2PA 32.00 24.00 3.25 3.50 NBR 0080N 1
2PA 32.00 24.00 3.25 3.50 HNBR 0098N 2
2PA 34.00 26.00 3.25 3.50 EPDM 0084E 2
2PA 35.00 27.00 3.25 3.50 NBR 0025N 1
2PA 35.00 27.00 3.25 3.50 FKM 0080V 2
2PA 35.00 27.00 3.25 3.50 EPDM 0084E 2
2PA 36.00 28.00 3.25 3.50 NBR 0025N 1
2PA 36.00 28.00 3.25 3.50 NBR 0080N 2
2PA 30.00 22.00 3.25 3.50 NBR 0048N 2
2PA 37.00 29.00 3.25 3.50 NBR 0025N 2
2PA 32.00 24.00 3.25 3.50 PUR 0018P 2
2PA 18.00 12.00 2.55 3.00 HNBR 0094N 2
2PA 20.00 14.00 2.55 3.00 NBR 0080N 1
2PA 20.00 14.00 2.55 3.00 NBR 0048N 2
2PA 52.00 42.00 4.25 4.50 NBR 0025N 1
2PA 10.00 6.00 2.55 3.00 NBR 0080N 2
2PA 30.00 21.00 2.75 0.00 PUR 0006P 2
2PA 30.00 22.00 3.25 3.50 NBR 0025N 1
2PA 50.00 42.00 3.25 3.50 FKM 0080V 2
2PA 45.00 37.00 3.25 3.50 NBR 0025N 1
2PA 32.00 24.00 3.25 3.50 PUR 0006P 1
2PA 6.00 3.00 2.00 2.50 EPDM 0004E 2
2PA 16.00 10.00 2.55 3.00 FKM 0012V 2
2PA 28.00 22.00 3.25 3.50 FKM 0012V 1
2PA 4.00 1.50 1.50 2.00 FKM 0255V 2
2PA 5.00 2.50 1.50 2.00 NBR 0025N 1
2PA 5.00 2.50 1.50 2.00 NBR 0080N 1
2PA 5.00 2.50 1.50 2.00 NBR 0048N 2
2PA 100.00 90.00 4.25 4.50 PUR 0006P 1
2PA 5.00 2.50 1.50 2.50 NBR 0025N 2
2PA 50.00 42.00 3.25 3.50 NBR 0080N 2
2PA 63.00 53.00 4.25 4.50 PUR 0006P 1
2PA 40.00 32.00 3.25 3.50 PUR 0006P 1
2PA 8.00 4.80 2.30 2.70 NBR 0080N 1
2PA 12.00 7.00 2.55 3.00 PUR 0006P 1
2PA 12.60 7.50 2.55 3.00 PUR 0006P 2
2PA 160.00 140.00 8.25 8.50 PUR 0006P 2
2PA 80.00 70.00 4.25 4.50 FKM 0012V 1
2PA 63.00 53.00 4.25 4.50 PUR 0018P 2
2PA 63.00 53.00 4.25 4.50 FKM 0080V 2
2PA 8.00 4.80 2.30 2.70 EPDM 0004E 1
2PA 13.00 8.00 2.55 3.00 PUR 0006P 2
2PA 45.00 37.00 3.25 3.50 FKM 0012V 2
2PA 35.00 27.00 3.25 3.50 FKM 0012V 1
2PA 28.00 22.00 3.25 3.50 NBR 0025N 1
2PA 82.00 72.00 4.25 4.50 PUR 0051P 1
2PA 21.00 15.00 2.55 3.00 NBR 0025N 2
2PA 30.00 22.00 3.25 3.50 NBR 0080N 1
2PA 32.00 24.00 3.25 3.50 NBR 0080N 1
2PA 38.00 30.00 3.25 3.50 NBR 0025N 1
2PA 40.00 32.00 3.25 3.50 FKM 0012V 2
2PA 40.00 32.00 3.25 3.50 NBR 0025N 1
2PA 14.00 8.00 2.55 3.00 FKM 0012V 1
2PA 40.00 32.00 3.25 3.50 NBR 0080N 1
2PA 8.00 4.00 2.55 3.00 FKM 0012V 2
2PA 8.00 4.00 2.55 3.00 NBR 0048N 2
2PA 50.00 42.00 3.25 3.50 NBR 0025N 1
2PA 8.00 4.80 2.30 2.70 NBR 0025N 2
2PA 8.00 4.80 2.55 3.00 PUR 0006P 1
2PA 158.00 148.00 4.25 4.50 PUR 0069P 2
2PA 160.00 140.00 8.25 8.50 FKM 0012V 1
2PA 200.00 180.00 8.25 8.50 FKM 0012V 2
2PA 25.00 19.00 3.25 3.50 PUR 0006P 1
2PA 80.00 70.00 4.25 4.50 PUR 0006P 1
2PA 45.00 37.00 3.25 3.50 HNBR 0094N 2
2PA 100.00 90.00 4.25 4.50 NBR 0025N 3
2PA 8.00 4.00 2.55 0.00 PUR 0006P 1
2PA 200.00 180.00 8.25 8.50 NBR 0025N 1
2PA 25.00 19.00 3.25 3.50 PUR 0007P 1
2PA 4.00 1.50 1.50 2.00 NBR 0025N 2
2PA 25.00 19.00 3.25 3.50 PUR 0018P 2
2PA 22.00 16.00 2.55 3.00 NBR 0080N 1
2PA 48.00 41.00 3.25 3.50 NBR 0022N 2
2PA 30.00 22.50 4.80 5.20 NBR 0025N 1
2PA 4.00 1.50 1.50 2.00 NBR 0080N 1
2PA 42.00 34.00 3.25 3.50 HNBR 0097N 1
