Complete Piston 2PM

Complete piston with magnetic insert to facilitate positioning with suitable reed contacts, for pneumatic applications.

Application Range
Pressure: ≤ 10 bar
Temperature: -20 °C / +80 °C
Sliding Speed: ≤ 1 m/s
Standard Material: NBR/steel core and permanet magnet

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Load product catalog

Are you missing materials or dimensions?

Feel free to contact us!

Our sealing experts will be happy to advise you!

+49(201)86606-0 or vk@techno-parts.de

Filter

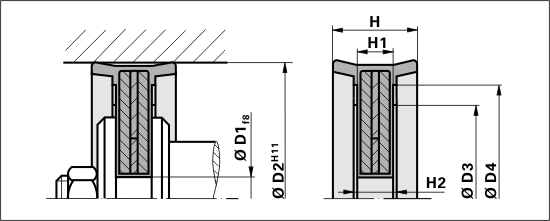

D2 [mm] D1 [mm] H [mm] h [mm]
Min:
Max:
Material selection
Material:
Material No.
V
Profile D2 [mm] D1 [mm] H [mm] h [mm] Material Mat. No. V Quantity
2PM 80.00 16.00 30.00 14.00 NBR 0000K 1
2PM 32.00 8.00 21.00 10.00 NBR 0000K 1
2PM 40.00 10.00 24.50 11.40 NBR 0000K 1
2PM 125.00 20.00 33.50 17.20 NBR 0000K 1
2PM 160.00 27.00 38.00 19.50 NBR 0000K 1
2PM 63.00 16.00 29.00 13.20 NBR 0000K 2
2PM 50.00 10.00 24.00 11.00 NBR 0000K 1
2PM 125.00 20.00 33.50 17.20 FKM 0002K 2
2PM 200.00 27.00 42.50 20.20 NBR 0000K 2
2PM 63.00 16.00 29.00 13.20 FKM 0002K 2
2PM 32.00 8.00 21.00 10.00 FKM 0002K 2
2PM 100.00 20.00 33.50 15.40 NBR 0000K 1
2PM 80.00 16.00 30.00 14.00 FKM 0002K 2
