Complete Piston 2PG

Complete piston with magnetic insert and end-of-travel damping.

Application Range
Pressure: ≤ 10 bar
Temperature: -20 °C / +80 °C (HNBR max. +120 °C)
Sliding Speed: ≤ 1 m/s
Standard Material: NBR/steel core and permanent magnet

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Load product catalog

Are you missing materials or dimensions?

Feel free to contact us!

Our sealing experts will be happy to advise you!

+49(201)86606-0 or vk@techno-parts.de

Filter

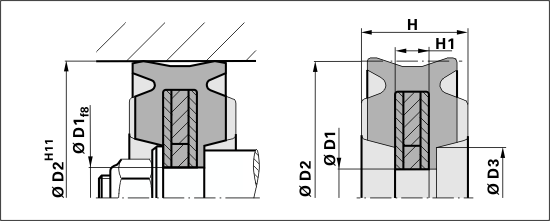

D2 [mm] D1 [mm] H [mm] h1 [mm]
Min:
Max:
Material selection
Material:
Material No.
V
Profile D2 [mm] D1 [mm] H [mm] h1 [mm] Material Mat. No. V Quantity
2PG 63.00 12.00 13.80 6.50 HNBR 0017K 2
2PG 16.00 4.50 6.50 2.65 NBR 0000K 1
2PG 16.00 4.50 6.50 2.95 NBR 0000K 2
2PG 20.00 6.00 7.50 3.95 NBR 0000K 1
2PG 100.00 20.00 17.90 8.50 NBR 0000K 2
2PG 63.00 12.00 13.80 6.50 NBR 0000K 2
2PG 80.00 16.00 15.90 7.50 NBR 0000K 2
2PG 40.00 8.00 11.90 5.50 NBR 0000K 1
2PG 50.00 10.00 13.80 6.50 NBR 0000K 2
2PG 25.00 7.00 9.00 4.15 NBR 0000K 2
2PG 32.00 8.00 10.90 5.50 NBR 0000K 1
