Complete Piston 2P7

Complete piston with integrated end-of-travel damping for pneumatic applications, for one-sided pressurisation.

Application Range
Pressure: ≤ 10 bar
Temperature: -30 °C / +80 °C
Sliding Speed: ≤ 1 m/s
Standard Material: NBR/steel core

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Load product catalog

Are you missing materials or dimensions?

Feel free to contact us!

Our sealing experts will be happy to advise you!

+49(201)86606-0 or vk@techno-parts.de

Filter

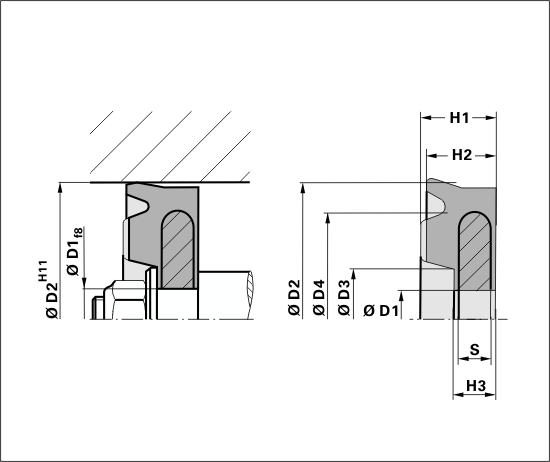

D2 [mm] D1 [mm] H1 [mm] S [mm] H3 [mm]
Min:
Max:
Material selection
Material:
Material No.
V
Profile D2 [mm] D1 [mm] H1 [mm] S [mm] H3 [mm] Material Mat. No. V Quantity
2P7 32.00 8.00 7.50 3.00 3.50 NBR 0000K 2
2P7 50.00 10.00 10.00 4.00 4.50 NBR 0000K 2
2P7 16.00 4.50 4.40 2.00 2.30 NBR 0000K 1
2P7 8.00 3.00 3.70 1.50 0.00 NBR 0000K 2
2P7 40.00 8.00 8.50 4.00 4.50 NBR 0000K 2
2P7 20.00 6.00 5.50 2.50 2.80 NBR 0000K 1
2P7 25.00 7.00 6.40 3.00 3.50 NBR 0000K 1
2P7 63.00 12.00 10.00 4.00 4.50 NBR 0000K 2
2P7 32.00 8.00 7.50 3.00 3.50 FKM 0002K 2
2P7 6.00 2.00 2.80 1.25 1.45 NBR 0000K 2
2P7 12.00 4.50 4.40 2.00 2.30 NBR 0000K 1
2P7 40.00 10.00 7.50 0.00 0.00 NBR 0075N 2
2P7 80.00 16.00 9.60 0.00 0.00 NBR 0075N 1
2P7 50.00 10.00 10.00 0.00 0.00 FKM 0002K 2
2P7 40.00 10.00 7.50 0.00 0.00 NBR 0075N 1
2P7 63.00 12.00 10.00 4.00 0.00 FKM 0002K 2
2P7 8.00 3.00 3.70 1.50 1.80 NBR 0000K 2
2P7 80.00 16.00 11.40 5.00 5.50 NBR 0000K 1
2P7 100.00 20.00 12.90 6.00 6.50 NBR 0000K 1
2P7 25.00 7.00 6.40 0.00 0.00 NBR 0075N 1
