Complete Piston 2P6

Complete piston with integrated end-of-travel damping for pneumatic applications.

Application Range
Pressure: ≤ 10 bar
Temperature: -20 °C / +80 °C
Sliding Speed: ≤ 1 m/s
Standard Material: NBR/steel core

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Load product catalog

Are you missing materials or dimensions?

Feel free to contact us!

Our sealing experts will be happy to advise you!

+49(201)86606-0 or vk@techno-parts.de

Filter

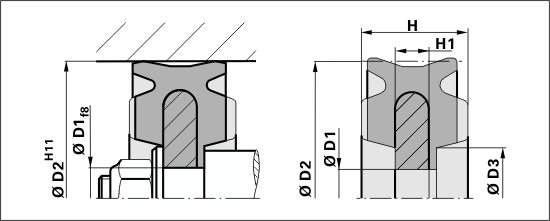

D2 [mm] D1 [mm] H [mm] H1 [mm]
Min:
Max:
Material selection
Material:
Material No.
V
Profile D2 [mm] D1 [mm] H [mm] H1 [mm] Material Mat. No. V Quantity
2P6 25.00 7.00 8.60 7.50 3.00 FKM 0002K 2
2P6 32.00 8.00 11.00 8.00 3.00 FKM 0002K 2
2P6 50.00 10.00 10.00 8.50 4.00 NBR 0000K 1
2P6 16.00 4.50 6.50 4.50 2.00 NBR 0000K 1
2P6 20.00 6.00 7.50 0.00 2.50 NBR 0000K 2
2P6 25.00 6.00 8.50 0.00 0.00 NBR 0000K 1
2P6 80.00 16.00 16.00 12.00 5.00 NBR 0000K 1
2P6 12.00 4.50 6.00 5.50 2.00 NBR 0000K 1
2P6 20.00 6.00 7.80 6.50 2.50 FKM 0002K 1
2P6 12.00 4.50 6.00 5.00 2.00 NBR 0000K 2
2P6 20.00 6.00 7.50 6.30 2.50 NBR 0000K 2
2P6 32.00 8.00 11.00 8.00 3.00 NBR 0000K 2
2P6 40.00 10.00 10.00 0.00 0.00 NBR 0075N 1
2P6 8.00 3.00 5.00 4.00 1.50 NBR 0000K 1
2P6 20.00 6.00 8.00 6.50 2.50 NBR 0075N 1
2P6 25.00 7.00 8.60 7.50 3.00 NBR 0075N 1
2P6 6.00 2.00 3.80 3.00 1.25 NBR 0000K 1
2P6 10.00 3.00 5.00 4.00 1.50 NBR 0000K 1
2P6 32.00 8.00 9.00 8.00 4.00 NBR 0075N 1
2P6 20.00 6.00 7.50 5.50 2.50 NBR 0000K 1
2P6 32.00 8.00 11.00 8.00 3.00 HNBR 0017K 2
2P6 25.00 7.00 8.80 7.60 3.00 NBR 0025N 2
2P6 16.00 4.50 6.50 5.50 2.00 FKM 0002K 2
2P6 63.00 16.00 10.70 9.00 5.00 FKM 0002K 2
2P6 16.00 4.50 6.40 5.20 2.00 FKM 0002K 1
2P6 25.00 7.00 8.80 7.00 3.00 NBR 0000K 2
2P6 63.00 12.00 14.00 10.00 4.00 NBR 0000K 1
2P6 12.00 4.50 6.00 4.00 2.00 NBR 0000K 1
2P6 100.00 20.00 13.80 10.00 6.00 NBR 0000K 1
2P6 16.00 4.50 6.20 5.20 2.00 NBR 0000K 1
2P6 100.00 20.00 18.00 14.00 6.00 NBR 0000K 1
2P6 50.00 10.00 14.00 10.00 4.00 NBR 0000K 1
2P6 63.00 16.00 10.70 9.00 5.00 NBR 0075N 2
2P6 80.00 16.00 11.80 9.50 5.00 NBR 0075N 2
2P6 40.00 10.00 9.80 8.50 4.00 NBR 0075N 1
2P6 40.00 8.00 11.80 8.80 4.00 NBR 0000K 1
2P6 32.00 8.00 9.10 8.10 3.00 NBR 0000K 2
