Seal-Guide Element 2PK

Seal-Guide Element with damping buffers.

Application Range
Pressure: ≤ 12 bar
Temperature: -30 °C / +80 °C
Sliding Speed: ≤ 1 m/s
Standard Material: PUR90

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Load product catalog

Are you missing materials or dimensions?

Feel free to contact us!

Our sealing experts will be happy to advise you!

+49(201)86606-0 or vk@techno-parts.de

Filter

Da [mm] Di [mm] H [mm]
Min:
Max:
Material selection
Material:
Material No.
V

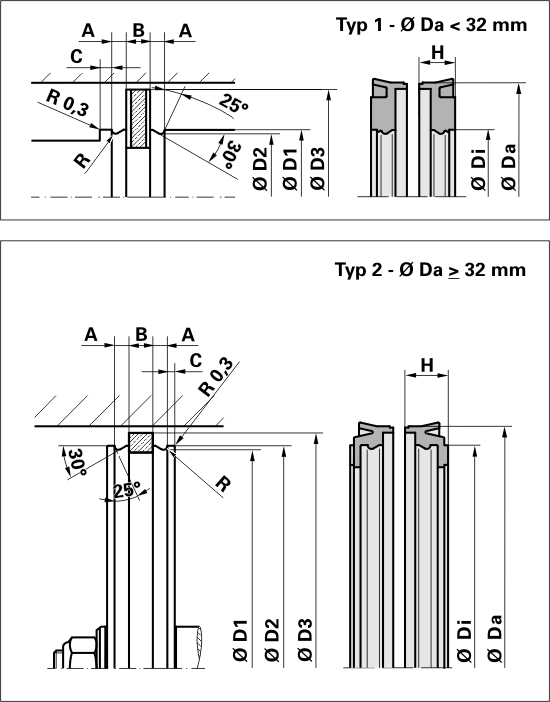

Profile Da [mm] Di [mm] H [mm] Material Mat. No. V Quantity
2PK 12.00 6.00 5.90 PUR 0010P 2
2PK 25.00 10.00 6.15 PUR 0010P 2
2PK 20.00 10.00 5.90 PUR 0010P 2
2PK 16.00 8.00 5.90 PUR 0010P 2
2PK 50.00 43.00 7.65 PUR 0010P 2
2PK 32.00 25.00 7.15 PUR 0010P 1
2PK 63.00 53.00 9.90 PUR 0010P 2
2PK 40.00 33.00 7.65 PUR 0010P 2
