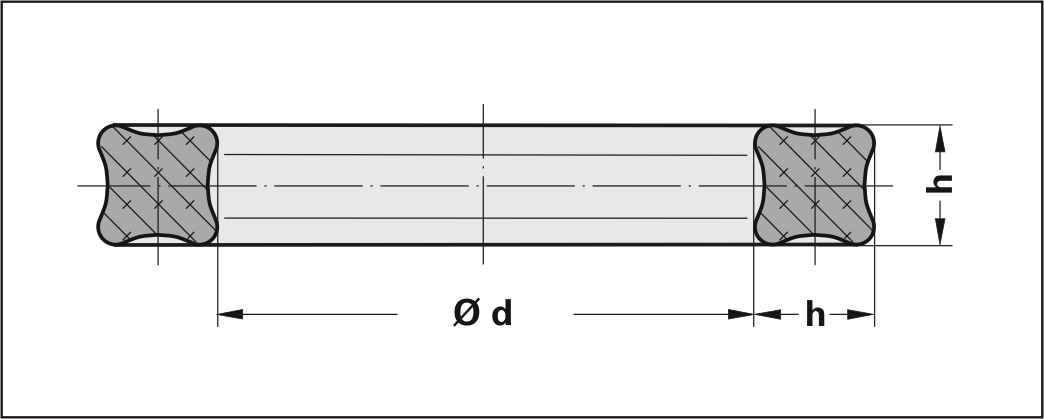

X-ring XR0

X-ring for static and dynamic applications. Advantage: less tendency to twist than an O-ring.

Application Range
Pressure (dyn., no back-up ring): ≤ 50 bar
Pressure (dyn., with back-up ring): ≤ 300 bar
Pressure (stat., no back-up ring): ≤ 50 bar
Pressure (stat., with back-up ring): ≤ 400 bar
Temperature: -30 °C / +100 °C
Sliding Speed for lin. movement: ≤ 0,5 m/s
Standard Material: NBR

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.
