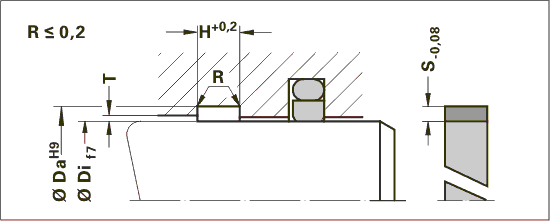

Wear Rings FÜB1
Compound Fabric Wear Rings, oblique slot, are mainly used in hydraulics and machine building. They perform the function of guiding rods, prevent them from making metallic contact and absorb radial forces. In the material POM also available in special dimensions at short notice from routine production.
Application Range
Temperature: -50 °C / +120 °C
Sliding Speed: ≤ 0,5/0,8 m/s (depends on the amterial selected)
Materials:
- Synthetic woven fabric with a specially modified phenolic resin impregnated and PTFE additives (2000K)
- Phenolic resin impregnated cotton fabric (1000K)
- Phenolic resin impregnated fine cotton fabric (0051K)
- Resin impregnated plastics fabric with PTFE additives (1030 - 0052K)
- Resin impregnated plastics fabric with graphite additives (0942 - 0052K)
Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.
Load product catalogWear Rings FÜB1
Are you missing materials or dimensions?
Feel free to contact us!
Our sealing experts will be happy to advise you!
Filter
| Di [mm] | Da [mm] | H [mm] | |
|---|---|---|---|
| Min: | |||
| Max: |
| Material selection | |
|---|---|
| Material: | |
| Material No. |
| V | |
|---|---|
| Profile | Di [mm] | Da [mm] | H [mm] | Material | Mat. No. | V | Quantity |
|---|---|---|---|---|---|---|---|
| FUEB1 | 56.00 | 61.00 | 9.70 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 180.00 | 185.00 | 15.00 | laminated fabric | 0052K | 1 |
|
| FUEB1 | 200.00 | 208.00 | 25.00 | laminated fabric | 0052K | 2 |
|
| FUEB1 | 45.00 | 50.00 | 6.30 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 160.00 | 165.00 | 25.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 160.00 | 165.00 | 20.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 165.00 | 170.00 | 15.00 | laminated fabric | 1000K | 1 |
|
| FUEB1 | 20.00 | 23.10 | 4.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 120.00 | 125.00 | 5.60 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 110.00 | 115.00 | 9.70 | laminated fabric | 0052K | 2 |
|
| FUEB1 | 40.00 | 45.00 | 15.00 | laminated fabric | 2001K | 1 |
|
| FUEB1 | 105.00 | 110.00 | 15.00 | laminated fabric | 0149K | 1 |
|
| FUEB1 | 90.00 | 95.00 | 15.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 76.07 | 80.00 | 9.80 | 0000A | 0000A | 2 |
|
| FUEB1 | 115.00 | 120.00 | 15.00 | laminated fabric | 1000K | 2 |
|
| FUEB1 | 115.00 | 120.00 | 15.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 65.00 | 70.00 | 15.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 36.00 | 41.00 | 9.70 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 60.00 | 65.00 | 15.00 | laminated fabric | 2001K | 1 |
|
| FUEB1 | 60.00 | 65.00 | 25.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 85.00 | 90.00 | 9.70 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 260.00 | 265.00 | 9.70 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 160.00 | 165.00 | 15.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 165.00 | 170.00 | 25.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 60.00 | 66.00 | 12.80 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 240.00 | 245.00 | 25.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 36.00 | 41.00 | 5.60 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 50.00 | 55.00 | 5.60 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 120.00 | 125.00 | 15.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 110.00 | 115.00 | 9.70 | laminated fabric | 2001K | 1 |
|
| FUEB1 | 240.00 | 245.00 | 15.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 155.00 | 160.00 | 15.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 245.00 | 250.00 | 20.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 35.00 | 40.00 | 5.60 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 63.00 | 68.00 | 15.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 180.00 | 185.00 | 25.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 200.00 | 210.00 | 55.00 | laminated fabric | 1005K | 2 |
|
| FUEB1 | 25.00 | 30.00 | 5.60 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 62.00 | 65.00 | 9.70 | 0000A | 0000A | 2 |
|
| FUEB1 | 28.00 | 33.00 | 5.60 | laminated fabric | 2001K | 2 |
|
| FUEB1 | 70.00 | 75.00 | 15.00 | laminated fabric | 2001K | 1 |
|
| FUEB1 | 135.00 | 140.00 | 15.00 | laminated fabric | 1000K | 1 |
|
| FUEB1 | 100.00 | 106.00 | 12.70 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 101.00 | 107.00 | 9.70 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 175.00 | 180.00 | 25.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 165.00 | 170.00 | 15.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 25.00 | 28.10 | 4.00 | laminated fabric | 5500K | 1 |
|
| FUEB1 | 195.00 | 200.00 | 9.70 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 195.00 | 200.00 | 15.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 60.00 | 65.00 | 15.00 | 2004K | 2 |
|
|
| FUEB1 | 60.00 | 66.00 | 15.00 | 0000A | 0000A | 2 |
|
| FUEB1 | 50.00 | 56.00 | 9.70 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 85.00 | 90.00 | 15.00 | laminated fabric | 1000K | 1 |
|
| FUEB1 | 45.00 | 50.00 | 20.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 275.00 | 280.00 | 40.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 55.00 | 60.00 | 9.70 | laminated fabric | 1000K | 2 |
|
| FUEB1 | 195.00 | 200.00 | 20.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 28.00 | 33.00 | 5.60 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 45.00 | 50.00 | 20.00 | laminated fabric | 2001K | 2 |
|
| FUEB1 | 125.00 | 130.00 | 20.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 125.00 | 130.00 | 25.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 205.00 | 210.00 | 25.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 200.00 | 205.00 | 15.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 75.00 | 80.00 | 15.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 182.00 | 190.00 | 25.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 45.00 | 50.00 | 9.70 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 63.00 | 68.00 | 25.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 60.00 | 65.00 | 15.00 | laminated fabric | 1000K | 1 |
|
| FUEB1 | 70.00 | 75.00 | 15.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 40.00 | 45.00 | 5.60 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 140.00 | 148.00 | 50.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 30.00 | 35.00 | 9.70 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 28.00 | 31.10 | 4.00 | 0000A | 0000A | 2 |
|
| FUEB1 | 55.00 | 60.00 | 9.70 | laminated fabric | 0052K | 1 |
|
| FUEB1 | 175.00 | 180.00 | 25.00 | laminated fabric | 1000K | 1 |
|
| FUEB1 | 155.00 | 160.00 | 9.70 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 50.00 | 55.00 | 15.00 | laminated fabric | 2001K | 1 |
|
| FUEB1 | 75.00 | 80.00 | 20.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 192.00 | 200.00 | 30.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 60.00 | 65.00 | 5.60 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 570.00 | 575.00 | 25.00 | PTFE-Compound | 0017T | 2 |
|
| FUEB1 | 380.00 | 385.00 | 25.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 380.00 | 385.00 | 30.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 135.00 | 140.00 | 15.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 56.00 | 61.00 | 9.70 | laminated fabric | 1000K | 1 |
|
| FUEB1 | 200.00 | 205.00 | 25.00 | laminated fabric | 2001K | 1 |
|
| FUEB1 | 70.00 | 75.00 | 9.70 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 28.00 | 31.00 | 5.60 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 25.00 | 28.00 | 5.70 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 70.00 | 75.00 | 15.00 | laminated fabric | 2001K | 1 |
|
| FUEB1 | 95.00 | 100.00 | 15.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 30.00 | 35.00 | 5.60 | laminated fabric | 2001K | 1 |
|
| FUEB1 | 40.00 | 45.00 | 9.70 | laminated fabric | 2001K | 1 |
|
| FUEB1 | 20.00 | 25.00 | 4.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 25.00 | 30.00 | 5.60 | 0004A | 0004A | 1 |
|
| FUEB1 | 50.00 | 55.00 | 9.70 | laminated fabric | 2001K | 1 |
|
| FUEB1 | 75.00 | 80.00 | 6.30 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 125.00 | 133.00 | 25.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 58.00 | 63.00 | 6.30 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 45.00 | 50.00 | 9.70 | laminated fabric | 2001K | 2 |
|
| FUEB1 | 125.00 | 130.00 | 9.70 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 38.00 | 41.00 | 9.70 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 22.00 | 27.00 | 9.70 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 80.00 | 85.00 | 25.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 63.00 | 68.00 | 5.60 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 320.00 | 325.00 | 25.00 | laminated fabric | T200K | 1 |
|
| FUEB1 | 12.00 | 15.00 | 5.60 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 145.00 | 150.00 | 15.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 190.00 | 195.00 | 25.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 58.00 | 63.00 | 5.60 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 65.00 | 70.00 | 9.70 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 32.00 | 35.10 | 4.00 | 0000A | 0000A | 2 |
|
| FUEB1 | 70.00 | 75.00 | 25.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 50.00 | 55.00 | 15.00 | 2004K | 2 |
|
|
| FUEB1 | 25.00 | 30.00 | 6.30 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 275.00 | 280.00 | 25.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 315.00 | 320.00 | 25.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 330.00 | 335.00 | 25.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 350.00 | 355.00 | 40.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 305.00 | 310.00 | 30.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 370.00 | 375.00 | 25.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 280.00 | 285.00 | 40.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 270.00 | 275.00 | 25.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 265.00 | 270.00 | 15.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 260.00 | 265.00 | 15.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 245.00 | 250.00 | 25.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 235.00 | 250.00 | 25.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 215.00 | 220.00 | 25.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 210.00 | 215.00 | 30.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 225.00 | 230.00 | 25.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 200.00 | 205.00 | 25.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 200.00 | 205.00 | 25.00 | laminated fabric | 0052K | 2 |
|
| FUEB1 | 202.00 | 210.00 | 25.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 200.00 | 208.00 | 25.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 180.00 | 185.00 | 25.00 | laminated fabric | 0052K | 1 |
|
| FUEB1 | 155.00 | 160.00 | 25.00 | laminated fabric | 1000K | 1 |
|
| FUEB1 | 155.00 | 160.00 | 25.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 150.00 | 155.00 | 25.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 150.00 | 155.00 | 20.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 150.00 | 155.00 | 15.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 140.00 | 145.00 | 15.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 140.00 | 145.00 | 9.70 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 125.00 | 130.00 | 25.00 | 2004K | 2 |
|
|
| FUEB1 | 125.00 | 130.00 | 15.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 120.00 | 125.00 | 22.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 110.00 | 115.00 | 20.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 115.00 | 120.00 | 9.70 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 105.00 | 110.00 | 15.00 | laminated fabric | 2001K | 1 |
|
| FUEB1 | 105.00 | 110.00 | 15.00 | laminated fabric | 0150K | 1 |
|
| FUEB1 | 75.00 | 80.00 | 9.70 | laminated fabric | 1000K | 1 |
|
| FUEB1 | 70.00 | 75.00 | 25.00 | laminated fabric | 1000K | 1 |
|
| FUEB1 | 27.00 | 32.00 | 5.60 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 100.00 | 105.00 | 15.00 | laminated fabric | 0052K | 2 |
|
| FUEB1 | 63.00 | 68.00 | 9.70 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 58.00 | 63.00 | 15.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 58.00 | 63.00 | 12.70 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 55.00 | 60.00 | 25.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 50.00 | 55.00 | 20.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 50.00 | 55.00 | 5.60 | laminated fabric | 2001K | 2 |
|
| FUEB1 | 40.00 | 45.00 | 9.70 | laminated fabric | 2001K | 1 |
|
| FUEB1 | 40.00 | 44.00 | 9.60 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 40.00 | 43.00 | 5.60 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 28.00 | 33.00 | 15.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 25.00 | 30.00 | 15.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 120.00 | 125.00 | 20.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 20.00 | 24.00 | 4.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 90.00 | 95.00 | 5.60 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 35.00 | 40.00 | 15.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 20.00 | 23.00 | 15.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 12.00 | 15.00 | 9.70 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 11.00 | 14.10 | 4.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 255.00 | 260.00 | 25.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 50.00 | 55.00 | 9.70 | laminated fabric | 2001K | 1 |
|
| FUEB1 | 100.00 | 105.00 | 15.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 20.00 | 25.00 | 5.60 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 120.00 | 125.00 | 25.00 | laminated fabric | 1000K | 1 |
|
| FUEB1 | 36.00 | 41.00 | 9.70 | laminated fabric | 2001K | 1 |
|
| FUEB1 | 135.00 | 140.00 | 25.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 60.00 | 66.00 | 25.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 210.00 | 215.00 | 25.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 250.00 | 255.00 | 25.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 380.00 | 388.00 | 40.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 32.00 | 37.00 | 9.70 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 25.00 | 30.00 | 9.70 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 105.00 | 110.00 | 5.60 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 395.00 | 400.00 | 25.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 135.00 | 140.00 | 25.00 | laminated fabric | 1000K | 1 |
|
| FUEB1 | 50.00 | 56.00 | 25.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 32.00 | 37.00 | 5.60 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 175.00 | 180.00 | 15.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 100.00 | 105.00 | 20.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 155.00 | 160.00 | 15.00 | laminated fabric | 1000K | 1 |
|
| FUEB1 | 28.00 | 33.00 | 9.70 | laminated fabric | 2001K | 2 |
|
| FUEB1 | 195.00 | 200.00 | 25.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 28.00 | 33.00 | 9.70 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 50.80 | 55.80 | 9.70 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 80.00 | 85.00 | 5.60 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 70.00 | 75.00 | 5.60 | laminated fabric | 2001K | 2 |
|
| FUEB1 | 198.20 | 203.20 | 9.70 | laminated fabric | 1000K | 1 |
|
| FUEB1 | 60.00 | 65.00 | 20.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 80.00 | 86.00 | 30.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 750.00 | 758.00 | 10.00 | laminated fabric | T200K | 1 |
|
| FUEB1 | 300.00 | 305.00 | 25.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 260.00 | 265.00 | 40.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 250.00 | 255.00 | 15.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 130.00 | 135.00 | 9.70 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 50.00 | 56.00 | 9.60 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 235.00 | 240.00 | 25.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 145.00 | 150.00 | 9.70 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 70.00 | 75.00 | 25.00 | laminated fabric | 1005K | 1 |
|
| FUEB1 | 45.00 | 50.00 | 5.60 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 40.00 | 45.00 | 15.00 | laminated fabric | 2001K | 1 |
|
| FUEB1 | 90.00 | 95.00 | 9.70 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 40.00 | 45.00 | 15.00 | 2004K | 1 |
|
|
| FUEB1 | 16.00 | 21.00 | 5.60 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 120.00 | 125.00 | 9.70 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 80.00 | 85.00 | 15.00 | laminated fabric | 1000K | 1 |
|
| FUEB1 | 50.00 | 55.00 | 15.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 70.00 | 75.00 | 15.00 | laminated fabric | 2001K | 1 |
|
| FUEB1 | 220.00 | 225.00 | 15.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 45.00 | 50.00 | 15.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 40.00 | 44.00 | 9.70 | PTFE-Compound | 0005T | 1 |
|
| FUEB1 | 130.00 | 135.00 | 15.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 80.00 | 85.00 | 5.60 | laminated fabric | 2001K | 2 |
|
| FUEB1 | 35.00 | 40.00 | 9.70 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 180.00 | 185.00 | 15.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 185.00 | 193.00 | 25.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 152.00 | 157.00 | 25.00 | laminated fabric | 1000K | 1 |
|
| FUEB1 | 70.00 | 75.00 | 9.70 | laminated fabric | 1000K | 1 |
|
| FUEB1 | 135.00 | 140.00 | 12.70 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 215.00 | 220.00 | 15.00 | laminated fabric | 1000K | 1 |
|
| FUEB1 | 75.00 | 80.00 | 9.70 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 170.00 | 175.00 | 25.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 80.00 | 85.00 | 15.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 22.00 | 25.00 | 5.60 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 330.00 | 338.00 | 25.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 40.00 | 45.00 | 9.70 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 105.00 | 110.00 | 9.70 | 0004A | 0004A | 1 |
|
| FUEB1 | 800.00 | 808.00 | 20.00 | laminated fabric | T200K | 1 |
|
| FUEB1 | 30.00 | 33.00 | 5.70 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 120.00 | 125.00 | 25.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 70.00 | 75.00 | 5.60 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 100.00 | 105.00 | 25.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 28.00 | 32.00 | 9.60 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 32.00 | 37.00 | 15.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 70.00 | 75.00 | 20.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 70.00 | 75.00 | 12.50 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 100.00 | 105.00 | 12.70 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 1050.00 | 1058.00 | 20.00 | laminated fabric | T200K | 2 |
|
| FUEB1 | 55.00 | 60.00 | 15.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 85.00 | 90.00 | 15.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 140.00 | 145.00 | 25.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 170.00 | 175.00 | 15.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 95.00 | 100.00 | 9.70 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 130.00 | 135.00 | 25.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 55.00 | 60.00 | 9.70 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 30.00 | 35.00 | 15.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 140.00 | 145.00 | 20.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 150.00 | 155.00 | 9.70 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 80.00 | 85.00 | 9.70 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 30.00 | 33.00 | 5.60 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 110.00 | 115.00 | 9.70 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 230.00 | 235.00 | 25.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 145.00 | 150.00 | 25.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 425.00 | 430.00 | 40.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 135.00 | 140.00 | 20.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 125.00 | 131.00 | 40.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 60.00 | 65.00 | 15.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 220.00 | 225.00 | 25.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 220.00 | 228.00 | 25.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 50.00 | 55.00 | 9.70 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 90.00 | 95.00 | 25.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 40.00 | 45.00 | 12.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 850.00 | 858.00 | 30.00 | laminated fabric | T550K | 2 |
|
| FUEB1 | 352.00 | 360.00 | 25.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 185.00 | 190.00 | 20.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 80.00 | 85.00 | 20.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 30.00 | 35.00 | 20.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 90.00 | 95.00 | 15.00 | laminated fabric | 1000K | 1 |
|
| FUEB1 | 215.00 | 220.00 | 15.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 260.00 | 265.00 | 30.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 100.00 | 105.00 | 9.70 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 85.00 | 90.00 | 9.70 | laminated fabric | 1000K | 1 |
|
| FUEB1 | 70.00 | 75.00 | 25.00 | 2004K | 1 |
|
|
| FUEB1 | 115.00 | 120.00 | 25.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 310.00 | 315.00 | 15.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 22.00 | 27.00 | 5.60 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 36.00 | 41.00 | 15.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 55.00 | 60.00 | 15.00 | laminated fabric | 2001K | 1 |
|
| FUEB1 | 300.00 | 308.00 | 30.00 | laminated fabric | T550K | 2 |
|
| FUEB1 | 40.00 | 45.00 | 9.70 | 2004K | 2 |
|
|
| FUEB1 | 400.00 | 405.00 | 25.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 80.00 | 84.00 | 8.10 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 255.00 | 260.00 | 15.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 90.00 | 95.00 | 20.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 40.00 | 45.00 | 9.70 | laminated fabric | 2001K | 1 |
|
| FUEB1 | 75.00 | 80.00 | 5.60 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 185.00 | 190.00 | 25.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 38.00 | 41.00 | 5.60 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 30.00 | 35.00 | 5.60 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 110.00 | 115.00 | 25.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 180.00 | 185.00 | 20.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 58.00 | 63.00 | 9.70 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 95.00 | 100.00 | 15.00 | laminated fabric | 1000K | 1 |
|
| FUEB1 | 185.00 | 190.00 | 15.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 40.00 | 45.00 | 20.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 105.00 | 110.00 | 15.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 55.00 | 60.00 | 5.60 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 36.00 | 41.00 | 25.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 105.00 | 110.00 | 9.70 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 280.00 | 285.00 | 25.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 110.00 | 115.00 | 15.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 40.00 | 45.00 | 15.00 | laminated fabric | 2000K | 1 |
|
| FUEB1 | 40.00 | 45.00 | 15.00 | laminated fabric | 2001K | 1 |
|
| FUEB1 | 140.00 | 148.00 | 25.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 355.00 | 360.00 | 25.00 | laminated fabric | 2000K | 2 |
|
| FUEB1 | 38.00 | 43.00 | 15.00 | laminated fabric | 2000K | 1 |
|
