Lip Seal 1H4

Lip seal with 2 sealing lips, O-ring and back-up ring for the toughest operating conditions in hydraulic applications.

Application Range
Pressure: ≤ 500 bar (≤ 1000 bar peak pressure)
Temperature (mineral oils: -35 °C / +110 °C
Sliding Speed: ≤ 0,5 m/s
Standard Material: PUR/PA, NBR

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Load product catalog

Are you missing materials or dimensions?

Feel free to contact us!

Our sealing experts will be happy to advise you!

+49(201)86606-0 or vk@techno-parts.de

Filter

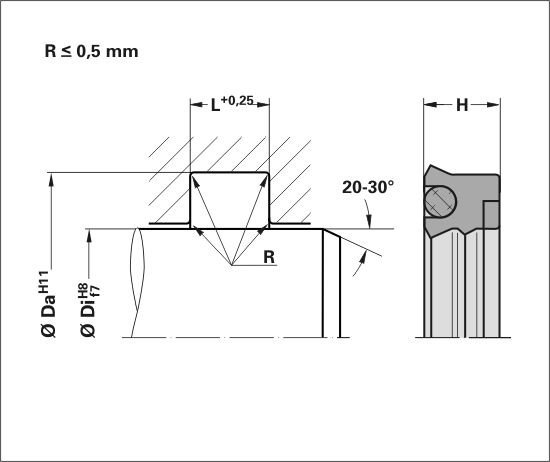

d [mm] D [mm] H [mm] L [mm]
Min:
Max:
Material selection
Material:
Material No.
V
Profile d [mm] D [mm] H [mm] L [mm] Material Mat. No. V Quantity
1H4 125.00 145.00 14.50 16.00 PUR 0007P 1
1H4 200.00 230.00 22.70 25.00 PUR 0007P 1
1H4 190.00 215.00 18.20 20.00 PUR 0007P 2
1H4 130.00 150.00 14.50 16.00 PUR 0001P 1
1H4 56.00 71.00 11.40 12.50 PUR 0007P 2
1H4 160.00 180.00 14.50 16.00 PUR 0007P 1
1H4 60.00 75.00 11.40 12.50 PUR 0007P 2
1H4 65.00 80.00 11.40 12.50 PUR 0007P 1
1H4 75.00 90.00 11.40 12.50 PUR 0007P 1
1H4 210.00 240.00 22.70 25.00 PUR 0007P 2
1H4 180.00 205.00 18.20 20.00 PUR 0007P 2
1H4 40.00 55.00 11.40 12.50 PUR 0007P 1
1H4 80.00 95.00 11.40 12.50 PUR 0007P 1
1H4 50.00 65.00 11.40 12.50 PUR 0007P 1
1H4 95.00 110.00 12.00 13.00 PUR 0001P 2
1H4 63.00 78.00 11.40 12.50 PUR 0007P 1
1H4 100.00 115.00 12.00 13.00 PUR 0007P 2
1H4 70.00 85.00 11.40 12.50 PUR 0007P 1
1H4 120.00 140.00 14.50 16.00 PUR 0007P 1
1H4 230.00 260.00 22.70 25.00 PUR 0007P 2
1H4 110.00 130.00 14.50 16.00 PUR 0007P 1
1H4 100.00 120.00 14.50 16.00 PUR 0007P 1
1H4 130.00 150.00 14.50 16.00 PUR 0007P 1
1H4 140.00 160.00 14.50 16.00 PUR 0007P 1
1H4 240.00 270.00 22.70 25.00 PUR 0007P 2
1H4 90.00 105.00 11.40 12.50 PUR 0007P 1
1H4 85.00 100.00 11.40 12.50 PUR 0007P 1
1H4 100.00 120.00 13.50 15.00 PUR 0007P 2
1H4 220.00 250.00 22.70 25.00 PUR 0007P 2
1H4 150.00 170.00 14.50 16.00 PUR 0007P 1
1H4 190.00 215.00 18.50 0.00 PUR 0001P 2
1H4 170.00 190.00 14.50 16.00 PUR 0007P 2
