Multi-Part Compact Seal 2H6

Multi-part compact seal with increased wear resistance for medium to heavy-duty hydraulic
applications, for closed grooves in standard hydraulic cylinders.

Application Range
Pressure: ≤ 400 bar
Temperature: -30 °C / +100 °C
Sliding Speed: ≤ 0,5 m/s
Standard Material: PUR

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Are you missing materials or dimensions?

Feel free to contact us!

Our sealing experts will be happy to advise you!

+49(201)86606-0 or vk@techno-parts.de

Filter

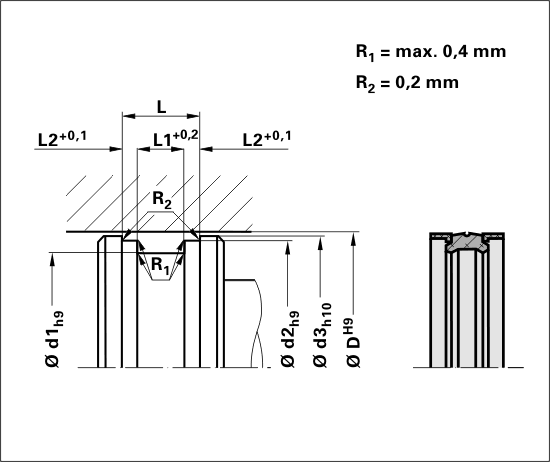

D [mm] d [mm] H [mm] L [mm]
Min:
Max:
Material selection
Material:
Material No.
V
Profile D [mm] d [mm] H [mm] L [mm] Material Mat. No. V Quantity
2H6 100.00 85.00 20.00 30.00 PUR 0093P 2
2H6 25.00 17.00 10.00 18.00 PUR 0093P 2
2H6 40.00 32.00 10.00 18.00 PUR 0001P 1
2H6 63.00 53.00 12.50 20.50 PUR 0093P 2
2H6 80.00 65.00 20.00 30.00 PUR 0093P 2
2H6 32.00 24.00 10.00 18.00 PUR 0093P 2
