Lip Seal 2H0
Lip seal for standard hydraulic and pneumatic applications.
Application Range
Hydraulics:
Pressure: ≤ 160 bar
Temperature: -25 °C / +100 °C
Sliding Speed: ≤ 0,5 m/s
Standard Material: NBR
Pneumatics:
Pressure: ≤ 16 bar
Temperature: -25 °C / +80 °C
Sliding Speed: ≤ 1 m/s
Standard Material: NBR
Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.
Load product catalogLip Seal 2H0
Are you missing materials or dimensions?
Feel free to contact us!
Our sealing experts will be happy to advise you!
Filter

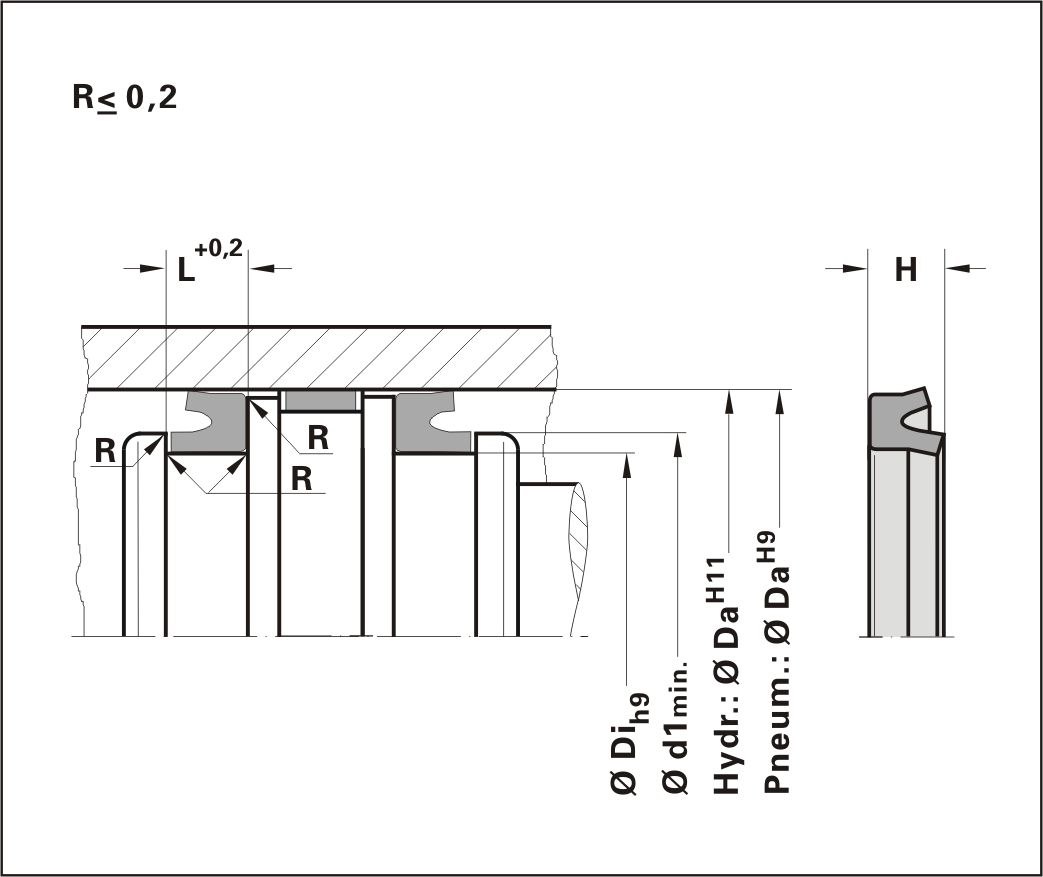

| Da [mm] | Di [mm] | H [mm] | L [mm] | |
|---|---|---|---|---|
| Min: | ||||
| Max: |
| Material selection | |
|---|---|
| Material: | |
| Material No. |
| V | |
|---|---|
| Profile | Da [mm] | Di [mm] | H [mm] | L [mm] | Material | Mat. No. | V | Quantity |
|---|---|---|---|---|---|---|---|---|
| 2H0 | 95.00 | 83.00 | 8.50 | 9.50 | FKM | 0085V | 2 |
|
| 2H0 | 240.00 | 220.00 | 14.00 | 15.00 | NBR | 0026N | 2 |
|
| 2H0 | 150.00 | 135.00 | 10.00 | 11.00 | FKM | 0085V | 2 |
|
| 2H0 | 20.00 | 14.00 | 4.20 | 4.70 | NBR | 0026N | 2 |
|
| 2H0 | 35.00 | 25.00 | 7.00 | 7.50 | EPDM | 0004E | 1 |
|
| 2H0 | 250.00 | 220.00 | 22.00 | 0.00 | PUR | 0064P | 2 |
|
| 2H0 | 5.00 | 2.00 | 2.20 | 2.50 | NBR | 0026N | 1 |
|
| 2H0 | 6.00 | 2.50 | 2.00 | 2.30 | NBR | 0026N | 1 |
|
| 2H0 | 6.00 | 3.00 | 3.00 | 3.50 | FKM | 0012V | 2 |
|
| 2H0 | 8.00 | 3.00 | 3.50 | 4.00 | NBR | 0026N | 1 |
|
| 2H0 | 8.00 | 5.00 | 4.00 | 4.50 | FKM | 0013V | 2 |
|
| 2H0 | 9.50 | 4.50 | 3.50 | 4.00 | EPDM | 0004E | 2 |
|
| 2H0 | 10.00 | 3.00 | 4.00 | 4.50 | NBR | 0026N | 2 |
|
| 2H0 | 10.00 | 5.00 | 3.50 | 4.00 | FKM | 0013V | 2 |
|
| 2H0 | 10.00 | 5.00 | 3.50 | 4.00 | NBR | 0026N | 1 |
|
| 2H0 | 10.00 | 5.00 | 3.50 | 4.00 | NBR | 0015N | 1 |
|
| 2H0 | 10.00 | 6.00 | 4.20 | 4.70 | FKM | 0085V | 2 |
|
| 2H0 | 11.00 | 6.00 | 4.00 | 4.50 | NBR | 0026N | 2 |
|
| 2H0 | 11.00 | 7.00 | 3.00 | 3.50 | FKM | 0085V | 2 |
|
| 2H0 | 12.00 | 6.00 | 4.00 | 4.50 | NBR | 0026N | 1 |
|
| 2H0 | 12.00 | 8.00 | 3.00 | 3.50 | FKM | 0013V | 1 |
|
| 2H0 | 12.00 | 8.00 | 3.00 | 3.50 | NBR | 0026N | 1 |
|
| 2H0 | 13.00 | 7.00 | 4.00 | 4.50 | NBR | 0026N | 1 |
|
| 2H0 | 13.00 | 7.00 | 4.00 | 4.50 | FKM | 0013V | 2 |
|
| 2H0 | 13.50 | 8.00 | 4.00 | 4.50 | NBR | 0026N | 2 |
|
| 2H0 | 14.00 | 6.00 | 5.50 | 6.00 | NBR | 0026N | 1 |
|
| 2H0 | 14.00 | 8.00 | 4.00 | 4.50 | NBR | 0026N | 1 |
|
| 2H0 | 15.00 | 7.00 | 5.50 | 6.00 | FKM | 0013V | 2 |
|
| 2H0 | 15.00 | 7.00 | 5.50 | 6.00 | NBR | 0026N | 1 |
|
| 2H0 | 15.00 | 7.00 | 5.50 | 6.00 | FKM | 0085V | 2 |
|
| 2H0 | 90.00 | 70.00 | 12.00 | 13.00 | NBR | 0026N | 2 |
|
| 2H0 | 50.00 | 40.00 | 7.00 | 7.50 | NBR | 0026N | 1 |
|
| 2H0 | 16.00 | 8.00 | 5.50 | 6.00 | NBR | 0026N | 1 |
|
| 2H0 | 16.00 | 10.00 | 4.00 | 4.50 | EPDM | 0004E | 2 |
|
| 2H0 | 16.00 | 10.00 | 6.00 | 6.50 | NBR | 0026N | 2 |
|
| 2H0 | 18.00 | 10.00 | 5.50 | 6.00 | NBR | 0022N | 2 |
|
| 2H0 | 18.00 | 10.00 | 5.50 | 6.00 | NBR | 0026N | 1 |
|
| 2H0 | 19.05 | 10.50 | 5.50 | 6.00 | NBR | 0026N | 1 |
|
| 2H0 | 19.05 | 10.50 | 5.50 | 6.00 | NBR | 0085N | 2 |
|
| 2H0 | 20.00 | 10.00 | 7.00 | 7.50 | NBR | 0026N | 2 |
|
| 2H0 | 20.00 | 12.00 | 5.50 | 0.00 | FKM | 0085V | 2 |
|
| 2H0 | 20.00 | 12.00 | 5.50 | 6.00 | FKM | 0013V | 2 |
|
| 2H0 | 20.00 | 12.00 | 5.50 | 6.00 | EPDM | 0004E | 1 |
|
| 2H0 | 22.00 | 14.00 | 5.50 | 6.00 | FKM | 0013V | 2 |
|
| 2H0 | 24.00 | 16.00 | 5.50 | 6.00 | FKM | 0013V | 2 |
|
| 2H0 | 24.00 | 16.00 | 5.50 | 6.00 | NBR | 0026N | 1 |
|
| 2H0 | 24.00 | 16.00 | 5.50 | 6.00 | HNBR | 0094N | 2 |
|
| 2H0 | 25.00 | 17.00 | 5.50 | 6.00 | NBR | 0015N | 2 |
|
| 2H0 | 7.50 | 4.00 | 2.00 | 2.30 | NBR | 0026N | 1 |
|
| 2H0 | 55.00 | 45.00 | 7.00 | 7.50 | FKM | 0085V | 1 |
|
| 2H0 | 4.00 | 1.50 | 1.70 | 2.00 | HNBR | 0099N | 2 |
|
| 2H0 | 50.00 | 40.00 | 7.00 | 7.50 | HNBR | 0093N | 2 |
|
| 2H0 | 80.00 | 68.00 | 8.50 | 9.50 | NBR | 0026N | 1 |
|
| 2H0 | 160.00 | 140.00 | 14.00 | 15.00 | NBR | 0026N | 2 |
|
| 2H0 | 160.00 | 145.00 | 10.00 | 11.00 | FKM | 0013V | 2 |
|
| 2H0 | 160.00 | 145.00 | 10.00 | 11.00 | FKM | 0085V | 2 |
|
| 2H0 | 160.00 | 145.00 | 10.00 | 11.00 | FKM | 0256V | 1 |
|
| 2H0 | 170.00 | 140.00 | 15.50 | 16.50 | NBR | 0085N | 2 |
|
| 2H0 | 36.00 | 26.00 | 7.00 | 7.50 | HNBR | 0098N | 1 |
|
| 2H0 | 100.00 | 90.00 | 7.00 | 7.50 | NBR | 0026N | 1 |
|
| 2H0 | 50.00 | 36.00 | 10.00 | 11.00 | NBR | 0026N | 2 |
|
| 2H0 | 140.00 | 120.00 | 14.00 | 15.00 | NBR | 0085N | 2 |
|
| 2H0 | 65.00 | 55.00 | 7.00 | 7.50 | FKM | 0013V | 2 |
|
| 2H0 | 32.00 | 22.00 | 7.00 | 7.50 | EPDM | 0004E | 2 |
|
| 2H0 | 16.00 | 10.00 | 4.00 | 4.50 | FKM | 0011V | 2 |
|
| 2H0 | 26.00 | 18.00 | 5.50 | 6.00 | FKM | 0085V | 2 |
|
| 2H0 | 28.00 | 18.00 | 8.00 | 8.50 | NBR | 0085N | 2 |
|
| 2H0 | 28.00 | 20.00 | 5.50 | 6.00 | FKM | 0013V | 2 |
|
| 2H0 | 28.00 | 20.00 | 5.50 | 6.00 | NBR | 0026N | 1 |
|
| 2H0 | 28.00 | 20.00 | 5.50 | 6.00 | FKM | 0085V | 2 |
|
| 2H0 | 30.00 | 16.00 | 10.00 | 11.00 | NBR | 0026N | 2 |
|
| 2H0 | 30.00 | 22.00 | 3.25 | 3.50 | FKM | 0085V | 2 |
|
| 2H0 | 30.00 | 22.00 | 5.50 | 6.00 | FKM | 0013V | 2 |
|
| 2H0 | 30.00 | 22.00 | 5.50 | 6.00 | EPDM | 0004E | 1 |
|
| 2H0 | 32.00 | 22.00 | 5.00 | 5.50 | NBR | 0026N | 2 |
|
| 2H0 | 32.00 | 22.00 | 7.00 | 7.50 | NBR | 0026N | 1 |
|
| 2H0 | 67.00 | 57.00 | 7.00 | 7.50 | FKM | 0085V | 1 |
|
| 2H0 | 39.69 | 26.99 | 6.36 | 6.85 | NBR | 0085N | 2 |
|
| 2H0 | 60.00 | 50.00 | 7.00 | 7.50 | FKM | 0013V | 2 |
|
| 2H0 | 48.00 | 40.00 | 5.50 | 6.00 | NBR | 0018N | 2 |
|
| 2H0 | 80.00 | 68.00 | 8.50 | 9.50 | FKM | 0256V | 2 |
|
| 2H0 | 45.00 | 37.00 | 6.00 | 6.50 | NBR | 0026N | 2 |
|
| 2H0 | 225.00 | 200.00 | 17.50 | 18.50 | NBR | 0026N | 1 |
|
| 2H0 | 25.00 | 17.00 | 5.50 | 6.00 | EPDM | 0004E | 2 |
|
| 2H0 | 65.00 | 53.00 | 10.00 | 11.00 | NBR | 0033N | 2 |
|
| 2H0 | 25.00 | 17.00 | 5.50 | 6.00 | FKM | 0013V | 1 |
|
| 2H0 | 70.00 | 50.00 | 14.00 | 15.00 | NBR | 0026N | 2 |
|
| 2H0 | 50.00 | 40.00 | 7.00 | 7.50 | FKM | 0085V | 2 |
|
| 2H0 | 90.00 | 70.00 | 12.00 | 13.00 | FKM | 0013V | 2 |
|
| 2H0 | 48.00 | 40.00 | 5.50 | 6.00 | NBR | 0026N | 2 |
|
| 2H0 | 60.00 | 50.00 | 7.00 | 7.50 | NBR | 0026N | 1 |
|
| 2H0 | 60.00 | 50.00 | 7.00 | 7.50 | HNBR | 0086N | 2 |
|
| 2H0 | 60.00 | 50.00 | 7.00 | 7.50 | EPDM | 0084E | 2 |
|
| 2H0 | 60.00 | 50.00 | 10.00 | 11.00 | NBR | 0085N | 2 |
|
| 2H0 | 28.00 | 18.00 | 8.00 | 8.50 | NBR | 0026N | 2 |
|
| 2H0 | 20.00 | 12.00 | 5.50 | 6.00 | NBR | 0026N | 1 |
|
| 2H0 | 63.00 | 53.00 | 7.00 | 7.50 | NBR | 0026N | 1 |
|
| 2H0 | 62.00 | 46.00 | 12.00 | 13.00 | NBR | 0026N | 2 |
|
| 2H0 | 105.00 | 85.00 | 15.00 | 16.00 | NBR | 0022N | 2 |
|
| 2H0 | 50.00 | 42.00 | 8.00 | 8.50 | FKM | 0013V | 2 |
|
| 2H0 | 16.00 | 8.00 | 5.50 | 6.00 | FKM | 0013V | 2 |
|
| 2H0 | 63.00 | 53.00 | 7.00 | 7.50 | EPDM | 0004E | 2 |
|
| 2H0 | 46.00 | 36.00 | 7.00 | 7.50 | NBR | 0026N | 2 |
|
| 2H0 | 260.00 | 240.00 | 14.00 | 15.00 | NBR | 0026N | 2 |
|
| 2H0 | 30.00 | 18.00 | 8.00 | 8.50 | NBR | 0026N | 2 |
|
| 2H0 | 160.00 | 130.00 | 25.00 | 26.00 | NBR | 0026N | 2 |
|
| 2H0 | 39.69 | 26.99 | 6.35 | 6.85 | HNBR | 0094N | 2 |
|
| 2H0 | 19.05 | 10.50 | 5.50 | 6.00 | HNBR | 0094N | 2 |
|
| 2H0 | 8.00 | 5.00 | 4.00 | 4.50 | FKM | 0012V | 2 |
|
| 2H0 | 50.00 | 36.00 | 10.00 | 11.00 | FKM | 0013V | 2 |
|
| 2H0 | 30.16 | 20.63 | 6.35 | 6.85 | NBR | 0070N | 2 |
|
| 2H0 | 55.00 | 45.00 | 7.00 | 7.50 | FKM | 0013V | 1 |
|
| 2H0 | 26.00 | 18.00 | 5.50 | 6.00 | NBR | 0026N | 1 |
|
| 2H0 | 75.00 | 63.00 | 8.50 | 9.50 | NBR | 0026N | 1 |
|
| 2H0 | 240.00 | 220.00 | 14.00 | 15.00 | FKM | 0013V | 1 |
|
| 2H0 | 45.00 | 29.00 | 12.00 | 13.00 | NBR | 0085N | 2 |
|
| 2H0 | 20.00 | 10.00 | 7.00 | 7.50 | PUR | 0051P | 2 |
|
| 2H0 | 280.00 | 260.00 | 14.00 | 15.00 | FKM | 0013V | 1 |
|
| 2H0 | 300.00 | 280.00 | 15.00 | 16.00 | EPDM | 0004E | 2 |
|
| 2H0 | 120.00 | 100.00 | 15.00 | 16.00 | FKM | 0013V | 1 |
|
| 2H0 | 19.05 | 10.50 | 5.50 | 6.00 | FKM | 0013V | 1 |
|
| 2H0 | 30.00 | 20.00 | 7.00 | 7.50 | NBR | 0026N | 1 |
|
| 2H0 | 180.00 | 160.00 | 14.00 | 15.00 | NBR | 0026N | 2 |
|
| 2H0 | 4.00 | 1.50 | 1.70 | 2.00 | EPDM | 0004E | 2 |
|
| 2H0 | 300.00 | 280.00 | 15.00 | 16.00 | NBR | 0083N | 2 |
|
| 2H0 | 10.00 | 6.00 | 4.20 | 4.70 | NBR | 0026N | 1 |
|
| 2H0 | 80.00 | 60.00 | 14.00 | 15.00 | NBR | 0026N | 1 |
|
| 2H0 | 140.00 | 120.00 | 14.00 | 15.00 | NBR | 0033N | 1 |
|
| 2H0 | 38.00 | 28.00 | 7.00 | 7.50 | NBR | 0026N | 2 |
|
| 2H0 | 50.00 | 42.00 | 8.00 | 8.50 | NBR | 0026N | 2 |
|
| 2H0 | 22.00 | 14.00 | 5.50 | 6.00 | NBR | 0026N | 1 |
|
| 2H0 | 74.00 | 62.00 | 8.50 | 9.50 | NBR | 0026N | 2 |
|
| 2H0 | 60.00 | 50.00 | 10.00 | 11.00 | EPDM | 0084E | 2 |
|
| 2H0 | 35.00 | 25.00 | 7.00 | 7.50 | NBR | 0026N | 3 |
|
| 2H0 | 315.00 | 290.00 | 17.00 | 18.00 | NBR | 0026N | 2 |
|
| 2H0 | 220.00 | 200.00 | 14.00 | 15.00 | FKM | 0256V | 2 |
|
| 2H0 | 160.00 | 145.00 | 10.00 | 11.00 | NBR | 0083N | 2 |
|
| 2H0 | 38.00 | 28.00 | 7.00 | 7.50 | FKM | 0085V | 2 |
|
| 2H0 | 125.00 | 110.00 | 10.00 | 11.00 | NBR | 0026N | 1 |
|
| 2H0 | 150.00 | 135.00 | 10.00 | 11.00 | NBR | 0026N | 1 |
|
| 2H0 | 36.00 | 26.00 | 7.00 | 7.50 | NBR | 0026N | 1 |
|
| 2H0 | 35.00 | 25.00 | 7.00 | 7.50 | FKM | 0013V | 2 |
|
| 2H0 | 135.00 | 115.00 | 14.00 | 15.00 | NBR | 0085N | 2 |
|
| 2H0 | 50.80 | 41.28 | 7.93 | 8.43 | NBR | 0026N | 2 |
|
| 2H0 | 160.00 | 145.00 | 10.00 | 11.00 | NBR | 0026N | 1 |
|
| 2H0 | 16.00 | 10.00 | 4.00 | 4.50 | NBR | 0026N | 1 |
|
| 2H0 | 16.00 | 10.00 | 4.00 | 4.50 | FKM | 0013V | 2 |
|
| 2H0 | 67.00 | 57.00 | 7.00 | 7.50 | NBR | 0085N | 1 |
|
| 2H0 | 60.00 | 40.00 | 12.00 | 13.00 | NBR | 0085N | 2 |
|
| 2H0 | 300.00 | 280.00 | 15.00 | 16.00 | FKM | 0013V | 2 |
|
| 2H0 | 50.00 | 40.00 | 7.00 | 7.50 | EPDM | 0004E | 2 |
|
| 2H0 | 30.00 | 18.00 | 8.00 | 8.50 | FKM | 0085V | 2 |
|
| 2H0 | 60.33 | 47.63 | 6.35 | 6.85 | NBR | 0075N | 2 |
|
| 2H0 | 32.00 | 24.00 | 5.50 | 6.00 | NBR | 0026N | 2 |
|
| 2H0 | 8.00 | 5.00 | 4.00 | 0.00 | EPDM | 0004E | 1 |
|
| 2H0 | 25.00 | 17.00 | 5.50 | 6.00 | NBR | 0026N | 1 |
|
| 2H0 | 32.00 | 18.00 | 11.50 | 12.50 | NBR | 0085N | 2 |
|
| 2H0 | 145.00 | 130.00 | 10.00 | 11.00 | FKM | 0013V | 2 |
|
| 2H0 | 100.00 | 88.50 | 8.50 | 9.50 | EPDM | 0085E | 1 |
|
| 2H0 | 43.00 | 30.00 | 6.50 | 7.00 | NBR | 0085N | 2 |
|
| 2H0 | 80.00 | 68.00 | 8.50 | 9.50 | EPDM | 0004E | 2 |
|
| 2H0 | 320.00 | 290.00 | 21.00 | 22.00 | NBR | 0085N | 2 |
|
| 2H0 | 140.00 | 120.00 | 14.00 | 15.00 | NBR | 0026N | 2 |
|
| 2H0 | 50.00 | 42.00 | 8.00 | 8.50 | NBR | 0085N | 1 |
|
| 2H0 | 130.00 | 155.00 | 18.00 | 19.00 | NBR | 0085N | 2 |
|
| 2H0 | 40.00 | 32.00 | 5.50 | 6.00 | NBR | 0026N | 1 |
|
| 2H0 | 15.70 | 10.00 | 4.00 | 4.50 | NBR | 0026N | 2 |
|
| 2H0 | 160.00 | 140.00 | 14.00 | 15.00 | FKM | 0013V | 2 |
|
| 2H0 | 32.00 | 25.00 | 6.00 | 6.50 | NBR | 0090N | 2 |
|
| 2H0 | 125.00 | 110.00 | 10.00 | 11.00 | FKM | 0013V | 1 |
|
| 2H0 | 75.00 | 63.00 | 8.50 | 9.50 | FKM | 0085V | 2 |
|
| 2H0 | 7.50 | 4.00 | 2.00 | 2.30 | EPDM | 0030E | 2 |
|
| 2H0 | 6.00 | 3.00 | 3.00 | 3.50 | NBR | 0026N | 2 |
|
| 2H0 | 300.00 | 280.00 | 15.00 | 16.00 | NBR | 0026N | 1 |
|
| 2H0 | 350.00 | 320.00 | 21.00 | 22.00 | FKM | 0013V | 2 |
|
| 2H0 | 350.00 | 320.00 | 21.00 | 22.00 | NBR | 0026N | 1 |
|
| 2H0 | 350.00 | 320.00 | 21.00 | 22.00 | FKM | 0085V | 2 |
|
| 2H0 | 350.00 | 320.00 | 21.00 | 22.00 | NBR | 0085N | 2 |
|
| 2H0 | 350.00 | 320.00 | 21.00 | 22.00 | FKM | 0085V | 2 |
|
| 2H0 | 400.00 | 375.00 | 18.00 | 19.00 | FKM | 0085V | 2 |
|
| 2H0 | 500.00 | 475.00 | 18.00 | 19.00 | FKM | 0085V | 2 |
|
| 2H0 | 550.00 | 510.00 | 20.00 | 21.00 | NBR | 0085N | 2 |
|
| 2H0 | 70.00 | 54.00 | 12.00 | 13.00 | NBR | 0026N | 2 |
|
| 2H0 | 70.00 | 58.00 | 8.50 | 9.50 | NBR | 0026N | 1 |
|
| 2H0 | 73.03 | 63.50 | 5.55 | 6.00 | NBR | 0075N | 2 |
|
| 2H0 | 75.00 | 55.00 | 12.00 | 13.00 | NBR | 0026N | 2 |
|
| 2H0 | 75.00 | 59.00 | 12.00 | 13.00 | NBR | 0026N | 2 |
|
| 2H0 | 80.00 | 64.00 | 8.00 | 8.50 | NBR | 0026N | 2 |
|
| 2H0 | 80.00 | 68.00 | 8.50 | 9.50 | FKM | 0013V | 1 |
|
| 2H0 | 80.00 | 68.00 | 8.50 | 9.50 | NBR | 0083N | 1 |
|
| 2H0 | 80.00 | 68.00 | 8.50 | 9.50 | NBR | 0083N | 2 |
|
| 2H0 | 80.00 | 68.00 | 8.50 | 9.50 | NBR | 0085N | 2 |
|
| 2H0 | 80.00 | 68.00 | 8.50 | 9.50 | EPDM | 0084E | 2 |
|
| 2H0 | 85.00 | 73.00 | 8.50 | 9.50 | FKM | 0013V | 2 |
|
| 2H0 | 90.00 | 70.00 | 12.00 | 13.00 | NBR | 0085N | 2 |
|
| 2H0 | 90.00 | 70.00 | 12.00 | 13.00 | NBR | 0085N | 2 |
|
| 2H0 | 90.00 | 78.00 | 8.50 | 9.50 | FKM | 0013V | 2 |
|
| 2H0 | 90.00 | 78.00 | 8.50 | 9.50 | NBR | 0026N | 1 |
|
| 2H0 | 32.00 | 24.00 | 5.50 | 6.00 | FKM | 0013V | 2 |
|
| 2H0 | 100.00 | 90.00 | 7.00 | 7.50 | FKM | 0013V | 2 |
|
| 2H0 | 30.00 | 22.00 | 5.50 | 6.00 | NBR | 0026N | 1 |
|
| 2H0 | 40.00 | 30.00 | 7.00 | 7.50 | PUR | 0089P | 2 |
|
| 2H0 | 63.00 | 53.00 | 7.00 | 7.50 | FKM | 0013V | 1 |
|
| 2H0 | 31.75 | 19.05 | 6.35 | 6.85 | NBR | 0070N | 2 |
|
| 2H0 | 300.00 | 280.00 | 15.00 | 16.00 | FKM | 0256V | 2 |
|
| 2H0 | 130.00 | 115.00 | 10.00 | 11.00 | FKM | 0013V | 2 |
|
| 2H0 | 62.00 | 52.00 | 7.00 | 7.50 | NBR | 0026N | 2 |
|
| 2H0 | 45.00 | 35.00 | 7.00 | 7.50 | EPDM | 0004E | 2 |
|
| 2H0 | 95.00 | 83.00 | 8.50 | 9.50 | EPDM | 0084E | 2 |
|
| 2H0 | 98.43 | 85.73 | 9.52 | 10.32 | NBR | 0026N | 2 |
|
| 2H0 | 100.00 | 80.00 | 15.00 | 16.00 | NBR | 0026N | 1 |
|
| 2H0 | 100.00 | 80.00 | 15.00 | 16.00 | FKM | 0013V | 2 |
|
| 2H0 | 100.00 | 80.00 | 15.00 | 16.00 | NBR | 0085N | 2 |
|
| 2H0 | 100.00 | 85.00 | 9.50 | 10.50 | NBR | 0026N | 2 |
|
| 2H0 | 100.00 | 85.00 | 12.00 | 13.00 | NBR | 0026N | 2 |
|
| 2H0 | 45.00 | 35.00 | 7.00 | 7.50 | FKM | 0013V | 2 |
|
| 2H0 | 100.00 | 85.00 | 12.00 | 13.00 | NBR | 0085N | 1 |
|
| 2H0 | 65.00 | 53.00 | 10.00 | 11.00 | NBR | 0026N | 2 |
|
| 2H0 | 200.00 | 180.00 | 14.00 | 15.00 | FKM | 0011V | 1 |
|
| 2H0 | 100.00 | 88.00 | 8.50 | 9.50 | EPDM | 0004E | 2 |
|
| 2H0 | 100.00 | 88.00 | 8.50 | 9.50 | FKM | 0013V | 1 |
|
| 2H0 | 100.00 | 88.00 | 8.50 | 9.50 | NBR | 0033N | 2 |
|
| 2H0 | 100.00 | 88.00 | 8.50 | 9.50 | FKM | 0085V | 2 |
|
| 2H0 | 40.00 | 30.00 | 7.00 | 7.50 | FKM | 0087V | 2 |
|
| 2H0 | 105.00 | 85.00 | 15.00 | 16.00 | NBR | 0085N | 2 |
|
| 2H0 | 110.00 | 95.00 | 10.00 | 11.00 | FKM | 0013V | 2 |
|
| 2H0 | 110.00 | 95.00 | 10.00 | 11.00 | NBR | 0026N | 1 |
|
| 2H0 | 115.00 | 95.00 | 14.00 | 15.00 | NBR | 0026N | 1 |
|
| 2H0 | 120.00 | 100.00 | 15.00 | 16.00 | NBR | 0026N | 2 |
|
| 2H0 | 120.00 | 100.00 | 15.00 | 16.00 | NBR | 0085N | 2 |
|
| 2H0 | 120.00 | 105.00 | 10.00 | 11.00 | FKM | 0013V | 2 |
|
| 2H0 | 120.00 | 105.00 | 10.00 | 11.00 | NBR | 0026N | 1 |
|
| 2H0 | 120.00 | 105.00 | 10.00 | 11.00 | FKM | 0085V | 2 |
|
| 2H0 | 120.00 | 105.00 | 10.00 | 11.00 | NBR | 0085N | 2 |
|
| 2H0 | 125.00 | 105.00 | 16.00 | 17.00 | NBR | 0026N | 2 |
|
| 2H0 | 125.00 | 110.00 | 10.00 | 11.00 | EPDM | 0004E | 2 |
|
| 2H0 | 140.00 | 125.00 | 10.00 | 11.00 | FKM | 0013V | 2 |
|
| 2H0 | 140.00 | 125.00 | 10.00 | 11.00 | NBR | 0026N | 1 |
|
| 2H0 | 140.00 | 125.00 | 10.00 | 11.00 | EPDM | 0004E | 2 |
|
| 2H0 | 140.00 | 125.00 | 10.00 | 11.00 | EPDM | 0085E | 2 |
|
| 2H0 | 24.00 | 16.00 | 5.50 | 6.00 | FKM | 0256V | 2 |
|
| 2H0 | 80.00 | 64.00 | 8.00 | 8.50 | HNBR | 0097N | 2 |
|
| 2H0 | 50.00 | 36.00 | 10.00 | 11.00 | NBR | 0085N | 2 |
|
| 2H0 | 130.00 | 115.00 | 10.00 | 11.00 | NBR | 0026N | 1 |
|
| 2H0 | 280.00 | 260.00 | 14.00 | 15.00 | NBR | 0026N | 1 |
|
| 2H0 | 85.00 | 73.00 | 8.50 | 9.50 | NBR | 0026N | 1 |
|
| 2H0 | 52.00 | 42.00 | 7.00 | 7.50 | NBR | 0026N | 1 |
|
| 2H0 | 40.00 | 30.00 | 7.00 | 7.50 | NBR | 0026N | 1 |
|
| 2H0 | 175.00 | 145.00 | 18.00 | 19.00 | NBR | 0022N | 2 |
|
| 2H0 | 70.00 | 54.00 | 12.00 | 13.00 | NBR | 0085N | 2 |
|
| 2H0 | 16.00 | 8.00 | 5.50 | 6.00 | EPDM | 0004E | 2 |
|
| 2H0 | 40.00 | 30.00 | 7.00 | 7.50 | NBR | 0033N | 2 |
|
| 2H0 | 160.00 | 140.00 | 14.00 | 15.00 | NBR | 0085N | 2 |
|
| 2H0 | 75.00 | 63.00 | 8.50 | 9.50 | FKM | 0013V | 2 |
|
| 2H0 | 55.00 | 45.00 | 7.00 | 7.50 | NBR | 0026N | 1 |
|
| 2H0 | 100.00 | 85.00 | 9.50 | 10.50 | FKM | 0013V | 2 |
|
| 2H0 | 18.00 | 10.00 | 5.50 | 6.00 | FKM | 0013V | 2 |
|
| 2H0 | 100.00 | 88.00 | 8.50 | 9.50 | NBR | 0026N | 1 |
|
| 2H0 | 25.00 | 17.00 | 5.50 | 6.00 | NBR | 0022N | 2 |
|
| 2H0 | 16.00 | 10.00 | 4.00 | 4.50 | NBR | 0063N | 1 |
|
| 2H0 | 630.00 | 605.00 | 18.00 | 19.00 | FKM | 0085V | 2 |
|
| 2H0 | 250.00 | 230.00 | 14.00 | 15.00 | FKM | 0085V | 2 |
|
| 2H0 | 250.00 | 230.00 | 14.00 | 15.00 | NBR | 0085N | 2 |
|
| 2H0 | 115.00 | 95.00 | 14.00 | 15.00 | NBR | 0085N | 2 |
|
| 2H0 | 67.00 | 57.00 | 7.00 | 7.50 | FKM | 0085V | 2 |
|
| 2H0 | 68.00 | 48.00 | 14.00 | 15.00 | NBR | 0026N | 2 |
|
| 2H0 | 37.00 | 21.00 | 12.00 | 13.00 | NBR | 0026N | 2 |
|
| 2H0 | 37.00 | 29.00 | 5.50 | 6.00 | NBR | 0026N | 1 |
|
| 2H0 | 40.00 | 32.00 | 5.50 | 6.00 | FKM | 0013V | 1 |
|
| 2H0 | 40.50 | 30.00 | 7.00 | 7.50 | FKM | 0085V | 2 |
|
| 2H0 | 42.00 | 32.00 | 7.00 | 7.50 | FKM | 0085V | 1 |
|
| 2H0 | 42.00 | 32.00 | 7.00 | 7.50 | FKM | 0085V | 2 |
|
| 2H0 | 42.00 | 34.00 | 5.50 | 6.00 | NBR | 0085N | 2 |
|
| 2H0 | 45.00 | 29.00 | 12.00 | 13.00 | NBR | 0026N | 2 |
|
| 2H0 | 45.00 | 35.00 | 7.00 | 7.50 | NBR | 0026N | 1 |
|
| 2H0 | 45.00 | 35.00 | 7.00 | 7.50 | NBR | 0021N | 2 |
|
| 2H0 | 45.00 | 37.00 | 6.00 | 6.50 | NBR | 0085N | 2 |
|
| 2H0 | 48.00 | 40.00 | 5.50 | 6.00 | NBR | 0083N | 2 |
|
| 2H0 | 50.00 | 40.00 | 7.00 | 7.50 | FKM | 0013V | 1 |
|
| 2H0 | 150.00 | 135.00 | 10.00 | 11.00 | FKM | 0013V | 1 |
|
| 2H0 | 40.00 | 30.00 | 7.00 | 7.50 | FKM | 0013V | 1 |
|
| 2H0 | 175.00 | 155.00 | 14.00 | 15.00 | FKM | 0013V | 2 |
|
| 2H0 | 140.00 | 115.00 | 18.00 | 19.00 | NBR | 0026N | 2 |
|
| 2H0 | 63.70 | 53.00 | 7.00 | 7.50 | FKM | 0087V | 2 |
|
| 2H0 | 65.00 | 49.00 | 12.00 | 13.00 | NBR | 0026N | 2 |
|
| 2H0 | 62.00 | 47.00 | 10.00 | 11.00 | NBR | 0085N | 2 |
|
| 2H0 | 62.00 | 47.00 | 10.00 | 11.00 | NBR | 0027N | 1 |
|
| 2H0 | 63.00 | 53.00 | 7.00 | 7.50 | NBR | 0033N | 2 |
|
| 2H0 | 145.00 | 130.00 | 10.00 | 11.00 | NBR | 0026N | 2 |
|
| 2H0 | 65.00 | 55.00 | 7.00 | 0.00 | EPDM | 0084E | 1 |
|
| 2H0 | 65.00 | 55.00 | 7.00 | 7.50 | NBR | 0026N | 1 |
|
| 2H0 | 65.00 | 55.00 | 7.00 | 7.50 | NBR | 0085N | 2 |
|
| 2H0 | 67.00 | 57.00 | 7.00 | 7.50 | NBR | 0026N | 2 |
|
| 2H0 | 250.00 | 230.00 | 14.00 | 15.00 | NBR | 0026N | 3 |
|
| 2H0 | 52.00 | 36.00 | 12.00 | 13.00 | NBR | 0026N | 1 |
|
| 2H0 | 175.00 | 155.00 | 14.00 | 15.00 | NBR | 0026N | 2 |
|
| 2H0 | 250.00 | 230.00 | 14.00 | 15.00 | EPDM | 0004E | 2 |
|
| 2H0 | 180.00 | 150.00 | 25.00 | 26.00 | NBR | 0026N | 2 |
|
| 2H0 | 180.00 | 160.00 | 14.00 | 15.00 | FKM | 0013V | 1 |
|
| 2H0 | 190.00 | 170.00 | 14.00 | 15.00 | NBR | 0026N | 2 |
|
| 2H0 | 190.00 | 170.00 | 14.00 | 15.00 | NBR | 0085N | 2 |
|
| 2H0 | 200.00 | 170.00 | 25.00 | 26.00 | NBR | 0026N | 2 |
|
| 2H0 | 200.00 | 180.00 | 14.00 | 15.00 | EPDM | 0004E | 2 |
|
| 2H0 | 200.00 | 180.00 | 14.00 | 15.00 | FKM | 0013V | 2 |
|
| 2H0 | 200.00 | 180.00 | 14.00 | 15.00 | NBR | 0026N | 1 |
|
| 2H0 | 200.00 | 180.00 | 14.00 | 15.00 | EPDM | 0084E | 2 |
|
| 2H0 | 201.35 | 170.00 | 19.00 | 20.00 | FKM | 0085V | 2 |
|
| 2H0 | 220.00 | 200.00 | 14.00 | 15.00 | NBR | 0026N | 2 |
|
| 2H0 | 250.00 | 230.00 | 14.00 | 15.00 | FKM | 0013V | 1 |
|
| 2H0 | 175.00 | 145.00 | 18.00 | 19.00 | NBR | 0026N | 2 |
|
| 2H0 | 62.00 | 47.00 | 10.00 | 11.00 | NBR | 0026N | 2 |
|
| 2H0 | 4.00 | 1.50 | 1.70 | 2.00 | NBR | 0026N | 1 |
|
| 2H0 | 22.00 | 14.00 | 5.50 | 6.00 | PUR | 0063P | 2 |
|
| 2H0 | 10.00 | 6.00 | 4.20 | 4.70 | FKM | 0013V | 2 |
|
| 2H0 | 300.00 | 280.00 | 15.00 | 16.00 | NBR | 0085N | 2 |
|
| 2H0 | 60.00 | 50.00 | 7.00 | 7.50 | EPDM | 0004E | 2 |
|
| 2H0 | 68.00 | 55.00 | 6.00 | 7.00 | NBR | 0085N | 2 |
|
| 2H0 | 8.00 | 5.00 | 4.00 | 4.50 | NBR | 0026N | 1 |
|
| 2H0 | 220.00 | 200.00 | 14.00 | 15.00 | FKM | 0013V | 2 |
|
| 2H0 | 25.30 | 17.00 | 5.50 | 6.00 | FKM | 0085V | 2 |
|
| 2H0 | 9.50 | 4.50 | 3.50 | 4.00 | NBR | 0026N | 1 |
|
| 2H0 | 68.00 | 58.00 | 7.00 | 7.50 | NBR | 0026N | 2 |
|
| 2H0 | 155.00 | 135.00 | 15.00 | 16.00 | NBR | 0027N | 2 |
|
| 2H0 | 17.50 | 11.70 | 3.00 | 3.50 | NBR | 0026N | 2 |
|
| 2H0 | 30.00 | 20.00 | 7.00 | 7.50 | NBR | 0085N | 2 |
|
| 2H0 | 47.63 | 31.75 | 7.93 | 8.43 | NBR | 0070N | 2 |
|
| 2H0 | 20.00 | 28.00 | 5.50 | 6.00 | NBR | 0063N | 2 |
|
