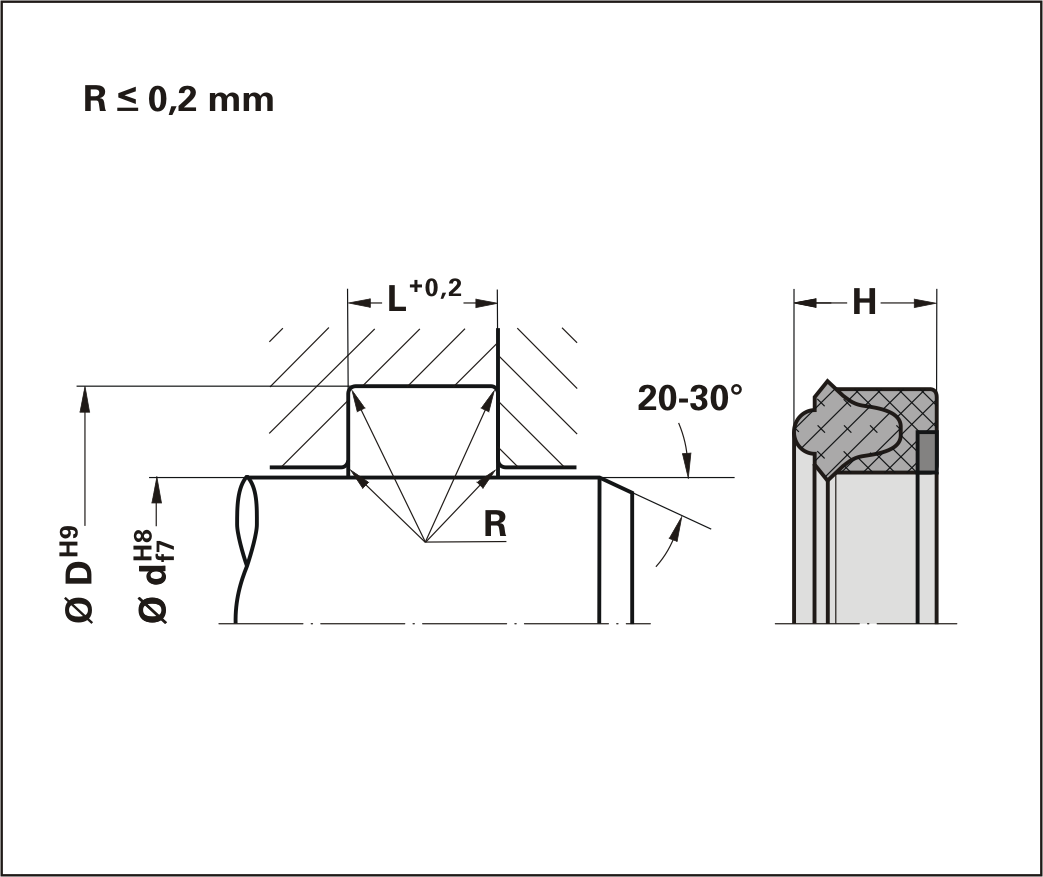

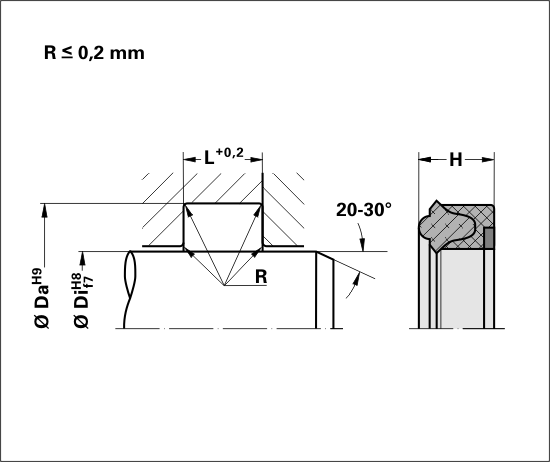

Compact Seal 1H8
Fabric compact seal with back-up ring against gap extrusion, for medium-duty hydraulic applications.
Application Range
Pressure: ≤ 250 bar
Temperature: -30 °C / +100 °C
Sliding Speed: ≤ 0,5 m/s
Standard Material: 0001K
Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.
Load product catalog
Are you missing materials or dimensions?
Feel free to contact us!
Our sealing experts will be happy to advise you!
Filter
| d [mm] | D [mm] | H [mm] | L [mm] | |
|---|---|---|---|---|
| Min: | ||||
| Max: |
| Material selection | |
|---|---|
| Material: | |
| Material No. |
| V | |
|---|---|
| Profile | d [mm] | D [mm] | H [mm] | L [mm] | Material | Mat. No. | V | Quantity |
|---|
