Compact Seal 1H6
Fabric compact seal for medium-duty hydraulic applications.
Application Range
Pressure: ≤ 250 bar
Temperature: -30 °C / +100 °C
Sliding Speed: ≤ 0,5 m/s
Standard Material: 0001K
Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.
Load product catalogCompact Seal 1H6
Are you missing materials or dimensions?
Feel free to contact us!
Our sealing experts will be happy to advise you!
Filter

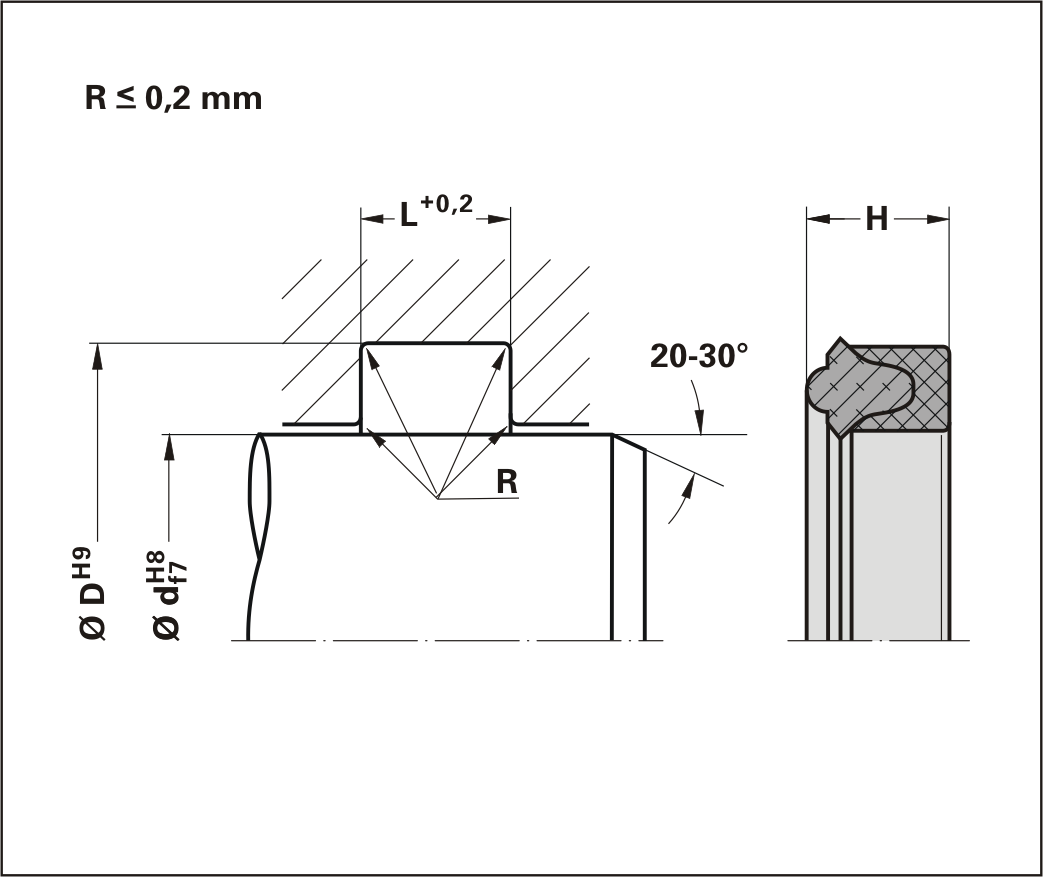

| d [mm] | D [mm] | H [mm] | L [mm] | |
|---|---|---|---|---|
| Min: | ||||
| Max: |
| Material selection | |
|---|---|
| Material: | |
| Material No. |
| V | |
|---|---|
| Profile | d [mm] | D [mm] | H [mm] | L [mm] | Material | Mat. No. | V | Quantity |
|---|---|---|---|---|---|---|---|---|
| 1H6 | 20.00 | 26.00 | 5.00 | 5.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 70.00 | 85.00 | 11.50 | 12.20 | NBR/fabric | 0001K | 1 |
|
| 1H6 | 80.00 | 100.00 | 12.00 | 13.00 | NBR/fabric | 0001K | 1 |
|
| 1H6 | 92.00 | 108.00 | 11.50 | 12.20 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 60.00 | 80.00 | 12.00 | 13.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 61.00 | 69.00 | 8.00 | 8.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 63.00 | 75.00 | 9.00 | 10.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 100.00 | 115.00 | 11.30 | 12.30 | NBR/fabric | 0001K | 1 |
|
| 1H6 | 63.00 | 78.00 | 12.00 | 13.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 220.00 | 240.00 | 15.00 | 16.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 220.00 | 250.00 | 22.50 | 23.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 225.00 | 240.00 | 15.00 | 16.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 225.00 | 250.00 | 20.00 | 21.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 240.00 | 260.00 | 15.00 | 16.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 240.00 | 270.00 | 22.50 | 23.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 245.00 | 270.00 | 18.50 | 19.70 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 245.00 | 275.00 | 25.00 | 26.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 254.00 | 274.60 | 15.10 | 16.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 260.00 | 290.00 | 25.00 | 26.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 265.00 | 285.00 | 15.00 | 16.00 | NBR/fabric | 0001K | 1 |
|
| 1H6 | 270.00 | 300.00 | 22.50 | 0.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 300.00 | 330.00 | 24.00 | 25.00 | HNBR/fabric | 0025K | 2 |
|
| 1H6 | 300.00 | 330.00 | 25.00 | 26.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 304.00 | 336.00 | 25.40 | 27.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 320.00 | 360.00 | 23.30 | 25.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 321.00 | 335.00 | 15.50 | 16.50 | FKM/fabric | 0003K | 2 |
|
| 1H6 | 321.00 | 335.00 | 16.00 | 17.00 | HNBR/fabric | 0025K | 2 |
|
| 1H6 | 360.00 | 390.00 | 22.50 | 23.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 420.00 | 460.00 | 30.00 | 32.00 | HNBR/fabric | 0025K | 2 |
|
| 1H6 | 430.00 | 460.00 | 22.00 | 23.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 56.00 | 68.00 | 10.00 | 11.00 | NBR/fabric | 0001K | 1 |
|
| 1H6 | 190.00 | 210.00 | 15.00 | 16.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 80.00 | 100.00 | 12.00 | 13.00 | FKM | 0013V | 2 |
|
| 1H6 | 120.00 | 135.00 | 11.30 | 12.30 | FKM/fabric | 0003K | 1 |
|
| 1H6 | 118.00 | 134.00 | 14.00 | 15.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 56.00 | 66.00 | 7.50 | 8.00 | NBR/fabric | 0001K | 1 |
|
| 1H6 | 85.00 | 97.00 | 9.00 | 10.00 | FKM/fabric | 0003K | 2 |
|
| 1H6 | 32.00 | 40.00 | 6.00 | 0.00 | FKM/fabric | 0003K | 2 |
|
| 1H6 | 50.00 | 62.00 | 9.00 | 9.60 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 180.00 | 200.00 | 11.00 | 12.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 120.00 | 135.00 | 11.30 | 12.30 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 120.00 | 140.00 | 18.00 | 19.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 125.00 | 140.00 | 11.30 | 0.00 | NBR/fabric | 0001K | 1 |
|
| 1H6 | 125.00 | 140.00 | 11.30 | 12.30 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 125.00 | 145.00 | 18.00 | 19.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 130.00 | 145.00 | 10.20 | 11.00 | NBR/fabric | 0001K | 1 |
|
| 1H6 | 135.00 | 143.00 | 13.50 | 14.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 135.00 | 150.00 | 10.00 | 11.00 | NBR/fabric | 0001K | 1 |
|
| 1H6 | 135.00 | 150.00 | 11.50 | 12.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 140.00 | 150.00 | 7.50 | 8.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 140.00 | 152.00 | 12.00 | 13.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 140.00 | 160.00 | 15.00 | 16.00 | NBR/fabric | 0001K | 1 |
|
| 1H6 | 140.00 | 160.00 | 15.00 | 16.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 150.00 | 170.00 | 12.00 | 13.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 150.00 | 170.00 | 15.00 | 16.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 152.00 | 164.00 | 12.00 | 13.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 152.00 | 164.00 | 12.00 | 13.00 | HNBR/fabric | 0025K | 2 |
|
| 1H6 | 160.00 | 180.00 | 11.00 | 12.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 160.00 | 180.00 | 15.00 | 0.00 | FKM | 0013V | 2 |
|
| 1H6 | 160.00 | 180.00 | 15.00 | 16.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 160.00 | 180.00 | 15.00 | 16.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 165.00 | 185.00 | 11.00 | 12.00 | NBR/fabric | 0001K | 1 |
|
| 1H6 | 165.00 | 185.00 | 15.00 | 16.00 | NBR/fabric | 0001K | 1 |
|
| 1H6 | 35.00 | 45.00 | 7.50 | 8.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 75.00 | 87.00 | 9.00 | 10.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 80.00 | 95.00 | 11.30 | 12.30 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 80.00 | 95.00 | 12.00 | 13.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 50.00 | 58.00 | 8.00 | 8.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 180.00 | 200.00 | 15.00 | 16.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 200.00 | 220.00 | 15.00 | 16.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 90.00 | 110.00 | 11.00 | 12.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 32.00 | 40.00 | 7.00 | 7.50 | HNBR/fabric | 0025K | 2 |
|
| 1H6 | 140.00 | 152.00 | 12.00 | 13.00 | HNBR/fabric | 0025K | 2 |
|
| 1H6 | 35.00 | 43.00 | 7.00 | 7.50 | NBR/fabric | 0001K | 1 |
|
| 1H6 | 50.00 | 60.00 | 10.00 | 11.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 50.00 | 62.00 | 9.00 | 10.00 | FKM/fabric | 0003K | 1 |
|
| 1H6 | 50.00 | 62.00 | 10.00 | 11.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 50.00 | 62.00 | 10.00 | 11.00 | FKM/fabric | 0003K | 2 |
|
| 1H6 | 50.00 | 62.00 | 12.00 | 13.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 50.00 | 65.00 | 10.00 | 11.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 50.80 | 76.20 | 21.50 | 22.80 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 55.00 | 63.00 | 6.00 | 6.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 55.00 | 63.00 | 8.00 | 8.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 55.00 | 65.00 | 7.50 | 8.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 55.00 | 67.00 | 10.00 | 11.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 55.00 | 67.00 | 10.00 | 11.00 | FKM/fabric | 0003K | 2 |
|
| 1H6 | 36.00 | 44.00 | 8.00 | 8.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 80.00 | 100.00 | 15.50 | 16.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 28.00 | 40.00 | 10.00 | 11.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 65.00 | 73.00 | 8.00 | 8.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 40.00 | 48.00 | 6.00 | 6.50 | NBR/fabric | 0001K | 1 |
|
| 1H6 | 73.00 | 85.00 | 10.50 | 11.20 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 30.00 | 40.00 | 9.00 | 10.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 115.00 | 130.00 | 11.30 | 12.00 | NBR/fabric | 0001K | 1 |
|
| 1H6 | 14.00 | 22.00 | 8.00 | 8.50 | HNBR/fabric | 0025K | 2 |
|
| 1H6 | 16.00 | 24.00 | 7.00 | 7.50 | NBR/fabric | 0001K | 1 |
|
| 1H6 | 35.00 | 43.00 | 6.00 | 6.40 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 14.00 | 22.00 | 8.00 | 8.50 | NBR/fabric | 0001K | 1 |
|
| 1H6 | 75.00 | 88.00 | 10.00 | 11.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 75.00 | 90.00 | 11.50 | 12.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 75.00 | 90.00 | 15.00 | 16.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 76.00 | 84.00 | 8.00 | 8.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 78.00 | 88.00 | 12.00 | 13.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 80.00 | 88.00 | 10.00 | 11.00 | NBR/fabric | 0001K | 1 |
|
| 1H6 | 80.00 | 92.00 | 9.00 | 10.00 | NBR/fabric | 0001K | 1 |
|
| 1H6 | 80.00 | 92.00 | 9.00 | 10.00 | NBR/fabric | 0001K | 1 |
|
| 1H6 | 80.00 | 95.00 | 11.30 | 12.30 | FKM/fabric | 0003K | 1 |
|
| 1H6 | 30.00 | 38.00 | 8.00 | 8.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 50.00 | 60.00 | 7.50 | 8.00 | FKM | 0013V | 2 |
|
| 1H6 | 16.00 | 26.00 | 6.00 | 6.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 25.00 | 33.00 | 6.00 | 6.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 60.00 | 70.00 | 7.50 | 8.00 | NBR/fabric | 0001K | 1 |
|
| 1H6 | 535.00 | 575.00 | 30.00 | 32.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 200.00 | 220.00 | 15.00 | 16.00 | FKM/fabric | 0003K | 2 |
|
| 1H6 | 50.00 | 60.00 | 7.50 | 8.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 48.00 | 60.00 | 10.00 | 10.60 | NBR/fabric | 0001K | 1 |
|
| 1H6 | 28.00 | 36.00 | 6.00 | 6.30 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 28.00 | 36.00 | 6.00 | 6.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 28.00 | 36.00 | 7.00 | 7.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 18.00 | 25.00 | 7.00 | 7.50 | NBR/fabric | 0001K | 1 |
|
| 1H6 | 18.00 | 26.00 | 6.00 | 6.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 20.00 | 28.00 | 6.00 | 6.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 20.00 | 28.00 | 7.00 | 7.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 20.00 | 30.00 | 8.00 | 8.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 20.00 | 30.00 | 8.00 | 8.50 | FKM | 0013V | 2 |
|
| 1H6 | 20.00 | 30.00 | 10.00 | 11.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 8.00 | 17.00 | 6.00 | 6.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 22.00 | 32.00 | 9.00 | 10.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 24.00 | 32.00 | 6.00 | 6.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 25.00 | 33.00 | 6.00 | 6.30 | NBR/fabric | 0001K | 1 |
|
| 1H6 | 25.00 | 33.00 | 6.00 | 6.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 25.00 | 35.00 | 9.00 | 10.00 | FKM | 0013V | 2 |
|
| 1H6 | 25.00 | 37.00 | 10.00 | 11.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 28.00 | 36.00 | 6.00 | 6.30 | FKM/fabric | 0003K | 2 |
|
| 1H6 | 70.00 | 78.00 | 10.00 | 11.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 70.00 | 85.00 | 11.50 | 12.20 | FKM/fabric | 0003K | 2 |
|
| 1H6 | 22.00 | 30.00 | 6.00 | 6.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 73.00 | 85.00 | 10.50 | 11.20 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 40.00 | 50.00 | 7.50 | 8.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 90.00 | 105.00 | 12.00 | 13.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 315.00 | 335.00 | 14.50 | 15.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 35.00 | 42.00 | 7.00 | 7.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 65.00 | 73.00 | 8.00 | 8.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 65.00 | 77.00 | 9.00 | 9.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 16.00 | 26.00 | 8.00 | 8.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 30.00 | 38.00 | 6.00 | 6.40 | FKM/fabric | 0003K | 2 |
|
| 1H6 | 70.00 | 85.00 | 12.00 | 13.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 70.00 | 90.00 | 11.00 | 12.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 72.00 | 84.00 | 9.00 | 9.60 | NBR/fabric | 0001K | 1 |
|
| 1H6 | 75.00 | 87.00 | 9.00 | 9.50 | NBR/fabric | 0001K | 1 |
|
| 1H6 | 90.00 | 105.00 | 11.30 | 12.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 35.00 | 43.00 | 6.00 | 6.40 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 40.00 | 48.00 | 8.00 | 8.50 | FKM | 0013V | 2 |
|
| 1H6 | 40.00 | 48.00 | 8.00 | 8.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 40.00 | 50.00 | 7.50 | 8.00 | FKM/fabric | 0003K | 2 |
|
| 1H6 | 40.00 | 50.00 | 9.00 | 10.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 40.00 | 50.00 | 9.00 | 10.00 | FKM/fabric | 0003K | 2 |
|
| 1H6 | 40.00 | 50.00 | 10.00 | 11.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 40.00 | 52.00 | 9.00 | 10.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 40.00 | 52.00 | 15.00 | 16.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 40.00 | 55.00 | 10.00 | 11.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 40.00 | 56.00 | 9.00 | 10.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 42.00 | 50.00 | 6.00 | 6.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 42.00 | 50.00 | 7.00 | 7.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 45.00 | 53.00 | 8.00 | 8.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 45.00 | 53.00 | 8.00 | 8.50 | FKM | 0013V | 2 |
|
| 1H6 | 45.00 | 53.00 | 8.00 | 8.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 45.00 | 53.00 | 8.00 | 8.50 | NBR/fabric | 0001K | 1 |
|
| 1H6 | 45.00 | 55.00 | 7.50 | 8.00 | NBR/fabric | 0001K | 1 |
|
| 1H6 | 45.00 | 60.00 | 10.00 | 11.00 | NBR/fabric | 0001K | 1 |
|
| 1H6 | 45.00 | 60.00 | 11.00 | 12.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 46.00 | 54.00 | 8.00 | 8.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 60.00 | 70.00 | 7.50 | 8.00 | FKM/fabric | 0003K | 2 |
|
| 1H6 | 60.00 | 72.00 | 9.50 | 10.00 | NBR/fabric | 0001K | 1 |
|
| 1H6 | 60.00 | 72.00 | 9.50 | 10.10 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 60.00 | 72.00 | 10.00 | 11.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 60.00 | 75.00 | 12.00 | 13.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 60.00 | 75.00 | 12.00 | 13.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 140.00 | 160.00 | 15.00 | 16.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 36.00 | 44.00 | 6.00 | 6.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 110.00 | 125.00 | 12.00 | 13.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 32.00 | 40.00 | 6.00 | 6.40 | NBR/fabric | 0001K | 1 |
|
| 1H6 | 32.00 | 40.00 | 6.00 | 6.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 32.00 | 40.00 | 6.00 | 6.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 32.00 | 40.00 | 7.00 | 7.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 32.00 | 40.00 | 7.50 | 8.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 32.00 | 42.00 | 9.00 | 9.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 32.00 | 44.00 | 10.00 | 11.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 32.00 | 45.00 | 10.00 | 11.00 | NBR/fabric | 0001K | 1 |
|
| 1H6 | 35.00 | 43.00 | 6.00 | 6.40 | FKM/fabric | 0003K | 2 |
|
| 1H6 | 35.00 | 43.00 | 7.00 | 7.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 35.00 | 43.00 | 8.00 | 8.50 | FKM/fabric | 0003K | 1 |
|
| 1H6 | 30.00 | 38.00 | 6.00 | 6.50 | NBR/fabric | 0001K | 1 |
|
| 1H6 | 6.00 | 10.00 | 6.00 | 6.50 | NBR/fabric | 0001K | 1 |
|
| 1H6 | 40.00 | 50.00 | 7.00 | 7.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 30.00 | 38.00 | 5.70 | 6.30 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 28.00 | 40.00 | 9.00 | 10.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 16.00 | 24.00 | 7.00 | 7.50 | FKM | 0013V | 2 |
|
| 1H6 | 125.00 | 135.00 | 6.80 | 7.20 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 36.00 | 48.00 | 9.00 | 10.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 65.00 | 80.00 | 12.00 | 13.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 63.00 | 75.00 | 10.00 | 11.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 63.00 | 75.00 | 12.00 | 13.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 30.00 | 45.00 | 8.50 | 9.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 70.00 | 78.00 | 8.00 | 8.50 | NBR/fabric | 0001K | 1 |
|
| 1H6 | 10.00 | 17.00 | 6.00 | 6.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 10.00 | 18.00 | 8.00 | 8.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 10.00 | 18.00 | 10.00 | 10.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 12.00 | 18.00 | 7.00 | 7.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 12.00 | 19.00 | 6.50 | 7.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 100.00 | 115.00 | 12.00 | 13.00 | HNBR/fabric | 0025K | 2 |
|
| 1H6 | 100.00 | 115.00 | 15.00 | 16.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 105.00 | 120.00 | 11.50 | 0.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 110.00 | 130.00 | 11.00 | 12.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 95.00 | 110.00 | 11.30 | 12.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 97.00 | 105.00 | 13.50 | 14.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 90.00 | 110.00 | 14.00 | 15.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 170.00 | 190.00 | 11.00 | 12.00 | NBR/fabric | 0001K | 1 |
|
| 1H6 | 215.00 | 240.00 | 20.00 | 21.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 200.00 | 225.00 | 15.00 | 16.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 210.00 | 235.00 | 19.00 | 20.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 36.00 | 43.00 | 6.00 | 6.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 5.00 | 12.00 | 6.00 | 6.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 100.00 | 115.00 | 12.00 | 13.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 170.00 | 190.00 | 11.00 | 12.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 25.00 | 33.00 | 7.00 | 7.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 8.00 | 16.00 | 6.00 | 6.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 36.00 | 44.00 | 6.00 | 6.30 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 210.00 | 237.00 | 18.50 | 19.70 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 32.00 | 40.00 | 7.50 | 8.00 | FKM/fabric | 0003K | 2 |
|
| 1H6 | 110.00 | 125.00 | 11.30 | 12.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 32.00 | 40.00 | 7.50 | 8.00 | FKM/fabric | 0003K | 2 |
|
| 1H6 | 170.00 | 190.00 | 15.00 | 16.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 70.00 | 80.00 | 7.00 | 7.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 56.00 | 71.00 | 12.00 | 13.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 60.00 | 68.00 | 10.00 | 11.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 60.00 | 70.00 | 7.50 | 8.00 | NBR/fabric | 0001K | 1 |
|
| 1H6 | 55.00 | 67.00 | 10.00 | 11.00 | NBR/fabric | 0001K | 1 |
|
| 1H6 | 55.00 | 67.00 | 13.00 | 14.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 55.00 | 70.00 | 11.30 | 12.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 56.00 | 66.00 | 7.50 | 0.00 | FKM/fabric | 0003K | 2 |
|
| 1H6 | 56.00 | 71.00 | 12.00 | 13.00 | FKM | 0013V | 2 |
|
| 1H6 | 55.00 | 70.00 | 15.00 | 16.00 | NBR/fabric | 0001K | 1 |
|
| 1H6 | 112.00 | 120.00 | 13.50 | 14.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 15.00 | 23.00 | 6.00 | 6.30 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 16.00 | 24.00 | 6.00 | 6.30 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 14.00 | 22.00 | 6.00 | 6.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 12.00 | 20.00 | 7.00 | 7.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 8.00 | 16.00 | 10.00 | 10.60 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 50.00 | 60.00 | 7.50 | 8.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 50.00 | 60.00 | 10.00 | 10.60 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 40.00 | 48.00 | 6.00 | 6.30 | NBR/fabric | 0001K | 1 |
|
| 1H6 | 28.00 | 40.00 | 9.00 | 10.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 35.00 | 45.00 | 7.50 | 8.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 35.00 | 45.00 | 8.50 | 9.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 35.00 | 45.00 | 9.00 | 10.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 35.00 | 45.00 | 10.00 | 11.00 | NBR/fabric | 0001K | 1 |
|
| 1H6 | 28.00 | 40.00 | 12.00 | 13.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 30.00 | 37.00 | 6.00 | 6.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 81.00 | 89.00 | 8.00 | 8.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 85.00 | 97.00 | 9.00 | 10.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 85.00 | 100.00 | 15.00 | 16.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 85.00 | 100.00 | 15.00 | 16.00 | HNBR/fabric | 0025K | 2 |
|
| 1H6 | 85.00 | 105.00 | 15.00 | 16.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 88.00 | 103.00 | 12.00 | 13.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 90.00 | 100.00 | 6.80 | 7.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 90.00 | 100.00 | 9.00 | 10.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 90.00 | 102.00 | 9.00 | 9.60 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 6.00 | 13.00 | 6.00 | 6.50 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 8.00 | 15.00 | 6.00 | 6.50 | NBR/fabric | 0001K | 1 |
|
| 1H6 | 215.00 | 240.00 | 18.80 | 20.00 | NBR/fabric | 0001K | 1 |
|
| 1H6 | 16.00 | 24.00 | 6.00 | 6.50 | NBR/fabric | 0001K | 1 |
|
| 1H6 | 85.00 | 100.00 | 11.30 | 12.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 114.30 | 133.30 | 12.00 | 13.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 60.00 | 76.00 | 9.00 | 10.00 | NBR/fabric | 0001K | 1 |
|
| 1H6 | 47.00 | 57.00 | 9.00 | 10.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 35.00 | 50.00 | 12.00 | 13.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 310.00 | 340.00 | 25.00 | 26.00 | NBR/fabric | 0001K | 2 |
|
| 1H6 | 40.00 | 48.00 | 6.00 | 6.50 | NBR/fabric | 0001K | 1 |
|
| 1H6 | 40.00 | 48.00 | 8.00 | 8.50 | NBR/fabric | 0001K | 2 |
|
