Compact Rod Seal 1HK

PUR compact rod seal with integrated anti-extrusion ring. A typical application is as a buffer seal in sealing systems.

Application Range
Pressure: ≤ 500 bar (≤ 1000 bar peak pressure)
Temperature: -35 °C / +110 °C
Sliding Speed: ≤ 0,5 m/s
Standard Material: PUR

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Load product catalog

Are you missing materials or dimensions?

Feel free to contact us!

Our sealing experts will be happy to advise you!

+49(201)86606-0 or vk@techno-parts.de

Filter

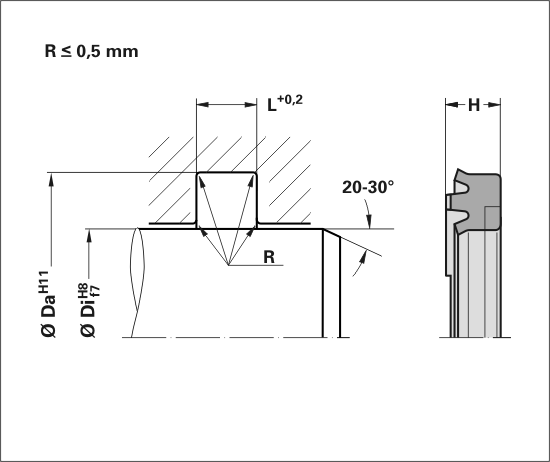

d [mm] D [mm] H [mm] L [mm]
Min:
Max:
Material selection
Material:
Material No.
V
Profile d [mm] D [mm] H [mm] L [mm] Material Mat. No. V Quantity
1HK 70.00 85.10 6.10 6.30 PUR 0007P 2
1HK 300.00 330.00 18.20 0.00 PUR 0007P 1
1HK 80.00 95.10 6.10 6.30 PUR 0007P 2
1HK 160.00 180.00 14.50 0.00 PUR 0007P 1
1HK 200.00 225.00 14.50 16.00 PUR 0013P 1
1HK 80.00 95.00 8.50 9.50 PUR 0007P 1
1HK 280.00 310.00 18.20 0.00 PUR 0013P 2
1HK 280.00 310.00 18.20 20.00 PUR 0007P 2
1HK 230.00 260.00 18.20 20.00 PUR 0007P 2
1HK 75.00 90.00 8.50 9.50 PUR 0007P 1
1HK 56.00 71.00 8.50 9.50 PUR 0007P 1
1HK 220.00 250.00 18.20 20.00 PUR 0007P 2
1HK 160.00 180.00 14.50 16.00 PUR 0007P 1
1HK 70.00 85.50 6.10 6.30 PUR 0007P 2
1HK 150.00 170.00 14.50 16.00 PUR 0007P 2
1HK 70.00 85.00 8.50 9.50 PUR 0007P 2
1HK 85.00 100.50 6.10 6.30 PUR 0007P 2
1HK 85.00 100.00 8.50 9.50 PUR 0007P 1
1HK 140.00 160.00 14.50 16.00 PUR 0007P 1
1HK 90.00 105.50 6.10 6.30 PUR 0007P 2
1HK 70.00 85.10 6.10 6.30 PUR 0013P 1
1HK 110.00 130.00 11.40 12.50 PUR 0007P 1
1HK 170.00 190.00 10.30 11.00 PUR 0007P 2
1HK 95.00 110.50 6.10 6.30 PUR 0007P 2
1HK 100.00 115.50 6.10 6.30 PUR 0007P 1
1HK 180.00 205.00 14.50 16.00 PUR 0007P 1
1HK 110.00 130.00 11.40 0.00 PUR 0013P 2
1HK 140.00 155.50 6.10 6.30 PUR 0013P 2
1HK 60.00 75.00 8.50 9.50 PUR 0007P 1
1HK 170.00 195.00 14.50 16.00 PUR 0007P 1
1HK 60.00 75.10 6.10 6.30 PUR 0007P 2
1HK 60.00 75.10 6.10 6.30 PUR 0013P 1
1HK 110.00 125.50 6.10 6.30 PUR 0007P 2
1HK 65.00 80.50 6.10 6.30 PUR 0007P 2
1HK 130.00 150.00 14.50 16.00 PUR 0007P 1
1HK 80.00 95.50 6.10 6.30 PUR 0007P 2
1HK 115.00 135.00 11.50 12.50 PUR 0007P 2
1HK 200.00 225.00 14.50 16.00 PUR 0007P 1
1HK 120.00 140.00 11.40 12.50 PUR 0007P 1
1HK 210.00 240.00 18.20 20.00 PUR 0007P 1
1HK 90.00 105.00 8.50 9.50 PUR 0007P 2
1HK 250.00 280.00 18.20 20.00 PUR 0007P 1
1HK 100.00 120.00 11.40 12.50 PUR 0007P 2
