Wear Rings FÜA

Compound Fabric Wear Rings, straight slot, are mainly used in hydraulics and machine building. They perform the function of guiding rods and pistons, prevent them from making metallic contact and absorb radial forces. In the material POM also available in special dimensions at short notice from routine production.

Application Range
Temperature: -50 °C / +120 °C
Sliding Speed: ≤ 0,5/0,8 m/s (depends on the amterial selected)

Materials:
- Synthetic woven fabric with a specially modified phenolic resin impregnated and PTFE additives (2000K)
- Phenolic resin impregnated cotton fabric (1000K)
- Phenolic resin impregnated fine cotton fabric (0051K)
- Resin impregnated plastics fabric with PTFE additives (1030 - 0052K)
- Resin impregnated plastics fabric with graphite additives (0942 - 0052K)

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Load product catalog

Are you missing materials or dimensions?

Feel free to contact us!

Our sealing experts will be happy to advise you!

+49(201)86606-0 or vk@techno-parts.de

Filter

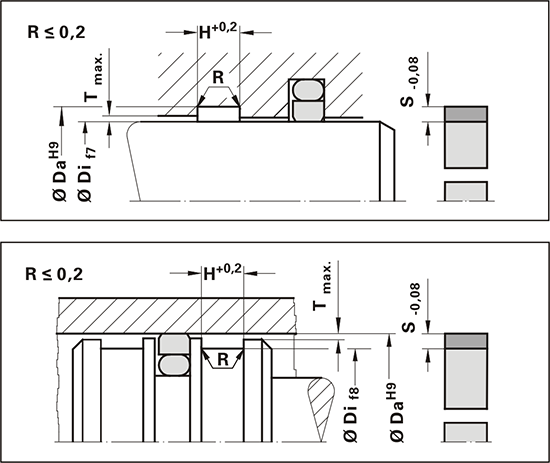

Di [mm] Da [mm] H [mm]
Min:
Max:
Material selection
Material:
Material No.
V
Profile Di [mm] Da [mm] H [mm] Material Mat. No. V Quantity
FUEA 160.00 167.00 63.00 0000A 0000A 2
FUEA 210.00 218.40 59.80 0000A 0000A 2
FUEA 228.00 236.00 80.00 0000A 0000A 2
FUEA 800.00 820.00 60.00 PTFE-Compound 0010T 2
FUEA 134.00 140.30 16.00 0000A 0000A 2
FUEA 72.00 76.30 5.00 0000A 0000A 2
FUEA 135.00 145.00 55.00 0000A 0000A 2
FUEA 9.00 12.00 6.00 0000A 0000A 2
FUEA 12.00 17.00 9.70 0000A 0000A 2
FUEA 25.40 31.90 9.50 PTFE-Compound 0005T 2
FUEA 64.00 70.00 12.70 0000A 0000A 2
FUEA 80.00 86.00 36.00 0000A 0000A 2
FUEA 60.00 66.00 39.80 0000A 0000A 2
FUEA 80.00 86.00 50.00 0000A 0000A 2
FUEA 65.00 70.00 20.00 0000A 0000A 2
FUEA 180.50 205.00 16.00 0000A 0000A 2
FUEA 111.00 115.00 20.00 0000A 0000A 2
FUEA 30.00 34.00 19.80 0000A 0000A 2
FUEA 63.00 68.00 25.00 0000A 0000A 2
FUEA 31.90 35.00 3.90 PTFE-Compound 0017T 2
FUEA 45.00 50.00 15.00 0000A 0000A 2
FUEA 51.00 55.00 10.00 0000A 0000A 2
FUEA 80.00 86.00 25.00 0000A 0000A 2
FUEA 90.00 102.00 40.00 0000A 0000A 2
FUEA 58.00 60.00 6.50 PTFE-Compound 0017T 2
FUEA 95.00 105.00 25.00 0000A 0000A 2
FUEA 155.00 165.00 25.00 0000A 0000A 2
FUEA 86.00 90.00 25.00 0000A 0000A 2
FUEA 109.00 114.00 26.00 0000A 0000A 1
FUEA 109.00 114.30 38.50 0000A 0000A 2
FUEA 109.00 115.00 12.50 0000A 0000A 2
FUEA 110.00 116.00 14.80 laminated fabric 0051K 2
FUEA 112.00 122.00 50.00 0000A 0000A 2
FUEA 112.70 119.50 52.00 0000A 0000A 2
FUEA 120.00 126.00 25.00 0000A 0000A 2
FUEA 120.00 128.00 45.00 0000A 0000A 2
FUEA 100.00 106.00 20.50 0000A 0000A 2
FUEA 94.00 100.00 10.00 0043A 0043A 1
FUEA 104.00 110.00 13.00 0040A 0040A 2
