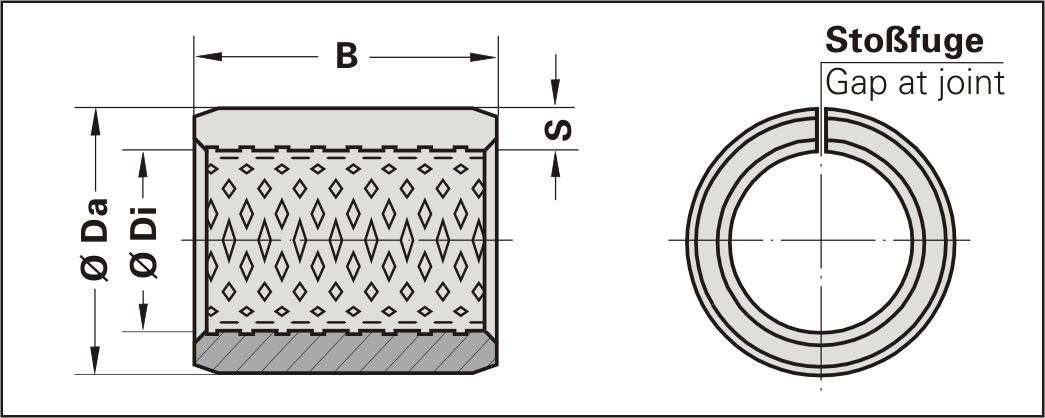

Slide Bearing FE1
Slide bearing with diamond-shaped lubrication pockets, for high bearing loads and rough operation.
Application Range
Temperature: -100 °C / +200 °C
Sliding Speed: ≤ 2 m/s
Standard Material: Tin bronze
Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.
Load product catalogSlide Bearing FE1
Are you missing materials or dimensions?
Feel free to contact us!
Our sealing experts will be happy to advise you!
Filter
| Di [mm] | Da [mm] | B [mm] | |
|---|---|---|---|
| Min: | |||
| Max: |
| Material selection | |
|---|---|
| Material: | |
| Material No. |
| V | |
|---|---|
| Profile | Di [mm] | Da [mm] | B [mm] | Material | Mat. No. | V | Quantity |
|---|---|---|---|---|---|---|---|
| FE1 | 12.00 | 14.00 | 20.00 | brass | 0005B | 2 |
|
| FE1 | 28.00 | 31.00 | 15.00 | brass | 0005B | 2 |
|
| FE1 | 22.00 | 25.00 | 20.00 | brass | 0005B | 2 |
|
| FE1 | 45.00 | 49.00 | 50.00 | brass | 0005B | 2 |
|
| FE1 | 20.00 | 23.00 | 20.00 | brass | 0005B | 2 |
|
| FE1 | 70.00 | 75.00 | 80.00 | brass | 0005B | 2 |
|
| FE1 | 40.00 | 44.00 | 40.00 | brass | 0005B | 2 |
|
| FE1 | 85.00 | 90.00 | 80.00 | brass | 0005B | 2 |
|
| FE1 | 30.00 | 34.00 | 15.00 | brass | 0005B | 2 |
|
| FE1 | 30.00 | 34.00 | 20.00 | brass | 0005B | 2 |
|
| FE1 | 30.00 | 34.00 | 40.00 | brass | 0005B | 2 |
|
| FE1 | 35.00 | 39.00 | 15.00 | brass | 0005B | 2 |
|
| FE1 | 35.00 | 39.00 | 20.00 | brass | 0005B | 2 |
|
| FE1 | 20.00 | 23.00 | 15.00 | brass | 0005B | 2 |
|
| FE1 | 15.00 | 17.00 | 10.00 | brass | 0005B | 2 |
|
| FE1 | 28.00 | 31.00 | 20.00 | brass | 0005B | 2 |
|
| FE1 | 45.00 | 49.00 | 25.00 | brass | 0005B | 2 |
|
| FE1 | 25.00 | 28.00 | 15.00 | brass | 0005B | 2 |
|
| FE1 | 10.00 | 12.00 | 10.00 | Bronze | 0010B | 2 |
|
| FE1 | 40.00 | 44.00 | 20.00 | brass | 0005B | 2 |
|
| FE1 | 60.00 | 65.00 | 80.00 | brass | 0005B | 2 |
|
| FE1 | 65.00 | 70.00 | 80.00 | brass | 0005B | 2 |
|
| FE1 | 120.00 | 125.00 | 100.00 | brass | 0005B | 2 |
|
| FE1 | 85.00 | 90.00 | 30.00 | brass | 0005B | 2 |
|
| FE1 | 45.00 | 49.00 | 30.00 | brass | 0005B | 2 |
|
| FE1 | 45.00 | 49.00 | 40.00 | brass | 0005B | 2 |
|
| FE1 | 45.00 | 49.00 | 60.00 | brass | 0005B | 2 |
|
| FE1 | 50.00 | 55.00 | 25.00 | brass | 0005B | 2 |
|
| FE1 | 50.00 | 55.00 | 50.00 | brass | 0005B | 2 |
|
| FE1 | 60.00 | 65.00 | 25.00 | brass | 0005B | 2 |
|
| FE1 | 60.00 | 65.00 | 40.00 | brass | 0005B | 2 |
|
| FE1 | 60.00 | 65.00 | 50.00 | brass | 0005B | 2 |
|
| FE1 | 60.00 | 65.00 | 60.00 | brass | 0005B | 1 |
|
| FE1 | 65.00 | 70.00 | 30.00 | brass | 0005B | 2 |
|
| FE1 | 65.00 | 70.00 | 50.00 | brass | 0005B | 2 |
|
| FE1 | 70.00 | 75.00 | 40.00 | brass | 0005B | 2 |
|
| FE1 | 70.00 | 75.00 | 50.00 | brass | 0005B | 2 |
|
| FE1 | 75.00 | 80.00 | 80.00 | brass | 0005B | 2 |
|
| FE1 | 85.00 | 90.00 | 40.00 | brass | 0005B | 2 |
|
| FE1 | 90.00 | 95.00 | 90.00 | brass | 0005B | 2 |
|
| FE1 | 95.00 | 100.00 | 40.00 | brass | 0005B | 2 |
|
| FE1 | 95.00 | 100.00 | 50.00 | brass | 0005B | 2 |
|
| FE1 | 105.00 | 110.00 | 60.00 | brass | 0005B | 1 |
|
| FE1 | 105.00 | 110.00 | 100.00 | brass | 0005B | 2 |
|
| FE1 | 110.00 | 115.00 | 100.00 | brass | 0005B | 2 |
|
| FE1 | 120.00 | 125.00 | 60.00 | brass | 0005B | 2 |
|
| FE1 | 25.00 | 28.00 | 20.00 | brass | 0005B | 2 |
|
| FE1 | 25.00 | 28.00 | 30.00 | brass | 0005B | 2 |
|
| FE1 | 16.00 | 18.00 | 20.00 | brass | 0005B | 2 |
|
| FE1 | 35.00 | 39.00 | 30.00 | brass | 0005B | 2 |
|
| FE1 | 13.00 | 16.00 | 25.00 | brass | 0005B | 2 |
|
| FE1 | 22.00 | 25.00 | 40.00 | brass | 0005B | 2 |
|
| FE1 | 50.00 | 55.00 | 40.00 | Bronze | 0010B | 2 |
|
| FE1 | 55.00 | 60.00 | 30.00 | brass | 0005B | 2 |
|
| FE1 | 110.00 | 115.00 | 60.00 | brass | 0005B | 2 |
|
| FE1 | 30.00 | 34.00 | 30.00 | brass | 0005B | 2 |
|
| FE1 | 40.00 | 44.00 | 60.00 | brass | 0005B | 2 |
|
| FE1 | 18.00 | 20.00 | 15.00 | brass | 0005B | 2 |
|
| FE1 | 115.00 | 120.00 | 100.00 | brass | 0005B | 2 |
|
| FE1 | 15.00 | 17.00 | 25.00 | brass | 0005B | 2 |
|
| FE1 | 65.00 | 70.00 | 60.00 | brass | 0005B | 2 |
|
| FE1 | 90.00 | 95.00 | 40.00 | brass | 0005B | 2 |
|
| FE1 | 100.00 | 105.00 | 100.00 | brass | 0005B | 2 |
|
| FE1 | 35.00 | 39.00 | 50.00 | brass | 0005B | 2 |
|
| FE1 | 55.00 | 60.00 | 50.00 | brass | 0005B | 2 |
|
| FE1 | 55.00 | 60.00 | 60.00 | brass | 0005B | 2 |
|
| FE1 | 30.00 | 34.00 | 25.00 | brass | 0005B | 2 |
|
| FE1 | 25.00 | 28.00 | 25.00 | brass | 0005B | 1 |
|
| FE1 | 40.00 | 44.00 | 30.00 | brass | 0005B | 2 |
|
| FE1 | 55.00 | 60.00 | 25.00 | brass | 0005B | 2 |
|
| FE1 | 85.00 | 90.00 | 60.00 | brass | 0005B | 2 |
|
| FE1 | 75.00 | 80.00 | 40.00 | brass | 0005B | 2 |
|
| FE1 | 50.00 | 55.00 | 60.00 | brass | 0005B | 2 |
|
| FE1 | 45.00 | 49.00 | 20.00 | brass | 0005B | 2 |
|
| FE1 | 16.00 | 18.00 | 15.00 | brass | 0005B | 2 |
|
| FE1 | 40.00 | 44.00 | 25.00 | brass | 0005B | 2 |
|
| FE1 | 13.00 | 16.00 | 15.00 | brass | 0005B | 2 |
|
| FE1 | 100.00 | 105.00 | 60.00 | brass | 0005B | 2 |
|
| FE1 | 22.00 | 25.00 | 25.00 | brass | 0005B | 2 |
|
| FE1 | 60.00 | 65.00 | 30.00 | brass | 0005B | 2 |
|
| FE1 | 80.00 | 85.00 | 80.00 | brass | 0005B | 2 |
|
| FE1 | 18.00 | 20.00 | 25.00 | brass | 0005B | 2 |
|
| FE1 | 70.00 | 75.00 | 60.00 | brass | 0005B | 2 |
|
| FE1 | 95.00 | 100.00 | 60.00 | brass | 0005B | 2 |
|
| FE1 | 65.00 | 70.00 | 40.00 | brass | 0005B | 2 |
|
| FE1 | 55.00 | 60.00 | 40.00 | brass | 0005B | 2 |
|
| FE1 | 40.00 | 44.00 | 30.00 | brass | 0005B | 2 |
|
| FE1 | 16.00 | 18.00 | 25.00 | brass | 0005B | 2 |
|
| FE1 | 80.00 | 85.00 | 30.00 | brass | 0005B | 2 |
|
| FE1 | 80.00 | 85.00 | 40.00 | brass | 0005B | 2 |
|
| FE1 | 20.00 | 23.00 | 25.00 | brass | 0005B | 2 |
|
| FE1 | 20.00 | 23.00 | 30.00 | brass | 0005B | 2 |
|
| FE1 | 22.00 | 25.00 | 15.00 | brass | 0005B | 2 |
|
| FE1 | 80.00 | 85.00 | 60.00 | brass | 0005B | 2 |
|
| FE1 | 22.00 | 25.00 | 30.00 | brass | 0005B | 2 |
|
| FE1 | 115.00 | 120.00 | 60.00 | brass | 0005B | 2 |
|
| FE1 | 75.00 | 80.00 | 30.00 | brass | 0005B | 2 |
|
| FE1 | 95.00 | 100.00 | 90.00 | brass | 0005B | 2 |
|
| FE1 | 12.00 | 14.00 | 15.00 | brass | 0005B | 2 |
|
| FE1 | 13.00 | 16.00 | 10.00 | brass | 0005B | 2 |
|
| FE1 | 15.00 | 17.00 | 15.00 | brass | 0005B | 2 |
|
| FE1 | 16.00 | 18.00 | 10.00 | brass | 0005B | 2 |
|
| FE1 | 18.00 | 20.00 | 10.00 | brass | 0005B | 2 |
|
| FE1 | 18.00 | 20.00 | 20.00 | brass | 0005B | 2 |
|
| FE1 | 20.00 | 23.00 | 10.00 | brass | 0005B | 2 |
|
| FE1 | 90.00 | 95.00 | 60.00 | brass | 0005B | 2 |
|
| FE1 | 28.00 | 31.00 | 30.00 | brass | 0005B | 2 |
|
| FE1 | 35.00 | 39.00 | 40.00 | brass | 0005B | 2 |
|
| FE1 | 28.00 | 31.00 | 25.00 | brass | 0005B | 2 |
|
| FE1 | 10.00 | 12.00 | 15.00 | brass | 0005B | 2 |
|
| FE1 | 12.00 | 14.00 | 10.00 | brass | 0005B | 2 |
|
| FE1 | 35.00 | 39.00 | 25.00 | brass | 0005B | 2 |
|
| FE1 | 40.00 | 44.00 | 50.00 | Bronze | 0010B | 2 |
|
| FE1 | 13.00 | 16.00 | 20.00 | brass | 0005B | 2 |
|
| FE1 | 50.00 | 55.00 | 30.00 | brass | 0005B | 2 |
|
