Fabric Chevron Sealing MA2
Fabric chevron sealing set for complicated operating conditions, standard series for pressures up to 350 bar in hydraulic applications.
Application Range
Pressure: ≤ 350 bar
Temperature: -40 °C / +100 °C
Sliding Speed: ≤ 0,5 m/s
Standard Material: NBR/fabric
Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.
Load product catalogFabric Chevron Sealing MA2
Are you missing materials or dimensions?
Feel free to contact us!
Our sealing experts will be happy to advise you!
Filter

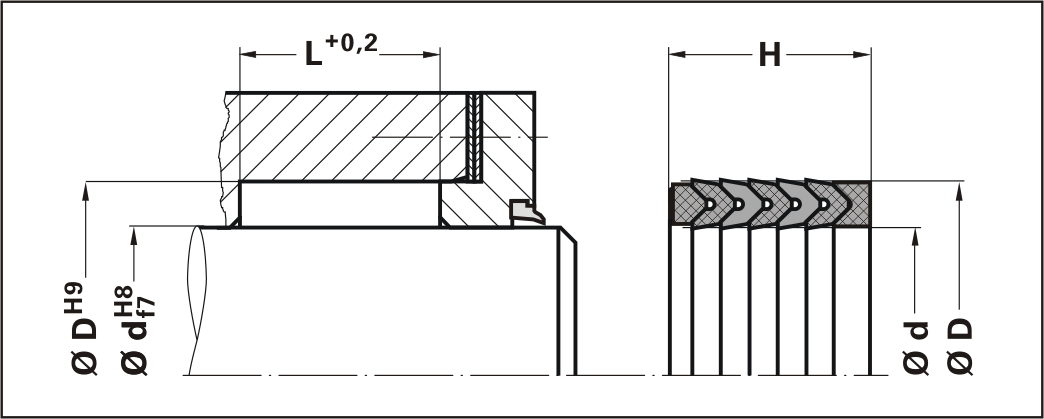

| d [mm] | D [mm] | H [mm] | L [mm] | |
|---|---|---|---|---|
| Min: | ||||
| Max: |
| Material selection | |
|---|---|
| Material: | |
| Material No. |
| V | |
|---|---|
| Profile | d [mm] | D [mm] | H [mm] | L [mm] | Material | Mat. No. | V | Quantity |
|---|---|---|---|---|---|---|---|---|
| MA2 | 75.00 | 90.00 | 22.50 | 22.50 | NBR/fabric | 0001K | 2 |
|
| MA2 | 45.00 | 60.00 | 22.50 | 22.50 | NBR/fabric | 0001K | 3 |
|
| MA2 | 45.00 | 60.00 | 22.50 | 22.50 | FKM/fabric | 0003K | 2 |
|
| MA2 | 48.00 | 63.00 | 22.50 | 22.50 | NBR/fabric | 0001K | 2 |
|
| MA2 | 50.00 | 65.00 | 22.50 | 22.50 | NBR/fabric | 0001K | 1 |
|
| MA2 | 22.00 | 32.00 | 18.50 | 18.50 | NBR/fabric | 0001K | 2 |
|
| MA2 | 22.00 | 32.00 | 18.50 | 18.50 | FKM/fabric | 0003K | 2 |
|
| MA2 | 25.00 | 37.00 | 22.50 | 0.00 | 0000X | 1 |
|
|
| MA2 | 25.00 | 37.00 | 22.50 | 0.00 | NBR/fabric | 0001K | 2 |
|
| MA2 | 25.00 | 37.00 | 22.50 | 22.50 | NBR/fabric | 0001K | 2 |
|
| MA2 | 25.00 | 37.00 | 22.50 | 22.50 | FKM/fabric | 0003K | 2 |
|
| MA2 | 28.00 | 40.00 | 22.50 | 22.50 | NBR/fabric | 0001K | 1 |
|
| MA2 | 28.00 | 40.00 | 22.50 | 22.50 | NBR/fabric | 0001K | 2 |
|
| MA2 | 28.00 | 40.00 | 22.50 | 22.50 | FKM/fabric | 0003K | 2 |
|
| MA2 | 90.00 | 105.00 | 22.50 | 22.50 | NBR/fabric | 0001K | 2 |
|
| MA2 | 90.00 | 105.00 | 22.50 | 22.50 | FKM/fabric | 0003K | 2 |
|
| MA2 | 40.00 | 52.00 | 22.50 | 22.50 | FKM/fabric | 0003K | 2 |
|
| MA2 | 42.00 | 54.00 | 22.50 | 22.50 | NBR/fabric | 0001K | 2 |
|
| MA2 | 200.00 | 220.00 | 40.00 | 40.00 | FKM/fabric | 0003K | 2 |
|
| MA2 | 45.00 | 60.00 | 22.50 | 0.00 | NBR/fabric | 0001K | 1 |
|
| MA2 | 45.00 | 60.00 | 22.50 | 22.50 | NBR/fabric | 0001K | 2 |
|
| MA2 | 85.00 | 100.00 | 22.50 | 22.50 | NBR/fabric | 0001K | 2 |
|
| MA2 | 32.00 | 44.00 | 22.50 | 22.50 | FKM/fabric | 0003K | 2 |
|
| MA2 | 125.00 | 140.00 | 34.00 | 34.00 | NBR/fabric | 0001K | 2 |
|
| MA2 | 100.00 | 115.00 | 30.00 | 30.00 | NBR/fabric | 0001K | 1 |
|
| MA2 | 20.00 | 30.00 | 18.50 | 18.50 | FKM/fabric | 0003K | 2 |
|
| MA2 | 35.00 | 47.00 | 22.50 | 22.50 | NBR/fabric | 0001K | 2 |
|
| MA2 | 35.00 | 47.00 | 22.50 | 22.50 | FKM/fabric | 0003K | 2 |
|
| MA2 | 36.00 | 48.00 | 22.50 | 22.50 | NBR/fabric | 0001K | 2 |
|
| MA2 | 32.00 | 44.00 | 22.50 | 0.00 | NBR/fabric | 0001K | 2 |
|
| MA2 | 160.00 | 180.00 | 40.00 | 40.00 | NBR/fabric | 0001K | 2 |
|
| MA2 | 100.00 | 115.00 | 30.00 | 30.00 | NBR/fabric | 0001K | 2 |
|
| MA2 | 42.00 | 54.00 | 22.50 | 22.50 | NBR/fabric | 0001K | 1 |
|
| MA2 | 75.00 | 90.00 | 22.50 | 22.50 | NBR/fabric | 0001K | 1 |
|
| MA2 | 10.00 | 20.00 | 18.50 | 18.50 | NBR/fabric | 0001K | 2 |
|
| MA2 | 12.00 | 22.00 | 18.50 | 18.50 | NBR/fabric | 0001K | 2 |
|
| MA2 | 12.00 | 22.00 | 18.50 | 18.50 | NBR/fabric | 0001K | 1 |
|
| MA2 | 12.00 | 22.00 | 18.50 | 18.50 | FKM/fabric | 0003K | 2 |
|
| MA2 | 15.00 | 25.00 | 18.50 | 18.50 | NBR/fabric | 0001K | 2 |
|
| MA2 | 16.00 | 26.00 | 18.50 | 18.50 | NBR/fabric | 0001K | 2 |
|
| MA2 | 16.00 | 26.00 | 18.50 | 18.50 | NBR/fabric | 0001K | 1 |
|
| MA2 | 65.00 | 80.00 | 22.50 | 22.50 | NBR/fabric | 0001K | 1 |
|
| MA2 | 70.00 | 85.00 | 22.50 | 0.00 | NBR/fabric | 0001K | 1 |
|
| MA2 | 70.00 | 85.00 | 22.50 | 22.50 | NBR/fabric | 0001K | 2 |
|
| MA2 | 70.00 | 85.00 | 22.50 | 22.50 | FKM/fabric | 0003K | 2 |
|
| MA2 | 50.00 | 65.00 | 22.50 | 22.50 | FKM/fabric | 0003K | 2 |
|
| MA2 | 22.00 | 32.00 | 18.50 | 0.00 | NBR/fabric | 0001K | 2 |
|
| MA2 | 65.00 | 80.00 | 22.50 | 22.50 | NBR/fabric | 0001K | 2 |
|
| MA2 | 140.00 | 155.00 | 34.00 | 34.00 | NBR/fabric | 0001K | 2 |
|
| MA2 | 22.00 | 32.00 | 18.50 | 0.00 | NBR/fabric | 0001K | 2 |
|
| MA2 | 8.00 | 18.00 | 18.50 | 18.50 | NBR/fabric | 0001K | 2 |
|
| MA2 | 35.00 | 47.00 | 22.50 | 0.00 | NBR/fabric | 0001K | 1 |
|
| MA2 | 110.00 | 125.00 | 30.00 | 30.00 | FKM/fabric | 0003K | 2 |
|
| MA2 | 135.00 | 150.00 | 34.00 | 34.00 | NBR/fabric | 0001K | 2 |
|
| MA2 | 85.00 | 100.00 | 22.50 | 22.50 | NBR/fabric | 0001K | 2 |
|
| MA2 | 150.00 | 170.00 | 40.00 | 40.00 | NBR/fabric | 0001K | 2 |
|
| MA2 | 110.00 | 125.00 | 30.00 | 30.00 | NBR/fabric | 0001K | 2 |
|
| MA2 | 130.00 | 145.00 | 34.00 | 34.00 | NBR/fabric | 0001K | 2 |
|
| MA2 | 115.00 | 130.00 | 30.00 | 30.00 | NBR/fabric | 0001K | 2 |
|
| MA2 | 200.00 | 220.00 | 40.00 | 40.00 | NBR/fabric | 0001K | 2 |
|
| MA2 | 110.00 | 125.00 | 30.00 | 30.00 | NBR/fabric | 0001K | 2 |
|
| MA2 | 180.00 | 200.00 | 40.00 | 40.00 | NBR/fabric | 0001K | 2 |
|
| MA2 | 180.00 | 200.00 | 40.00 | 40.00 | FKM/fabric | 0003K | 2 |
|
| MA2 | 56.00 | 71.00 | 22.50 | 22.50 | NBR/fabric | 0001K | 1 |
|
| MA2 | 56.00 | 71.00 | 22.50 | 22.50 | NBR/fabric | 0001K | 2 |
|
| MA2 | 56.00 | 71.00 | 22.50 | 22.50 | FKM/fabric | 0003K | 2 |
|
| MA2 | 60.00 | 75.00 | 22.50 | 22.50 | NBR/fabric | 0001K | 1 |
|
| MA2 | 60.00 | 75.00 | 22.50 | 22.50 | FKM/fabric | 0003K | 2 |
|
| MA2 | 62.00 | 78.00 | 22.50 | 0.00 | 0000X | 2 |
|
|
| MA2 | 63.00 | 78.00 | 22.50 | 22.50 | NBR/fabric | 0001K | 2 |
|
| MA2 | 160.00 | 180.00 | 40.00 | 40.00 | NBR/fabric | 0001K | 1 |
|
| MA2 | 190.00 | 210.00 | 40.00 | 40.00 | NBR/fabric | 0001K | 2 |
|
| MA2 | 140.00 | 155.00 | 34.00 | 34.00 | NBR/fabric | 0001K | 2 |
|
| MA2 | 140.00 | 155.00 | 34.00 | 34.00 | NBR/fabric | 0001K | 2 |
|
| MA2 | 125.00 | 140.00 | 34.00 | 34.00 | NBR/fabric | 0001K | 1 |
|
| MA2 | 100.00 | 115.00 | 30.00 | 30.00 | FKM/fabric | 0003K | 2 |
|
| MA2 | 100.00 | 115.00 | 30.00 | 30.00 | NBR/fabric | 0001K | 2 |
|
| MA2 | 110.00 | 125.00 | 30.00 | 30.00 | NBR/fabric | 0001K | 2 |
|
| MA2 | 80.00 | 95.00 | 22.50 | 22.50 | NBR/fabric | 0001K | 2 |
|
| MA2 | 80.00 | 95.00 | 22.50 | 22.50 | NBR/fabric | 0001K | 1 |
|
| MA2 | 55.00 | 70.00 | 22.50 | 22.50 | NBR/fabric | 0001K | 1 |
|
| MA2 | 55.00 | 70.00 | 22.50 | 22.50 | NBR/fabric | 0001K | 2 |
|
| MA2 | 55.00 | 70.00 | 22.50 | 22.50 | FKM/fabric | 0003K | 2 |
|
| MA2 | 36.00 | 48.00 | 22.50 | 22.50 | NBR/fabric | 0001K | 1 |
|
| MA2 | 36.00 | 48.00 | 22.50 | 22.50 | FKM/fabric | 0003K | 2 |
|
| MA2 | 40.00 | 52.00 | 22.50 | 0.00 | FKM/fabric | 0003K | 2 |
|
| MA2 | 40.00 | 52.00 | 22.50 | 0.00 | FKM/fabric | 0003K | 2 |
|
| MA2 | 40.00 | 52.00 | 22.50 | 22.50 | NBR/fabric | 0001K | 2 |
|
| MA2 | 32.00 | 44.00 | 22.50 | 22.50 | NBR/fabric | 0001K | 2 |
|
| MA2 | 28.00 | 40.00 | 22.50 | 22.50 | NBR/fabric | 0001K | 2 |
|
| MA2 | 18.00 | 28.00 | 18.50 | 18.50 | NBR/fabric | 0001K | 2 |
|
| MA2 | 95.00 | 110.00 | 30.00 | 30.00 | NBR/fabric | 0001K | 2 |
|
| MA2 | 30.00 | 42.00 | 22.50 | 0.00 | NBR/fabric | 0001K | 2 |
|
| MA2 | 30.00 | 42.00 | 22.50 | 22.50 | NBR/fabric | 0001K | 2 |
|
| MA2 | 18.00 | 28.00 | 18.50 | 18.50 | NBR/fabric | 0001K | 2 |
|
| MA2 | 20.00 | 30.00 | 18.50 | 18.50 | NBR/fabric | 0001K | 1 |
|
| MA2 | 125.00 | 140.00 | 34.00 | 34.00 | NBR/fabric | 0001K | 2 |
|
