Double Wiper 1AY

The PUR wiper 1AY is universallyapplicable in almost all appli-cations in which a particularlygood wiping effect to the out-side and inside as well as areduction of the residual oil filmis required. Depending on profilewidth and diameter, snap fitin closed and undercut housings is possible.

Design: The double wiper has two elastic lips. One acts as a wiper lip and one as a sealing lip. The sealing lip also reduces the residual oil film by wiping it inwards.

Application Range
Temperature Hydraulics - Hydraulic Oils (Mineral Oil Basis): -35 °C / +100 °C
Temperature Hydraulics - Water, Emulsions: ≤ 50 °C
Temperature Pneumatics: -35 °C / +80 °C
Sliding Speed: ≤ 2 m/s
Standard Material: PUR

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Load product catalog

Are you missing materials or dimensions?

Feel free to contact us!

Our sealing experts will be happy to advise you!

+49(201)86606-0 or vk@techno-parts.de

Filter

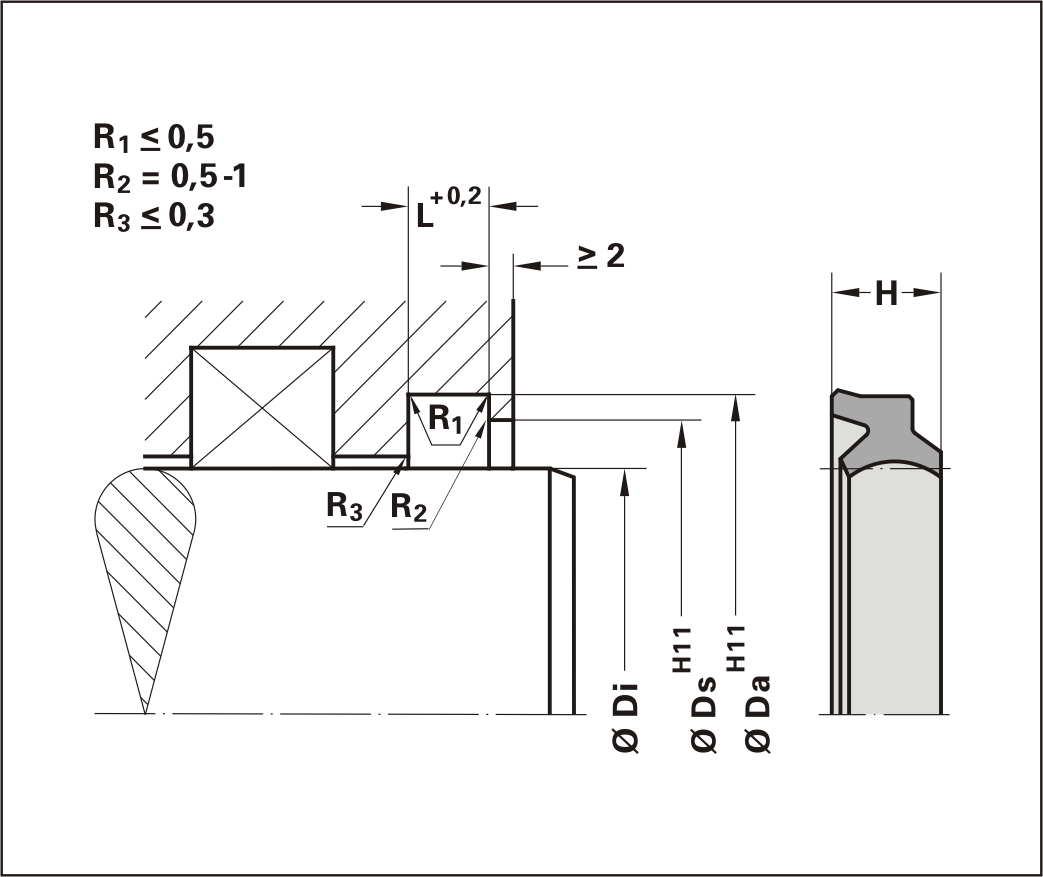

Di [mm] Da [mm] H [mm] L [mm]
Min:
Max:
Material selection
Material:
Material No.
V
Profile Di [mm] Da [mm] H [mm] L [mm] Material Mat. No. V Quantity
1AY 110.00 125.00 9.50 8.50 PUR 0007P 1
1AY 45.00 53.00 5.80 5.00 PUR 0007P 1
1AY 120.00 135.00 9.50 7.50 PUR 0008P 1
1AY 138.00 158.00 9.50 8.50 PUR 0007P 2
1AY 30.00 38.60 6.70 5.30 PUR 0090P 1
1AY 140.00 155.00 9.50 8.50 PUR 0007P 2
1AY 160.00 175.00 9.50 8.50 PUR 0007P 2
1AY 50.00 58.00 6.50 5.00 PUR 0051P 2
1AY 28.00 36.00 6.00 4.50 PUR 0051P 2
1AY 180.00 206.00 16.40 12.10 PUR 0007P 1
1AY 100.00 112.20 8.80 7.10 PUR 0090P 1
1AY 220.00 240.00 18.00 10.20 NBR 0085N 2
1AY 100.00 115.00 9.50 8.50 PUR 0098P 2
1AY 40.00 48.00 6.50 5.00 PUR 0051P 2
1AY 200.00 208.00 8.00 5.00 PUR 0069P 2
1AY 170.00 196.00 16.40 12.10 PUR 0007P 1
1AY 20.00 26.00 4.80 4.00 FKM 0013V 2
1AY 40.00 50.00 8.60 6.50 PUR 0051P 2
1AY 32.00 40.60 6.70 5.30 PUR 0090P 2
1AY 18.00 26.00 6.00 4.50 PUR 0051P 2
1AY 70.00 80.00 6.80 6.00 PUR 0007P 1
1AY 36.00 44.60 6.70 5.30 PUR 0090P 2
1AY 45.00 53.60 6.70 5.30 PUR 0090P 2
1AY 75.00 85.00 7.00 5.00 NBR 0085N 2
1AY 34.00 42.00 4.80 3.60 PUR 0051P 2
1AY 51.00 59.00 5.80 5.00 PUR 0007P 2
1AY 25.00 33.60 7.00 5.00 NBR 0085N 2
1AY 240.00 266.00 16.40 12.10 PUR 0007P 1
1AY 185.00 195.20 6.10 7.00 PUR 0064P 2
1AY 150.00 176.00 16.40 12.10 PUR 0007P 1
1AY 35.00 43.00 7.00 5.50 PUR 0051P 2
1AY 450.00 480.00 27.00 18.00 NBR 0090N 2
1AY 30.00 40.00 7.50 6.00 PUR 0051P 2
1AY 14.00 20.00 4.80 4.00 PUR 0090P 2
1AY 25.00 31.00 4.80 4.00 PUR 0007P 1
1AY 340.00 370.00 27.00 18.00 NBR 0085N 2
1AY 18.00 24.60 4.80 3.80 PUR 0090P 1
1AY 220.00 246.00 16.40 12.10 PUR 0007P 1
1AY 270.00 296.00 16.40 12.10 PUR 0007P 2
1AY 42.00 51.00 8.50 5.80 PUR 0051P 2
1AY 10.00 16.00 4.80 4.00 PUR 0007P 1
1AY 28.00 36.00 6.00 4.00 PUR 0051P 2
1AY 22.00 28.00 4.80 4.00 EPDM 0087E 2
1AY 25.00 31.00 4.70 4.00 FKM 0085V 2
1AY 54.00 66.70 7.35 6.30 PUR 0106P 2
1AY 50.00 56.00 5.50 4.90 PUR 0051P 2
1AY 18.00 24.00 4.80 4.00 FKM 0085V 2
1AY 40.00 62.00 13.70 12.00 PUR 0103P 2
1AY 68.00 88.00 13.00 12.00 PUR 0051P 2
1AY 75.00 85.00 6.80 6.00 PUR 0007P 2
1AY 25.00 31.00 4.80 4.00 PUR 0060P 2
1AY 125.00 145.80 13.10 9.70 PUR 0007P 2
1AY 60.00 70.00 6.80 6.00 PUR 0103P 1
1AY 95.00 103.10 9.00 6.10 PUR 0066P 1
1AY 32.00 40.00 6.70 5.30 PUR 0090P 2
1AY 70.00 80.00 6.80 6.00 FKM 0085V 2
1AY 28.00 36.00 5.80 5.00 PUR 0007P 2
1AY 200.00 226.00 16.40 12.10 PUR 0007P 1
1AY 230.00 250.00 18.00 10.20 NBR 0090N 2
1AY 26.00 34.00 6.00 4.50 PUR 0051P 2
1AY 36.00 44.00 5.80 5.00 PUR 0007P 1
1AY 55.00 65.00 6.80 6.00 PUR 0007P 2
1AY 32.00 40.00 5.80 5.00 PUR 0090P 2
1AY 260.00 286.00 16.40 12.10 PUR 0098P 2
1AY 275.00 285.00 9.70 6.00 PUR 0064P 2
1AY 45.00 53.00 6.50 5.00 PUR 0007P 2
1AY 50.00 58.00 5.80 5.00 PUR 0007P 2
1AY 750.00 780.00 26.70 16.80 NBR 0085N 2
1AY 16.00 22.00 4.80 4.00 FKM 0013V 2
1AY 35.00 43.00 5.80 5.00 PUR 0007P 1
1AY 37.00 45.00 5.80 5.00 PUR 0007P 2
1AY 240.00 255.00 10.50 8.50 PUR 0069P 2
1AY 90.00 100.00 6.80 6.00 PUR 0001P 2
1AY 20.00 26.00 6.80 5.50 NBR 0085N 2
1AY 63.00 73.00 6.80 6.00 PUR 0007P 1
1AY 35.00 43.60 6.70 5.30 PUR 0090P 2
1AY 45.00 60.00 8.00 6.30 PUR 0051P 2
1AY 12.00 18.00 4.80 4.00 FKM 0013V 1
1AY 40.00 48.00 5.80 5.00 PUR 0007P 1
1AY 249.00 275.00 24.00 16.00 NBR 0085N 2
1AY 22.00 28.00 4.80 4.00 PUR 0060P 2
1AY 40.00 48.00 5.80 5.00 PUR 0060P 2
1AY 240.00 266.00 16.40 12.10 PUR 0007P 2
1AY 65.00 75.00 6.80 6.00 PUR 0007P 2
1AY 25.00 33.60 7.00 5.30 PUR 0090P 2
1AY 260.00 286.00 16.40 12.10 PUR 0007P 2
1AY 210.00 236.00 16.40 12.10 PUR 0007P 1
1AY 185.00 215.00 26.00 19.80 NBR 0085N 2
1AY 160.00 186.00 16.40 12.10 PUR 0007P 1
1AY 50.00 58.60 6.70 5.30 PUR 0090P 2
1AY 28.00 36.60 6.00 5.30 FKM 0085V 2
1AY 12.00 18.00 4.80 4.00 PUR 0001P 2
1AY 230.00 256.00 16.40 12.10 PUR 0007P 1
1AY 220.00 246.00 16.40 12.10 PUR 0007P 2
1AY 85.00 95.00 6.80 6.00 PUR 0007P 2
1AY 40.00 48.60 6.00 5.30 FKM 0256V 2
1AY 8.00 13.00 4.10 3.50 PUR 0007P 1
1AY 220.00 230.00 9.70 6.00 PUR 0064P 2
1AY 32.00 40.60 6.00 5.30 FKM 0085V 2
1AY 125.00 137.20 9.00 7.70 PUR 0098P 1
1AY 25.00 33.60 7.00 5.30 PUR 0090P 2
1AY 400.00 415.00 7.50 6.50 PUR 0098P 2
1AY 25.50 34.50 5.80 4.50 PUR 0051P 2
1AY 45.00 53.00 6.50 5.00 PUR 0051P 2
1AY 16.00 22.00 4.80 4.00 PUR 0076P 2
1AY 46.00 54.00 5.80 4.50 PUR 0051P 2
1AY 10.00 16.00 4.80 3.60 FKM 0013V 1
1AY 90.00 100.00 6.80 5.30 PUR 0008P 1
1AY 230.00 255.30 19.00 12.70 PUR 0064P 2
1AY 90.00 100.00 6.80 6.00 PUR 0007P 1
1AY 45.00 53.00 5.80 5.00 PUR 0015P 1
1AY 40.00 46.00 5.50 4.90 PUR 0051P 2
1AY 220.00 246.00 16.40 12.10 PUR 0007P 2
1AY 5.00 11.00 4.60 3.70 NBR 0085N 2
1AY 5.00 11.00 5.40 4.20 NBR 0085N 2
1AY 12.00 18.00 4.80 3.60 NBR 0090N 1
1AY 30.00 38.00 5.80 5.00 PUR 0007P 1
1AY 32.00 40.00 5.80 5.00 PUR 0007P 1
1AY 12.00 18.00 4.80 3.60 NBR 0090N 2
1AY 90.00 100.00 7.00 6.00 PUR 0051P 1
1AY 12.00 18.00 4.80 4.00 PUR 0007P 1
1AY 25.00 31.00 4.70 4.00 FKM 0085V 2
1AY 150.00 176.00 16.40 12.10 PUR 0007P 2
1AY 12.00 18.00 4.80 4.00 PUR 0015P 1
1AY 12.00 18.00 5.00 3.50 PUR 0090P 2
1AY 14.00 20.00 4.80 4.00 FKM 0085V 2
1AY 14.00 20.00 4.80 4.00 FKM 0085V 1
1AY 15.00 23.00 6.00 5.00 NBR 0085N 2
1AY 16.00 22.00 4.80 4.00 EPDM 0088E 1
1AY 16.00 22.00 4.80 4.00 FKM 0085V 1
1AY 16.00 22.00 4.80 4.00 VMQ 0086S 2
1AY 16.00 24.30 6.00 4.30 NBR 0085N 2
1AY 16.00 25.00 6.50 5.00 FKM 0085V 2
1AY 18.00 24.00 4.80 4.00 FKM 0013V 1
1AY 22.00 28.00 4.80 4.00 FKM 0013V 2
1AY 25.00 33.60 6.00 5.30 FKM 0085V 2
1AY 25.40 35.40 7.40 5.40 FKM 0085V 2
1AY 35.00 43.00 5.80 5.00 FKM 0085V 2
1AY 35.00 43.60 6.00 5.30 FKM 0085V 2
1AY 36.00 44.00 5.80 5.00 FKM 0013V 2
1AY 36.00 44.00 6.70 4.70 NBR 0085N 2
1AY 36.00 44.60 6.00 5.30 FKM 0085V 2
1AY 36.00 44.60 7.00 5.30 NBR 0090N 2
1AY 37.00 45.60 6.00 5.30 FKM 0085V 2
1AY 38.00 46.00 5.80 5.00 PUR 0051P 2
1AY 40.00 48.60 6.00 5.30 FKM 0085V 1
1AY 40.00 54.00 11.50 8.50 NBR 0085N 2
1AY 43.00 51.00 5.80 5.00 FKM 0085V 2
1AY 43.00 51.00 6.50 5.00 FKM 0085V 2
1AY 44.00 53.00 7.00 5.00 NBR 0085N 2
1AY 48.00 56.60 6.00 5.30 FKM 0085V 2
1AY 52.00 60.00 5.80 5.00 FKM 0085V 2
1AY 54.00 62.00 5.80 5.00 FKM 0085V 2
1AY 56.00 66.00 6.80 6.00 PTFE-Compound 0000T 2
1AY 58.00 68.00 6.80 5.30 FKM 0085V 1
1AY 58.00 68.00 6.80 5.30 FKM 0085V 2
1AY 62.50 75.00 8.60 6.60 NBR 0085N 2
1AY 63.00 73.00 6.80 6.00 HNBR 0086N 2
1AY 70.00 80.00 6.80 5.30 NBR 0085N 2
1AY 75.00 85.00 6.80 6.00 FKM 0085V 2
1AY 90.00 100.00 6.80 6.00 FKM 0085V 2
1AY 100.00 110.00 6.80 5.30 PUR 0007P 2
1AY 60.00 70.00 6.80 6.00 PUR 0007P 1
1AY 100.00 110.00 6.80 6.00 PUR 0051P 2
1AY 15.00 21.00 4.80 4.00 PUR 0007P 2
1AY 20.00 28.00 8.00 6.00 NBR 0085N 2
1AY 110.00 125.00 9.50 8.50 FKM 0085V 2
1AY 110.00 125.00 9.50 8.50 PUR 0066P 1
1AY 20.00 26.00 4.80 4.00 PUR 0007P 1
1AY 25.00 31.00 4.80 3.60 PUR 0008P 2
1AY 114.00 129.00 9.00 8.00 PUR 0051P 2
1AY 18.00 24.00 4.80 4.00 PUR 0007P 2
1AY 120.00 135.00 9.50 7.50 PUR 0118P 1
1AY 85.00 95.00 6.80 6.00 PUR 0008P 2
1AY 120.00 135.00 9.50 8.50 PUR 0008P 2
1AY 125.00 137.00 10.00 7.00 PUR 0064P 2
1AY 18.00 24.60 4.80 3.80 PUR 0090P 2
1AY 127.00 139.70 9.60 6.98 PUR 0069P 2
1AY 125.00 140.00 9.50 8.50 PUR 0007P 2
1AY 25.00 31.00 4.80 4.00 PUR 0010P 2
1AY 40.00 48.00 5.80 5.00 EPDM 0087E 2
1AY 125.00 140.00 9.50 8.50 FKM 0085V 2
1AY 125.00 145.80 13.10 9.70 0003M 0003M 2
1AY 130.00 145.00 9.50 8.50 PUR 0069P 2
1AY 25.00 34.00 6.50 5.00 PUR 0051P 2
1AY 138.00 158.00 9.50 7.50 PUR 0069P 2
1AY 238.40 260.00 22.00 15.50 NBR 0085N 2
1AY 240.00 266.00 16.40 12.10 0003M 0003M 2
1AY 270.00 296.00 16.40 12.10 PUR 0007P 1
1AY 430.00 460.00 27.00 18.00 NBR 0085N 2
1AY 450.00 480.00 27.00 18.00 NBR 0090N 2
1AY 12.00 16.50 4.00 3.50 PUR 0051P 2
1AY 45.00 54.00 6.70 5.30 PUR 0098P 2
1AY 12.00 18.00 5.00 3.50 PUR 0090P 1
1AY 90.00 100.00 6.80 6.00 PUR 0103P 2
1AY 5.00 10.00 4.10 3.50 PUR 0064P 2
1AY 85.00 105.80 13.30 9.70 PUR 0007P 1
1AY 56.00 66.00 6.80 6.00 PUR 0007P 1
1AY 450.00 480.00 27.00 18.00 NBR 0085N 2
1AY 25.00 35.00 7.00 6.00 PUR 0090P 2
1AY 110.00 130.80 13.10 9.70 PUR 0007P 1
1AY 18.00 24.60 4.80 3.80 PUR 0090P 2
1AY 40.00 48.00 5.80 5.00 PUR 0090P 2
1AY 22.00 28.00 4.80 4.00 PUR 0007P 1
1AY 63.00 73.00 6.80 5.30 PUR 0008P 2
1AY 56.00 64.00 6.50 4.80 NBR 0085N 2
1AY 80.00 90.00 6.80 6.00 PUR 0007P 1
1AY 28.00 36.00 5.80 5.00 PUR 0090P 2
1AY 12.00 18.60 5.00 3.80 PUR 0090P 1
1AY 180.00 192.00 11.00 8.20 PUR 0098P 2
1AY 290.00 316.00 16.40 12.10 PUR 0007P 2
1AY 16.00 22.00 4.80 4.00 PUR 0007P 1
1AY 50.80 59.00 5.80 4.00 PUR 0051P 1
1AY 228.50 243.50 10.00 7.50 NBR 0085N 2
1AY 12.00 18.00 5.00 3.50 NBR 0090N 1
1AY 55.00 65.00 7.00 5.20 PUR 0051P 2
1AY 14.00 20.00 4.80 4.00 PUR 0007P 1
1AY 40.00 48.00 6.00 4.00 PUR 0051P 2
1AY 63.00 71.60 6.80 5.30 PUR 0051P 2
1AY 88.90 101.50 8.60 6.60 NBR 0085N 2
1AY 60.00 75.00 9.00 5.00 NBR 0090N 2
1AY 6.37 10.94 3.60 2.87 FKM 0085V 2
1AY 240.00 266.00 16.40 12.10 PUR 0007P 1
