Thrust Washer FDA

Thrust washer of a metal composite and a sliding layer of PTFE/lead for maintenance-free operation, general applications.

Application Range
Temperature: -200 °C / +280 °C
Sliding Speed: ≤ 2 m/s
Standard Material: 0007K

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Load product catalog

Are you missing materials or dimensions?

Feel free to contact us!

Our sealing experts will be happy to advise you!

+49(201)86606-0 or vk@techno-parts.de

Filter

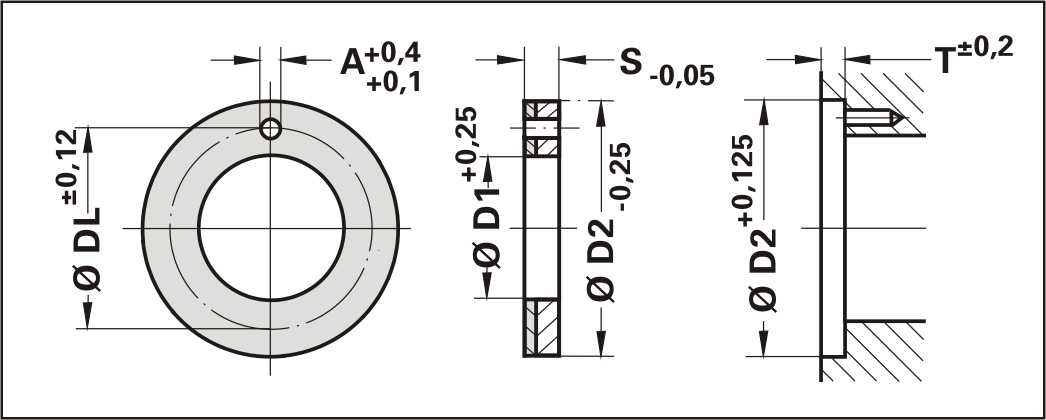

D1 [mm] D2 [mm] s [mm]
Min:
Max:
Material selection
Material:
Material No.
V
Profile D1 [mm] D2 [mm] s [mm] Material Mat. No. V Quantity
FDA 48.00 74.00 2.00 PTFE + steel 0007K 2
FDA 14.00 26.00 1.50 PTFE + steel 0007K 2
FDA 20.00 36.00 1.50 PTFE + steel 0007K 2
FDA 28.00 48.00 1.50 PTFE + steel 0007K 2
FDA 14.10 17.00 0.50 0020A 0020A 2
FDA 62.00 90.00 2.00 PTFE + steel 0007K 2
FDA 32.00 54.00 1.50 PTFE + steel 0007K 2
FDA 52.00 78.00 2.00 PTFE + steel 0007K 2
FDA 12.00 24.00 1.50 PTFE + steel 0007K 2
FDA 16.00 30.00 1.50 PTFE + steel 0007K 2
FDA 42.00 66.00 1.50 PTFE + steel 0007K 2
FDA 26.00 44.00 1.50 PTFE + steel 0007K 2
FDA 22.00 38.00 1.50 PTFE + steel 0007K 1
FDA 18.00 32.00 1.50 PTFE + steel 0007K 2
FDA 10.00 20.00 1.50 PTFE + steel 0007K 2
FDA 38.00 62.00 1.50 PTFE + steel 0007K 2
FDA 30.50 68.80 1.50 PTFE + Bronze 0010K 2
