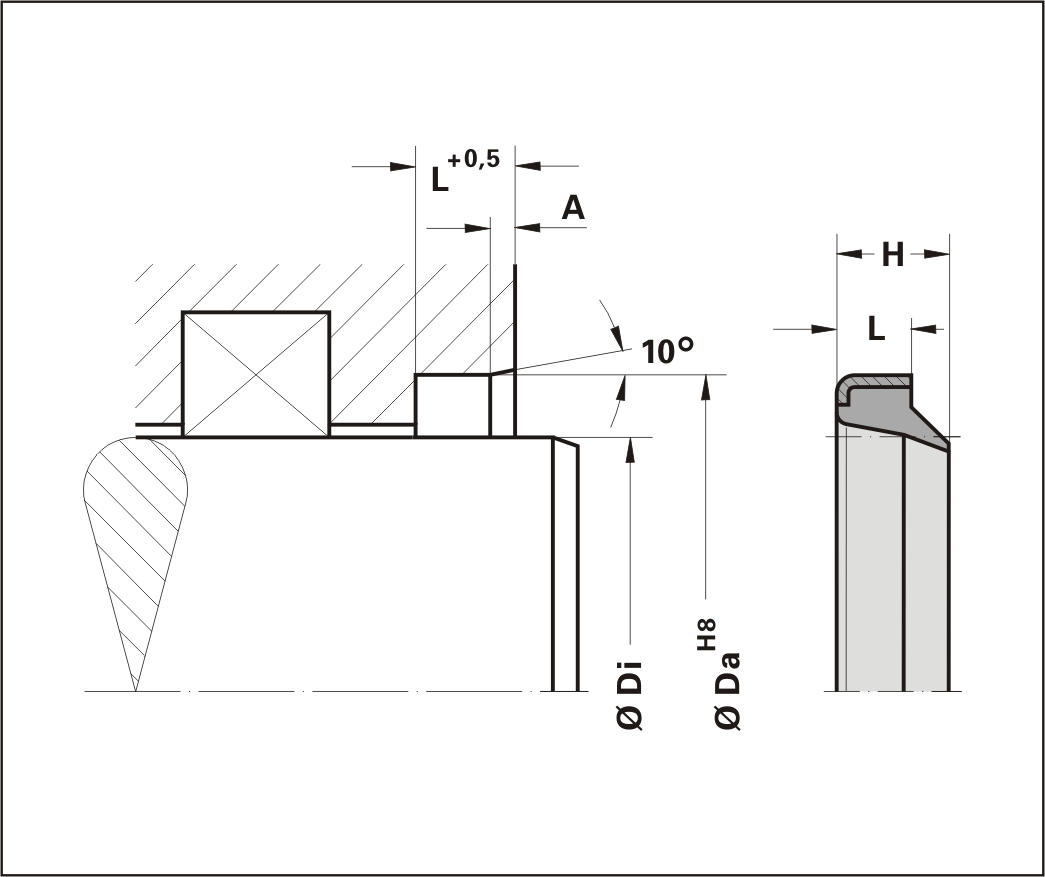

Wiper 1AM
The wiper 1AM is universally applicable in almost all applications of general mechanical engineering. Due to its metal cage that is firmly attached to the elastomer part, it is particularly suitable for applications where a tight fit in an open housing is required.For use in particularly wear-intensive applications or in applications with increased UV or ozone exposure, the wiper is available in PUR.
Application Range
Temperature Hydraulics NBR: -35 °C / +100 °C
Temperature Hydraulics PUR - Hydraulic Oils (Mineral Oil Basis): -35 °C / +100 °C
Temperature Hydraulics PUR - Water, Emulsions ≤ 50 °C
Temperature Pneumatics PUR: -35 °C / +80 °C
Sliding Speed: ≤ 2 m/s
Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.
Load product catalogWiper 1AM
Are you missing materials or dimensions?
Feel free to contact us!
Our sealing experts will be happy to advise you!
Filter
| Di [mm] | Da [mm] | H [mm] | L [mm] | |
|---|---|---|---|---|
| Min: | ||||
| Max: |
| Material selection | |
|---|---|
| Material: | |
| Material No. |
| V | |
|---|---|
| Profile | Di [mm] | Da [mm] | H [mm] | L [mm] | Material | Mat. No. | V | Quantity |
|---|---|---|---|---|---|---|---|---|
| 1AM | 40.00 | 50.00 | 10.00 | 7.00 | PUR | 0006K | 2 |
|
| 1AM | 28.00 | 38.00 | 8.00 | 5.00 | NBR | 0090N | 1 |
|
| 1AM | 30.00 | 40.00 | 10.00 | 7.00 | FKM | 0000V | 2 |
|
| 1AM | 20.00 | 30.00 | 6.00 | 4.00 | NBR | 0000N | 2 |
|
| 1AM | 150.00 | 165.00 | 12.00 | 9.00 | NBR | 0000N | 1 |
|
| 1AM | 50.00 | 60.00 | 8.00 | 5.00 | NBR | 0000N | 3 |
|
| 1AM | 45.00 | 60.00 | 10.00 | 7.00 | NBR | 0090N | 2 |
|
| 1AM | 48.00 | 60.00 | 10.00 | 7.00 | NBR | 0090N | 2 |
|
| 1AM | 135.00 | 145.00 | 10.00 | 7.00 | NBR | 0000N | 1 |
|
| 1AM | 45.00 | 55.00 | 10.00 | 7.00 | FKM | 0000V | 2 |
|
| 1AM | 50.00 | 60.00 | 10.00 | 7.00 | FKM | 0000V | 2 |
|
| 1AM | 12.00 | 18.00 | 4.00 | 3.00 | NBR | 0000N | 2 |
|
| 1AM | 95.00 | 106.00 | 10.00 | 7.00 | NBR | 0000N | 2 |
|
| 1AM | 165.00 | 180.00 | 12.00 | 8.00 | NBR | 0000N | 2 |
|
| 1AM | 12.00 | 18.00 | 5.00 | 3.00 | PUR | 0006K | 2 |
|
| 1AM | 37.00 | 47.00 | 7.00 | 5.00 | NBR | 0000N | 2 |
|
| 1AM | 12.00 | 22.00 | 8.00 | 5.00 | NBR | 0000N | 1 |
|
| 1AM | 36.00 | 45.00 | 10.00 | 7.00 | PUR | 0006K | 2 |
|
| 1AM | 90.00 | 100.00 | 10.00 | 7.00 | NBR | 0000N | 1 |
|
| 1AM | 70.00 | 80.00 | 10.00 | 7.00 | NBR | 0000N | 2 |
|
| 1AM | 50.00 | 60.00 | 10.00 | 7.00 | NBR | 0000N | 1 |
|
| 1AM | 115.00 | 125.00 | 10.00 | 7.00 | NBR | 0000N | 1 |
|
| 1AM | 30.00 | 40.00 | 10.00 | 7.00 | NBR | 0000N | 2 |
|
| 1AM | 15.00 | 25.00 | 8.00 | 5.00 | NBR | 0090N | 1 |
|
| 1AM | 100.00 | 110.00 | 10.00 | 7.00 | PUR | 0006K | 2 |
|
| 1AM | 40.00 | 50.00 | 8.00 | 5.00 | FKM | 0000V | 1 |
|
| 1AM | 63.00 | 75.00 | 10.00 | 7.00 | NBR | 0000N | 1 |
|
| 1AM | 32.00 | 42.00 | 8.00 | 5.00 | PUR | 0006K | 2 |
|
| 1AM | 16.00 | 22.00 | 4.00 | 3.00 | NBR | 0000N | 2 |
|
| 1AM | 50.00 | 65.00 | 8.00 | 5.00 | NBR | 0000N | 2 |
|
| 1AM | 28.00 | 38.00 | 10.00 | 7.00 | NBR | 0000N | 2 |
|
| 1AM | 14.00 | 20.00 | 5.00 | 3.50 | NBR | 0000N | 3 |
|
| 1AM | 105.00 | 115.00 | 10.00 | 7.00 | PUR | 0006K | 2 |
|
| 1AM | 56.00 | 66.00 | 8.00 | 5.00 | NBR | 0000N | 2 |
|
| 1AM | 45.00 | 55.00 | 10.00 | 7.00 | NBR | 0090N | 1 |
|
| 1AM | 120.00 | 136.00 | 12.00 | 9.00 | PUR | 0006K | 1 |
|
| 1AM | 56.00 | 66.00 | 10.00 | 7.00 | NBR | 0000N | 1 |
|
| 1AM | 14.00 | 22.00 | 4.00 | 3.00 | NBR | 0000N | 1 |
|
| 1AM | 50.00 | 56.00 | 8.00 | 5.00 | NBR | 0000N | 1 |
|
| 1AM | 16.00 | 22.00 | 4.00 | 3.00 | NBR | 0000N | 2 |
|
| 1AM | 30.00 | 45.00 | 8.00 | 5.00 | NBR | 0000N | 1 |
|
| 1AM | 36.00 | 46.00 | 10.00 | 7.00 | PUR | 0006K | 1 |
|
| 1AM | 25.00 | 35.00 | 10.00 | 7.00 | PUR | 0006K | 2 |
|
| 1AM | 150.00 | 165.00 | 12.00 | 9.00 | NBR | 0000N | 2 |
|
| 1AM | 60.00 | 70.00 | 10.00 | 7.00 | PUR | 0006K | 2 |
|
| 1AM | 60.00 | 70.00 | 10.00 | 7.00 | FKM | 0000V | 1 |
|
| 1AM | 220.00 | 240.00 | 16.00 | 12.00 | NBR | 0090N | 2 |
|
| 1AM | 28.00 | 38.00 | 10.00 | 7.00 | NBR | 0000N | 2 |
|
| 1AM | 65.00 | 75.00 | 10.00 | 7.00 | NBR | 0000N | 2 |
|
| 1AM | 10.00 | 20.00 | 8.00 | 5.00 | NBR | 0000N | 2 |
|
| 1AM | 80.00 | 100.00 | 15.00 | 12.00 | NBR | 0000N | 2 |
|
| 1AM | 200.00 | 220.00 | 16.00 | 12.00 | NBR | 0000N | 1 |
|
| 1AM | 8.00 | 15.00 | 7.00 | 4.50 | NBR | 0000N | 2 |
|
| 1AM | 60.00 | 70.00 | 7.00 | 5.00 | NBR | 0000N | 2 |
|
| 1AM | 20.00 | 30.00 | 8.00 | 5.00 | NBR | 0000N | 2 |
|
| 1AM | 10.00 | 16.00 | 4.50 | 3.00 | FKM | 0000V | 2 |
|
| 1AM | 100.00 | 110.00 | 10.00 | 7.00 | NBR | 0000N | 1 |
|
| 1AM | 140.00 | 155.00 | 12.00 | 9.00 | PUR | 0006K | 2 |
|
| 1AM | 32.00 | 42.00 | 8.00 | 5.00 | PUR | 0006K | 2 |
|
| 1AM | 135.00 | 150.00 | 12.00 | 9.00 | FKM | 0000V | 2 |
|
| 1AM | 14.00 | 20.00 | 4.50 | 3.50 | PUR | 0000P | 2 |
|
| 1AM | 70.00 | 80.00 | 10.00 | 7.00 | PUR | 0006K | 1 |
|
| 1AM | 10.00 | 16.00 | 4.50 | 3.00 | NBR | 0000N | 1 |
|
| 1AM | 45.00 | 55.00 | 10.00 | 7.00 | PUR | 0006K | 2 |
|
| 1AM | 18.00 | 28.00 | 10.00 | 7.00 | NBR | 0000N | 2 |
|
| 1AM | 28.00 | 40.00 | 10.00 | 7.00 | NBR | 0000N | 2 |
|
| 1AM | 55.00 | 65.00 | 7.00 | 5.00 | NBR | 0000N | 1 |
|
| 1AM | 85.00 | 95.00 | 10.00 | 7.00 | FKM | 0000V | 2 |
|
| 1AM | 22.00 | 32.00 | 10.00 | 7.00 | NBR | 0090N | 1 |
|
| 1AM | 20.00 | 30.00 | 6.00 | 4.00 | NBR | 0090N | 2 |
|
| 1AM | 22.00 | 32.00 | 7.00 | 5.00 | PUR | 0090P | 1 |
|
| 1AM | 30.00 | 40.00 | 10.00 | 7.00 | NBR | 0090N | 2 |
|
| 1AM | 32.00 | 45.00 | 8.00 | 4.00 | PUR | 0006K | 2 |
|
| 1AM | 10.00 | 16.00 | 5.00 | 3.50 | NBR | 0000N | 2 |
|
| 1AM | 16.00 | 22.00 | 4.00 | 3.00 | PUR | 0006K | 1 |
|
| 1AM | 35.00 | 45.00 | 7.00 | 5.00 | NBR | 0000N | 2 |
|
| 1AM | 40.00 | 50.00 | 10.00 | 7.00 | NBR | 0000N | 3 |
|
| 1AM | 65.00 | 75.00 | 10.00 | 7.00 | FKM | 0000V | 2 |
|
| 1AM | 160.00 | 175.00 | 12.00 | 9.00 | NBR | 0000N | 2 |
|
| 1AM | 42.00 | 52.00 | 10.00 | 7.00 | PUR | 0006K | 2 |
|
| 1AM | 50.00 | 60.00 | 10.00 | 7.00 | FKM | 0000V | 2 |
|
| 1AM | 42.00 | 52.00 | 10.00 | 7.00 | NBR | 0000N | 2 |
|
| 1AM | 30.00 | 40.00 | 10.00 | 7.00 | FKM | 0000V | 2 |
|
| 1AM | 120.00 | 130.00 | 7.00 | 10.00 | NBR | 0000N | 1 |
|
| 1AM | 10.00 | 16.00 | 4.50 | 3.00 | NBR | 0000N | 2 |
|
| 1AM | 20.00 | 28.00 | 8.00 | 5.00 | NBR | 0176N | 1 |
|
| 1AM | 60.00 | 70.00 | 7.00 | 5.00 | NBR | 0000N | 2 |
|
| 1AM | 63.00 | 83.00 | 8.00 | 5.00 | NBR | 0000N | 2 |
|
| 1AM | 18.00 | 26.00 | 7.00 | 5.00 | NBR | 0090N | 1 |
|
| 1AM | 25.00 | 35.00 | 8.00 | 5.00 | PUR | 0006K | 1 |
|
| 1AM | 90.00 | 100.00 | 7.00 | 5.00 | NBR | 0090N | 1 |
|
| 1AM | 40.00 | 50.00 | 10.00 | 7.00 | NBR | 0000N | 1 |
|
| 1AM | 18.00 | 26.00 | 7.00 | 5.00 | NBR | 0000N | 2 |
|
| 1AM | 14.00 | 22.00 | 4.00 | 3.00 | NBR | 0000N | 1 |
|
| 1AM | 60.00 | 74.00 | 8.00 | 5.00 | NBR | 0000N | 2 |
|
| 1AM | 35.00 | 45.00 | 10.00 | 7.00 | PUR | 0006K | 2 |
|
| 1AM | 36.00 | 45.00 | 10.00 | 7.00 | NBR | 0000N | 2 |
|
| 1AM | 10.00 | 16.00 | 3.50 | 5.00 | PUR | 0006K | 1 |
|
| 1AM | 30.00 | 40.00 | 8.00 | 5.00 | FKM | 0000V | 2 |
|
| 1AM | 45.00 | 60.00 | 10.00 | 7.00 | FKM | 0000V | 2 |
|
| 1AM | 20.00 | 30.00 | 6.00 | 4.00 | NBR | 0000N | 1 |
|
| 1AM | 110.00 | 120.00 | 10.00 | 7.00 | NBR | 0090N | 2 |
|
| 1AM | 10.00 | 16.00 | 4.70 | 3.50 | PUR | 0006K | 2 |
|
| 1AM | 55.00 | 65.00 | 8.00 | 5.00 | PUR | 0006K | 2 |
|
| 1AM | 30.00 | 40.00 | 8.00 | 5.00 | PUR | 0006K | 2 |
|
| 1AM | 35.00 | 45.00 | 10.00 | 7.00 | PUR | 0006K | 2 |
|
| 1AM | 20.00 | 28.00 | 5.00 | 3.50 | NBR | 0000N | 1 |
|
| 1AM | 16.00 | 26.00 | 8.00 | 5.00 | NBR | 0000N | 2 |
|
| 1AM | 26.00 | 34.00 | 8.00 | 5.00 | NBR | 0090N | 1 |
|
| 1AM | 20.00 | 30.00 | 6.00 | 4.00 | FKM | 0000V | 2 |
|
| 1AM | 40.00 | 50.00 | 8.00 | 5.00 | NBR | 0000N | 1 |
|
| 1AM | 30.00 | 40.00 | 8.00 | 5.00 | NBR | 0000N | 1 |
|
| 1AM | 85.00 | 95.00 | 10.00 | 7.00 | NBR | 0000N | 1 |
|
| 1AM | 55.00 | 63.00 | 10.00 | 7.00 | NBR | 0000N | 1 |
|
| 1AM | 60.00 | 74.00 | 8.00 | 5.00 | NBR | 0000N | 2 |
|
| 1AM | 32.00 | 45.00 | 10.00 | 7.00 | NBR | 0000N | 1 |
|
| 1AM | 35.00 | 45.00 | 10.00 | 7.00 | FKM | 0000V | 2 |
|
| 1AM | 70.00 | 80.00 | 7.00 | 5.00 | NBR | 0090N | 1 |
|
| 1AM | 28.00 | 40.00 | 10.00 | 7.00 | PUR | 0006K | 2 |
|
| 1AM | 30.00 | 40.00 | 8.00 | 5.00 | NBR | 0000N | 1 |
|
| 1AM | 115.00 | 125.00 | 7.00 | 10.00 | PUR | 0006K | 2 |
|
| 1AM | 30.00 | 40.00 | 10.00 | 7.00 | NBR | 0000N | 1 |
|
| 1AM | 25.00 | 35.00 | 10.00 | 7.00 | NBR | 0000N | 2 |
|
| 1AM | 6.00 | 13.00 | 4.50 | 3.00 | NBR | 0000N | 1 |
|
| 1AM | 6.00 | 13.00 | 4.50 | 3.00 | NBR | 0000N | 2 |
|
| 1AM | 8.00 | 14.00 | 4.70 | 3.50 | PUR | 0090P | 2 |
|
| 1AM | 8.00 | 14.00 | 5.00 | 3.50 | NBR | 0176N | 1 |
|
| 1AM | 12.00 | 18.00 | 4.70 | 3.50 | PUR | 0090P | 2 |
|
| 1AM | 32.00 | 45.00 | 8.00 | 4.00 | NBR | 0000N | 2 |
|
| 1AM | 16.00 | 22.00 | 4.00 | 3.00 | NBR | 0090N | 1 |
|
| 1AM | 20.00 | 28.00 | 5.00 | 3.50 | NBR | 0000N | 2 |
|
| 1AM | 19.00 | 26.00 | 8.00 | 5.00 | NBR | 0090N | 1 |
|
| 1AM | 8.00 | 22.00 | 4.50 | 3.00 | NBR | 0000N | 2 |
|
| 1AM | 10.00 | 18.00 | 7.00 | 5.00 | NBR | 0000N | 2 |
|
| 1AM | 10.00 | 20.00 | 8.00 | 5.00 | NBR | 0000N | 1 |
|
| 1AM | 12.00 | 18.00 | 4.00 | 3.00 | NBR | 0000N | 1 |
|
| 1AM | 12.00 | 18.00 | 6.00 | 4.00 | NBR | 0000N | 2 |
|
| 1AM | 12.00 | 20.00 | 6.00 | 4.00 | NBR | 0000N | 2 |
|
| 1AM | 12.00 | 20.00 | 6.00 | 4.00 | FKM | 0000V | 2 |
|
| 1AM | 12.00 | 20.00 | 6.00 | 4.00 | NBR | 0000N | 1 |
|
| 1AM | 12.00 | 22.00 | 8.00 | 5.00 | NBR | 0090N | 2 |
|
| 1AM | 14.00 | 20.00 | 5.00 | 3.50 | NBR | 0000N | 1 |
|
| 1AM | 14.00 | 22.00 | 4.00 | 3.00 | NBR | 0090N | 2 |
|
| 1AM | 15.00 | 25.00 | 8.00 | 5.00 | NBR | 0000N | 2 |
|
| 1AM | 16.00 | 22.00 | 4.50 | 3.00 | NBR | 0090N | 1 |
|
| 1AM | 16.00 | 22.00 | 4.70 | 3.50 | PUR | 0000P | 2 |
|
| 1AM | 16.00 | 26.00 | 8.00 | 5.00 | FKM | 0000V | 1 |
|
| 1AM | 16.00 | 26.00 | 8.00 | 5.00 | NBR | 0000N | 2 |
|
| 1AM | 16.00 | 26.00 | 8.00 | 5.00 | NBR | 0000N | 2 |
|
| 1AM | 20.00 | 26.00 | 7.00 | 4.00 | NBR | 0090N | 1 |
|
| 1AM | 20.00 | 28.00 | 5.00 | 3.50 | NBR | 0000N | 2 |
|
| 1AM | 20.00 | 28.00 | 5.00 | 3.50 | FKM | 0000V | 2 |
|
| 1AM | 20.00 | 28.00 | 5.00 | 3.50 | NBR | 0090N | 1 |
|
| 1AM | 20.00 | 28.00 | 8.00 | 5.00 | NBR | 0000N | 2 |
|
| 1AM | 20.00 | 28.00 | 8.00 | 5.00 | NBR | 0090N | 2 |
|
| 1AM | 20.00 | 30.00 | 10.00 | 7.00 | FKM | 0000V | 2 |
|
| 1AM | 20.00 | 30.00 | 10.00 | 7.00 | NBR | 0090N | 1 |
|
| 1AM | 22.00 | 28.00 | 8.00 | 5.00 | NBR | 0090N | 1 |
|
| 1AM | 22.00 | 28.00 | 9.00 | 5.00 | NBR | 0000N | 2 |
|
| 1AM | 22.00 | 28.00 | 9.00 | 5.00 | FKM | 0000V | 2 |
|
| 1AM | 22.00 | 32.00 | 10.00 | 7.00 | NBR | 0000N | 2 |
|
| 1AM | 22.00 | 32.00 | 10.00 | 7.00 | FKM | 0000V | 2 |
|
| 1AM | 25.00 | 35.00 | 7.00 | 5.00 | NBR | 0000N | 2 |
|
| 1AM | 25.00 | 35.00 | 8.00 | 5.00 | NBR | 0000N | 2 |
|
| 1AM | 25.00 | 35.00 | 10.00 | 7.00 | NBR | 0000N | 2 |
|
| 1AM | 25.00 | 35.00 | 10.00 | 7.00 | NBR | 0000N | 3 |
|
| 1AM | 25.00 | 35.00 | 10.00 | 7.00 | FKM | 0000V | 1 |
|
| 1AM | 28.00 | 40.00 | 7.00 | 10.00 | PUR | 0006K | 2 |
|
| 1AM | 28.00 | 40.00 | 10.00 | 7.00 | NBR | 0000N | 2 |
|
| 1AM | 30.00 | 40.00 | 10.00 | 7.00 | NBR | 0000N | 2 |
|
| 1AM | 30.00 | 40.00 | 10.00 | 7.00 | NBR | 0000N | 1 |
|
| 1AM | 30.00 | 45.00 | 8.00 | 5.00 | NBR | 0000N | 2 |
|
| 1AM | 32.00 | 42.00 | 7.00 | 5.00 | FKM | 0000V | 2 |
|
| 1AM | 32.00 | 45.00 | 8.00 | 4.00 | NBR | 0000N | 2 |
|
| 1AM | 35.00 | 45.00 | 7.00 | 5.00 | NBR | 0000N | 2 |
|
| 1AM | 35.00 | 45.00 | 10.00 | 7.00 | NBR | 0000N | 1 |
|
| 1AM | 36.00 | 45.00 | 10.00 | 7.00 | NBR | 0090N | 2 |
|
| 1AM | 15.00 | 21.00 | 5.00 | 3.50 | PUR | 0000P | 2 |
|
| 1AM | 32.00 | 45.00 | 10.00 | 7.00 | PUR | 0006K | 1 |
|
| 1AM | 180.00 | 195.00 | 14.00 | 10.00 | NBR | 0000N | 2 |
|
| 1AM | 140.00 | 155.00 | 12.00 | 9.00 | NBR | 0000N | 1 |
|
| 1AM | 36.00 | 46.00 | 7.00 | 5.00 | NBR | 0090N | 1 |
|
| 1AM | 36.00 | 46.00 | 8.00 | 5.00 | NBR | 0000N | 2 |
|
| 1AM | 38.00 | 48.00 | 10.00 | 7.00 | NBR | 0090N | 1 |
|
| 1AM | 42.00 | 52.00 | 10.00 | 7.00 | NBR | 0000N | 2 |
|
| 1AM | 40.00 | 50.00 | 10.00 | 7.00 | NBR | 0000N | 1 |
|
| 1AM | 40.00 | 50.00 | 10.00 | 7.00 | NBR | 0000N | 1 |
|
| 1AM | 44.00 | 55.00 | 7.00 | 5.00 | NBR | 0000N | 1 |
|
| 1AM | 50.00 | 60.00 | 10.00 | 7.00 | PUR | 0006K | 1 |
|
| 1AM | 35.00 | 45.00 | 8.00 | 5.00 | NBR | 0000N | 1 |
|
| 1AM | 36.00 | 46.00 | 7.00 | 6.00 | PUR | 0006K | 1 |
|
| 1AM | 40.00 | 50.00 | 10.00 | 7.00 | FKM | 0000V | 2 |
|
| 1AM | 40.00 | 50.00 | 10.00 | 7.00 | FKM | 0000V | 1 |
|
| 1AM | 40.00 | 50.00 | 10.00 | 7.00 | NBR | 0000N | 1 |
|
| 1AM | 40.00 | 52.00 | 8.00 | 5.00 | NBR | 0000N | 2 |
|
| 1AM | 45.00 | 55.00 | 7.00 | 5.00 | NBR | 0090N | 1 |
|
| 1AM | 45.00 | 55.00 | 10.00 | 7.00 | NBR | 0000N | 3 |
|
| 1AM | 45.00 | 55.00 | 10.00 | 7.00 | FKM | 0000V | 2 |
|
| 1AM | 45.00 | 60.00 | 10.00 | 7.00 | NBR | 0090N | 2 |
|
| 1AM | 20.00 | 30.00 | 10.00 | 7.00 | NBR | 0000N | 2 |
|
| 1AM | 28.00 | 38.00 | 8.00 | 5.00 | NBR | 0000N | 2 |
|
| 1AM | 170.00 | 190.00 | 14.00 | 10.00 | PUR | 0006K | 1 |
|
| 1AM | 45.00 | 60.00 | 10.00 | 7.00 | NBR | 0000N | 1 |
|
| 1AM | 50.00 | 60.00 | 7.00 | 5.00 | NBR | 0000N | 1 |
|
| 1AM | 50.00 | 60.00 | 7.00 | 5.00 | NBR | 0090N | 2 |
|
| 1AM | 50.00 | 60.00 | 10.00 | 7.00 | NBR | 0000N | 1 |
|
| 1AM | 50.00 | 65.00 | 10.00 | 7.00 | FKM | 0000V | 1 |
|
| 1AM | 50.00 | 65.00 | 10.00 | 7.00 | NBR | 0000N | 2 |
|
| 1AM | 55.00 | 63.00 | 10.00 | 7.00 | NBR | 0090N | 2 |
|
| 1AM | 55.00 | 65.00 | 10.00 | 7.00 | NBR | 0000N | 1 |
|
| 1AM | 55.00 | 65.00 | 10.00 | 7.00 | NBR | 0090N | 1 |
|
| 1AM | 60.00 | 70.00 | 7.00 | 5.00 | NBR | 0090N | 1 |
|
| 1AM | 60.00 | 70.00 | 10.00 | 7.00 | NBR | 0000N | 2 |
|
| 1AM | 60.00 | 70.00 | 10.00 | 7.00 | NBR | 0000N | 3 |
|
| 1AM | 60.00 | 70.00 | 10.00 | 7.00 | NBR | 0090N | 1 |
|
| 1AM | 60.00 | 70.00 | 10.00 | 7.00 | FKM | 0090V | 1 |
|
| 1AM | 60.00 | 78.00 | 15.00 | 11.00 | NBR | 0000N | 2 |
|
| 1AM | 63.00 | 75.00 | 10.00 | 7.00 | NBR | 0000N | 2 |
|
| 1AM | 65.00 | 75.00 | 7.00 | 5.00 | NBR | 0000N | 1 |
|
| 1AM | 65.00 | 75.00 | 7.00 | 5.00 | NBR | 0090N | 1 |
|
| 1AM | 65.00 | 75.00 | 10.00 | 7.00 | NBR | 0090N | 2 |
|
| 1AM | 260.00 | 290.00 | 16.00 | 12.00 | NBR | 0000N | 2 |
|
| 1AM | 70.00 | 80.00 | 7.00 | 5.00 | NBR | 0000N | 2 |
|
| 1AM | 70.00 | 80.00 | 10.00 | 7.00 | FKM | 0000V | 2 |
|
| 1AM | 70.00 | 80.00 | 10.00 | 7.00 | NBR | 0000N | 1 |
|
| 1AM | 70.00 | 80.00 | 10.00 | 7.00 | NBR | 0090N | 1 |
|
| 1AM | 75.00 | 83.00 | 10.00 | 7.00 | NBR | 0000N | 2 |
|
| 1AM | 75.00 | 85.00 | 10.00 | 7.00 | NBR | 0090N | 2 |
|
| 1AM | 240.00 | 260.00 | 16.00 | 12.00 | NBR | 0000N | 2 |
|
| 1AM | 80.00 | 90.00 | 10.00 | 7.00 | NBR | 0000N | 2 |
|
| 1AM | 80.00 | 90.00 | 10.00 | 7.00 | FKM | 0000V | 2 |
|
| 1AM | 80.00 | 90.00 | 10.00 | 7.00 | NBR | 0000N | 1 |
|
| 1AM | 80.00 | 100.00 | 15.00 | 12.00 | NBR | 0000N | 1 |
|
| 1AM | 80.00 | 100.00 | 15.00 | 12.00 | NBR | 0090N | 1 |
|
| 1AM | 38.00 | 48.00 | 10.00 | 7.00 | NBR | 0090N | 2 |
|
| 1AM | 85.00 | 95.00 | 10.00 | 7.00 | NBR | 0000N | 1 |
|
| 1AM | 90.00 | 100.00 | 7.00 | 5.00 | NBR | 0000N | 2 |
|
| 1AM | 95.00 | 105.00 | 10.00 | 7.00 | NBR | 0000N | 2 |
|
| 1AM | 100.00 | 110.00 | 10.00 | 7.00 | PUR | 0006K | 2 |
|
| 1AM | 105.00 | 115.00 | 10.00 | 7.00 | NBR | 0000N | 2 |
|
| 1AM | 110.00 | 120.00 | 10.00 | 7.00 | NBR | 0000N | 1 |
|
| 1AM | 120.00 | 130.00 | 10.00 | 7.00 | NBR | 0000N | 2 |
|
| 1AM | 120.00 | 130.00 | 10.00 | 7.00 | FKM | 0000V | 2 |
|
| 1AM | 120.00 | 130.00 | 10.00 | 7.00 | NBR | 0090N | 2 |
|
| 1AM | 123.00 | 147.00 | 12.00 | 9.00 | NBR | 0000N | 2 |
|
| 1AM | 125.00 | 140.00 | 12.00 | 9.00 | NBR | 0000N | 3 |
|
| 1AM | 125.00 | 140.00 | 12.00 | 9.00 | NBR | 0090N | 1 |
|
| 1AM | 130.00 | 145.00 | 12.00 | 9.00 | NBR | 0090N | 1 |
|
| 1AM | 135.00 | 150.00 | 12.00 | 9.00 | NBR | 0000N | 2 |
|
| 1AM | 140.00 | 155.00 | 12.00 | 9.00 | NBR | 0090N | 2 |
|
| 1AM | 140.00 | 155.00 | 12.00 | 9.00 | NBR | 0090N | 2 |
|
| 1AM | 145.00 | 160.00 | 12.00 | 9.00 | NBR | 0000N | 2 |
|
| 1AM | 150.00 | 166.00 | 12.00 | 8.00 | NBR | 0000N | 2 |
|
| 1AM | 160.00 | 175.00 | 12.00 | 9.00 | PUR | 0006K | 1 |
|
| 1AM | 52.00 | 62.00 | 10.00 | 7.00 | NBR | 0000N | 2 |
|
| 1AM | 320.00 | 340.00 | 16.00 | 12.00 | NBR | 0090N | 2 |
|
| 1AM | 170.00 | 185.00 | 0.00 | 10.00 | NBR | 0000N | 2 |
|
| 1AM | 170.00 | 185.00 | 10.00 | 14.00 | NBR | 0000N | 1 |
|
| 1AM | 200.00 | 220.00 | 12.00 | 16.00 | NBR | 0000N | 2 |
|
| 1AM | 200.00 | 220.00 | 16.00 | 12.00 | NBR | 0000N | 2 |
|
| 1AM | 28.00 | 38.00 | 8.00 | 5.00 | FKM | 0000V | 2 |
|
| 1AM | 60.00 | 70.00 | 10.00 | 7.00 | PUR | 0006K | 2 |
|
| 1AM | 50.00 | 60.00 | 8.00 | 5.00 | NBR | 0000N | 1 |
|
| 1AM | 38.00 | 48.00 | 10.00 | 7.00 | NBR | 0000N | 2 |
|
| 1AM | 40.00 | 52.00 | 10.00 | 7.00 | NBR | 0090N | 1 |
|
| 1AM | 6.00 | 13.00 | 4.50 | 3.00 | NBR | 0000N | 2 |
|
| 1AM | 95.00 | 105.00 | 10.00 | 7.00 | NBR | 0000N | 3 |
|
| 1AM | 32.00 | 42.00 | 7.00 | 5.00 | NBR | 0090N | 1 |
|
| 1AM | 40.00 | 50.00 | 8.00 | 5.00 | FKM | 0000V | 1 |
|
| 1AM | 95.00 | 105.00 | 10.00 | 7.00 | NBR | 0000N | 1 |
|
| 1AM | 280.00 | 300.00 | 16.00 | 12.00 | NBR | 0090N | 2 |
|
| 1AM | 21.00 | 28.00 | 5.00 | 3.50 | NBR | 0000N | 2 |
|
| 1AM | 25.00 | 35.00 | 10.00 | 7.00 | NBR | 0000N | 2 |
|
| 1AM | 110.00 | 120.00 | 10.00 | 7.00 | NBR | 0000N | 2 |
|
| 1AM | 115.00 | 125.00 | 10.00 | 7.00 | NBR | 0000N | 2 |
|
| 1AM | 100.00 | 110.00 | 10.00 | 7.00 | NBR | 0000N | 1 |
|
| 1AM | 12.00 | 18.00 | 5.00 | 3.50 | NBR | 0000N | 2 |
|
| 1AM | 36.00 | 45.00 | 10.00 | 7.00 | FKM | 0002K | 2 |
|
| 1AM | 20.00 | 28.00 | 5.00 | 3.50 | PUR | 0006K | 2 |
|
| 1AM | 170.00 | 185.00 | 14.00 | 10.00 | NBR | 0000N | 2 |
|
| 1AM | 20.00 | 28.00 | 5.00 | 3.50 | PUR | 0006K | 2 |
|
| 1AM | 84.00 | 94.00 | 8.00 | 5.00 | NBR | 0000N | 2 |
|
| 1AM | 75.00 | 83.00 | 10.00 | 7.00 | PUR | 0006K | 2 |
|
| 1AM | 90.00 | 100.00 | 7.00 | 5.00 | FKM | 0000V | 2 |
|
| 1AM | 63.00 | 75.00 | 10.00 | 7.00 | PUR | 0006K | 2 |
|
| 1AM | 20.00 | 32.00 | 9.00 | 6.00 | PUR | 0006K | 2 |
|
| 1AM | 40.00 | 52.00 | 8.00 | 5.00 | NBR | 0000N | 2 |
|
| 1AM | 60.00 | 80.00 | 10.00 | 7.00 | NBR | 0000N | 2 |
|
| 1AM | 160.00 | 175.00 | 12.00 | 9.00 | FKM | 0000V | 2 |
|
| 1AM | 25.00 | 35.00 | 10.00 | 7.00 | NBR | 0090N | 1 |
|
| 1AM | 26.00 | 35.00 | 10.00 | 7.00 | NBR | 0000N | 2 |
|
| 1AM | 8.00 | 14.00 | 5.00 | 3.50 | NBR | 0090N | 2 |
|
| 1AM | 32.00 | 45.00 | 10.00 | 7.00 | NBR | 0090N | 1 |
|
| 1AM | 35.00 | 45.00 | 10.00 | 7.00 | NBR | 0000N | 2 |
|
| 1AM | 10.00 | 16.00 | 4.50 | 3.00 | NBR | 0090N | 2 |
|
| 1AM | 60.00 | 70.00 | 10.00 | 7.00 | NBR | 0000N | 1 |
|
| 1AM | 48.00 | 60.00 | 10.00 | 7.00 | NBR | 0000N | 1 |
|
