Spriral Back-Up Ring SP1
Back-up ring, spiral shaped, for external sealing applications.Depending on one-sided or alternating pressurisation, one or two back-up rings are used. For details on groove sizing (groove width L), please refer to our application catalogue or contact our application technology department.
Application Range
Temperature: -100 °C / +200 °C
Standard Material: PTFE
Spriral Back-Up Ring SP1
Are you missing materials or dimensions?
Feel free to contact us!
Our sealing experts will be happy to advise you!
Filter

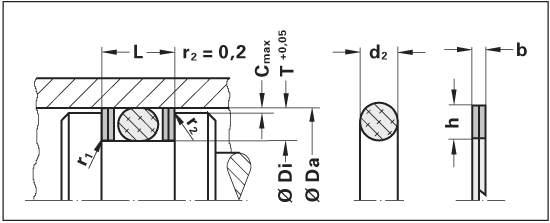

| Di [mm] | Da [mm] | B [mm] | |
|---|---|---|---|
| Min: | |||
| Max: |
| Material selection | |
|---|---|
| Material: | |
| Material No. |
| V | |
|---|---|
| Profile | Di [mm] | Da [mm] | B [mm] | Material | Mat. No. | V | Quantity |
|---|---|---|---|---|---|---|---|
| SP2 | 125.00 | 130.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 122.40 | 127.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 7.90 | 12.00 | 1.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 38.70 | 45.00 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 145.70 | 152.00 | 1.60 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 312.80 | 325.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 230.20 | 240.00 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 51.20 | 61.00 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 6.50 | 9.50 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 43.00 | 48.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 190.00 | 200.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 266.00 | 280.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 31.00 | 36.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 28.70 | 32.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 229.30 | 240.00 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 62.00 | 70.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 48.80 | 55.00 | 1.40 | PTFE-Compound 0004T | 0004T | 2 |
|
| SP2 | 76.20 | 85.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 317.80 | 330.00 | 2.50 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP2 | 37.20 | 44.00 | 1.50 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP2 | 231.00 | 240.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 307.00 | 317.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 53.80 | 60.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 58.00 | 66.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 19.20 | 25.40 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 15.30 | 20.10 | 1.56 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 220.00 | 232.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 34.60 | 40.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 182.00 | 196.00 | 2.00 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP2 | 123.72 | 130.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 387.80 | 400.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 23.00 | 30.00 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 165.00 | 171.20 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 65.20 | 75.00 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 23.80 | 30.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 291.40 | 300.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 280.00 | 292.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 130.20 | 137.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 60.00 | 65.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 417.80 | 430.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 24.45 | 30.45 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 132.10 | 142.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 17.50 | 23.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 179.20 | 192.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 131.40 | 140.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 83.80 | 90.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 371.40 | 383.00 | 2.50 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP2 | 411.40 | 423.00 | 2.50 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP2 | 76.40 | 85.00 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 59.90 | 65.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 235.80 | 250.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 72.00 | 80.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 31.00 | 34.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 121.20 | 128.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 86.00 | 91.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 160.00 | 172.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 91.40 | 100.00 | 1.50 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP2 | 132.80 | 145.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 18.02 | 22.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 201.40 | 210.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 207.20 | 220.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 193.70 | 200.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 437.80 | 450.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 230.00 | 242.80 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 36.80 | 41.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 301.40 | 310.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 132.20 | 145.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 57.80 | 64.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 87.00 | 99.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 8.40 | 12.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 102.80 | 110.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 124.20 | 131.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 152.00 | 160.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 39.00 | 46.00 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 71.00 | 80.00 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 63.00 | 72.40 | 1.65 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP2 | 60.00 | 80.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 106.60 | 113.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 536.00 | 548.00 | 2.00 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP2 | 326.40 | 338.00 | 2.50 | PTFE-Compound 0004T | 0004T | 2 |
|
| SP2 | 527.80 | 540.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 61.90 | 68.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 78.70 | 85.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 71.00 | 80.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 54.00 | 63.00 | 1.50 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP2 | 70.00 | 79.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 108.20 | 115.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 59.80 | 70.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 127.20 | 140.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 217.80 | 226.00 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 281.40 | 290.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 127.00 | 139.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 38.50 | 45.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 45.30 | 55.00 | 1.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 188.00 | 200.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 65.00 | 71.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 101.00 | 107.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 270.40 | 282.00 | 2.50 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP2 | 11.00 | 17.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 23.60 | 30.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 196.40 | 205.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 174.00 | 188.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 216.40 | 225.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 55.80 | 62.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 9.00 | 11.84 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 116.40 | 125.00 | 1.50 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP2 | 251.80 | 262.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 201.50 | 210.80 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 37.80 | 44.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 91.20 | 98.00 | 1.50 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP2 | 65.00 | 70.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 70.00 | 75.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 40.00 | 45.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 4.00 | 8.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 175.00 | 185.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 114.60 | 123.60 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 16.40 | 21.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 13.50 | 16.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 40.80 | 50.00 | 1.60 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 156.40 | 165.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 156.40 | 165.00 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 19.00 | 22.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 29.80 | 34.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 150.40 | 160.00 | 1.80 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 53.00 | 60.00 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 39.60 | 43.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 151.40 | 160.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 18.60 | 25.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 189.30 | 201.30 | 2.00 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP2 | 229.20 | 242.00 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 93.20 | 100.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 214.90 | 226.50 | 2.50 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP2 | 451.40 | 463.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 98.80 | 105.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 54.40 | 63.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 55.70 | 62.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 187.20 | 200.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 140.00 | 149.80 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 130.00 | 140.00 | 2.00 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP2 | 75.40 | 84.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 302.00 | 312.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 229.90 | 241.50 | 2.50 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP2 | 74.00 | 79.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 81.40 | 90.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 344.00 | 358.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 467.80 | 480.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 28.50 | 33.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 66.40 | 75.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 270.60 | 280.00 | 1.70 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP2 | 61.50 | 71.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 139.80 | 146.00 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 24.80 | 30.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 80.70 | 90.00 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 139.80 | 150.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 64.20 | 74.00 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 124.00 | 140.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 41.60 | 47.80 | 1.40 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP2 | 49.20 | 53.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 311.40 | 320.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 171.40 | 180.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 40.20 | 50.00 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 9.00 | 14.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 53.20 | 63.00 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 16.70 | 20.00 | 1.40 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP2 | 66.00 | 70.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 310.60 | 320.00 | 1.70 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP2 | 150.90 | 160.60 | 1.50 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP2 | 291.10 | 300.70 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 88.80 | 95.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 167.00 | 181.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 526.60 | 540.00 | 2.80 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 115.00 | 120.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 157.20 | 170.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 116.00 | 125.00 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 422.40 | 440.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 141.40 | 150.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 110.60 | 120.00 | 1.70 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP2 | 49.80 | 56.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 50.80 | 57.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 45.80 | 50.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 14.60 | 17.60 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 350.60 | 360.00 | 1.70 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP2 | 210.60 | 220.00 | 1.70 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP2 | 279.80 | 292.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 211.00 | 225.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 211.40 | 220.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 214.00 | 226.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 29.50 | 34.00 | 1.40 | PTFE-Compound 0004T | 0004T | 2 |
|
| SP2 | 49.50 | 54.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 95.10 | 105.00 | 1.60 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 5.20 | 8.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 819.30 | 835.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 101.40 | 110.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 261.40 | 270.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 63.20 | 70.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 92.00 | 100.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 99.25 | 108.45 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 86.50 | 92.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 106.40 | 115.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 481.80 | 492.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 96.60 | 106.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 321.40 | 333.00 | 2.50 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP2 | 83.40 | 92.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 85.00 | 90.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 15.54 | 20.14 | 1.14 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP2 | 54.80 | 65.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 249.40 | 260.00 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 217.00 | 230.00 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 487.20 | 500.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 163.00 | 175.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 95.00 | 100.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 5.60 | 8.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 170.00 | 180.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 106.70 | 113.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 90.70 | 100.00 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 119.40 | 128.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 90.00 | 100.00 | 1.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 332.20 | 345.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 79.70 | 90.00 | 1.40 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP2 | 32.00 | 40.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 80.60 | 90.00 | 1.70 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP2 | 229.20 | 241.80 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 18.00 | 24.50 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 115.20 | 125.00 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 280.00 | 290.00 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 53.70 | 60.00 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 129.20 | 140.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 112.15 | 121.15 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 59.40 | 70.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 250.40 | 262.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 120.00 | 128.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 137.20 | 144.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 139.20 | 146.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 942.60 | 960.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 156.20 | 166.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 11.00 | 14.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 14.60 | 18.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 49.00 | 55.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 11.80 | 16.00 | 1.44 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 139.80 | 152.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 20.90 | 23.90 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 164.20 | 171.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 114.60 | 124.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 64.00 | 74.00 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 30.00 | 35.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 89.80 | 100.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 304.80 | 314.20 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 271.30 | 283.00 | 3.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 26.00 | 31.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 81.60 | 90.00 | 1.30 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 290.40 | 302.00 | 2.50 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP2 | 297.00 | 309.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 162.20 | 175.00 | 2.50 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP2 | 34.80 | 40.00 | 1.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 65.50 | 75.00 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 43.80 | 50.00 | 1.40 | PTFE-Compound 0004T | 0004T | 2 |
|
| SP2 | 13.20 | 16.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 22.60 | 28.00 | 1.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 290.40 | 300.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 61.80 | 68.00 | 1.40 | PTFE-Compound 0004T | 0004T | 1 |
|
| SP2 | 62.60 | 68.70 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 147.20 | 160.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 287.50 | 300.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 272.60 | 285.00 | 2.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 250.70 | 260.70 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 21.50 | 26.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 22.00 | 28.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 156.00 | 168.00 | 2.00 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP2 | 52.00 | 62.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 70.20 | 80.00 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 81.20 | 88.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 278.80 | 300.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 191.40 | 200.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 13.50 | 18.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 48.80 | 55.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 12.30 | 15.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 24.20 | 31.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 43.50 | 48.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 15.00 | 20.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 76.80 | 83.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 79.60 | 89.00 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 80.00 | 95.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 943.80 | 955.90 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 267.00 | 279.00 | 3.20 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 543.00 | 555.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 482.80 | 495.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 23.80 | 28.10 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 50.00 | 55.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 487.00 | 500.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 421.40 | 433.00 | 2.50 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP2 | 23.70 | 30.00 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 44.50 | 49.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 428.40 | 437.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 54.00 | 60.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 85.60 | 95.00 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 10.50 | 15.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 112.40 | 122.00 | 1.80 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 391.40 | 403.00 | 2.50 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP2 | 8.00 | 11.60 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 341.40 | 353.00 | 2.50 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP2 | 75.40 | 80.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 310.00 | 320.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 267.30 | 280.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 240.00 | 250.00 | 1.82 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 15.90 | 20.00 | 1.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 240.50 | 250.70 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 181.00 | 186.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 80.40 | 90.00 | 1.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 68.80 | 75.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 63.40 | 72.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 25.60 | 32.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 38.00 | 48.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 206.40 | 215.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 322.00 | 332.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 193.20 | 200.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 19.80 | 25.20 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 180.60 | 190.00 | 1.70 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP2 | 180.20 | 187.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 176.20 | 183.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 134.70 | 146.70 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 167.80 | 180.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 167.50 | 180.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 167.36 | 179.92 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 158.00 | 170.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 143.20 | 150.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 308.00 | 318.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 146.40 | 155.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 141.20 | 150.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 139.40 | 148.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 126.00 | 138.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 167.20 | 180.00 | 1.25 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 58.20 | 65.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 68.20 | 75.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 110.50 | 120.00 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 113.40 | 123.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 117.20 | 130.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 51.80 | 58.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 37.50 | 42.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 46.00 | 51.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 44.50 | 48.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 25.00 | 29.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 22.10 | 25.00 | 1.40 | PTFE-Compound 0004T | 0004T | 1 |
|
| SP2 | 108.00 | 113.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 11.40 | 16.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 66.20 | 73.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 70.60 | 76.80 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 100.60 | 110.00 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 36.60 | 43.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 99.80 | 106.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 95.50 | 100.50 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 59.80 | 66.00 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 73.60 | 80.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 241.40 | 250.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 155.00 | 165.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 32.00 | 38.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 33.60 | 40.00 | 1.40 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP2 | 90.20 | 100.00 | 1.70 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP2 | 75.50 | 80.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 73.20 | 80.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 72.60 | 82.00 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 57.40 | 66.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 52.20 | 58.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 43.80 | 48.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 39.00 | 44.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 38.60 | 45.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 32.00 | 39.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 28.60 | 35.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 26.20 | 29.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 217.50 | 225.50 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 48.80 | 55.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 17.40 | 21.90 | 1.40 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP2 | 19.40 | 24.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 20.00 | 26.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 20.20 | 25.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 23.80 | 27.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 448.20 | 460.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 17.10 | 20.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 59.60 | 70.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 56.00 | 65.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 45.80 | 52.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 55.60 | 65.00 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 4.70 | 8.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 17.80 | 22.00 | 1.50 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP2 | 18.40 | 22.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 91.80 | 98.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 172.20 | 185.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 65.80 | 70.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 17.20 | 20.20 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 21.10 | 24.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 169.20 | 180.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 136.40 | 145.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 16.40 | 25.00 | 1.60 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 68.00 | 75.00 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 109.00 | 115.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 537.90 | 550.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 269.00 | 280.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 110.00 | 120.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 57.20 | 64.00 | 1.50 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP2 | 70.30 | 76.15 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 271.40 | 280.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 337.80 | 350.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 33.20 | 40.00 | 1.50 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP2 | 64.00 | 70.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 18.00 | 24.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 15.30 | 17.70 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 41.00 | 47.30 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 70.60 | 80.00 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 311.40 | 323.00 | 2.50 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP2 | 70.00 | 79.80 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 70.00 | 80.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 105.00 | 113.60 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 187.80 | 200.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 6.00 | 9.00 | 1.40 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP2 | 40.50 | 45.00 | 1.40 | PTFE-Compound 0004T | 0004T | 2 |
|
| SP2 | 90.00 | 100.00 | 2.10 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 12.00 | 16.00 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 238.00 | 250.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 176.40 | 185.00 | 1.50 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP2 | 41.00 | 50.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 74.00 | 84.00 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 237.20 | 250.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 60.00 | 70.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 6.70 | 10.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 196.90 | 209.00 | 1.25 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 90.50 | 100.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 154.40 | 163.00 | 1.90 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 120.60 | 130.60 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 52.80 | 57.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 59.00 | 64.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 83.20 | 90.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 128.00 | 140.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 42.80 | 50.00 | 1.50 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP2 | 125.00 | 134.50 | 1.70 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP2 | 170.60 | 180.00 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 47.00 | 52.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 49.00 | 54.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 100.00 | 115.50 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 212.00 | 226.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 56.20 | 63.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 387.20 | 400.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 121.40 | 130.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 75.60 | 85.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 222.00 | 230.00 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 192.00 | 204.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 140.00 | 148.60 | 1.50 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP2 | 23.50 | 28.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 260.00 | 268.60 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 29.00 | 35.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 35.60 | 42.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 51.00 | 56.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 22.00 | 27.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 50.00 | 58.00 | 1.50 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP2 | 407.20 | 420.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 231.50 | 240.80 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 27.00 | 32.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 122.00 | 127.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 44.00 | 53.40 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 117.00 | 129.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 24.40 | 28.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 40.50 | 45.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 16.40 | 25.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 40.00 | 45.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 106.20 | 115.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 74.80 | 85.00 | 1.80 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 23.00 | 29.00 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 135.90 | 145.60 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 190.40 | 200.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 332.00 | 342.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 66.40 | 71.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 52.40 | 62.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 20.80 | 25.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 122.00 | 130.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 189.90 | 201.50 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 266.40 | 275.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 239.90 | 251.50 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 53.00 | 58.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 202.80 | 210.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 75.00 | 80.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 123.00 | 130.00 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 188.20 | 200.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 56.00 | 65.00 | 1.80 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 45.20 | 55.00 | 1.70 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP2 | 237.00 | 251.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 50.50 | 55.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 185.60 | 195.00 | 1.70 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP2 | 20.80 | 24.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 43.90 | 50.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 48.20 | 55.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 133.20 | 140.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 11.00 | 16.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 338.00 | 350.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 12.70 | 16.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 148.00 | 160.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 72.80 | 80.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 387.00 | 400.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 50.00 | 59.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 167.20 | 180.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 157.80 | 170.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 37.00 | 42.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 120.00 | 125.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 35.00 | 40.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP2 | 251.50 | 260.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
