Spriral Back-Up Ring SP1

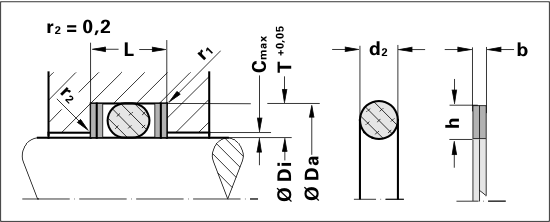

Back-up ring, spiral shaped, for internal sealing applications.Depending on one-sided or alternating pressurisation, one or two back-up rings are used. For details on groove sizing (groove width L), please refer to our application catalogue or contact our application technology department.
Application Range
Temperature: -100 °C / +200 °C
Standard Material: PTFE
Spriral Back-Up Ring SP1
Are you missing materials or dimensions?
Feel free to contact us!
Our sealing experts will be happy to advise you!
Filter
| Di [mm] | Da [mm] | B [mm] | |
|---|---|---|---|
| Min: | |||
| Max: |
| Material selection | |
|---|---|
| Material: | |
| Material No. |
| V | |
|---|---|
| Profile | Di [mm] | Da [mm] | B [mm] | Material | Mat. No. | V | Quantity |
|---|---|---|---|---|---|---|---|
| SP1 | 694.00 | 706.60 | 3.20 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 368.00 | 380.20 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 70.00 | 76.20 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 30.00 | 34.50 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 5.00 | 8.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 70.00 | 76.80 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 229.20 | 241.20 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 45.00 | 50.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 25.00 | 29.20 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 73.30 | 80.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 33.00 | 39.40 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 40.00 | 45.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 50.00 | 59.80 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 7.30 | 12.10 | 1.20 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 330.00 | 342.20 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 280.00 | 292.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 80.00 | 86.80 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 22.00 | 24.90 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 189.00 | 201.60 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 25.00 | 31.40 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 35.00 | 41.40 | 1.40 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP1 | 51.20 | 61.00 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 88.00 | 97.80 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 245.00 | 256.20 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 100.30 | 110.60 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 35.00 | 39.50 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 20.00 | 22.90 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 45.00 | 54.80 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 60.00 | 66.80 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 22.00 | 26.50 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 38.00 | 44.20 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 24.80 | 30.00 | 1.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 122.20 | 135.00 | 2.50 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP1 | 142.40 | 148.70 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 9.00 | 12.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 18.00 | 21.50 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 160.00 | 168.60 | 1.50 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP1 | 317.00 | 329.80 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 20.00 | 26.40 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 75.00 | 81.30 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 80.00 | 89.80 | 1.70 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP1 | 30.20 | 34.70 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 79.00 | 88.80 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 22.00 | 25.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 90.00 | 100.20 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 154.00 | 162.20 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 660.00 | 672.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 72.00 | 78.80 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 8.00 | 12.20 | 1.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 300.00 | 306.40 | 1.60 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP1 | 563.00 | 580.00 | 4.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 140.00 | 152.80 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 53.77 | 60.00 | 1.20 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 33.60 | 40.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 12.00 | 16.60 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 50.80 | 56.90 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 44.00 | 52.40 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 170.00 | 179.00 | 1.50 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP1 | 110.00 | 119.80 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 85.00 | 91.80 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 23.50 | 28.00 | 1.40 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP1 | 32.00 | 37.20 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 194.00 | 203.20 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 250.35 | 261.95 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 123.00 | 135.80 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 30.00 | 34.50 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 25.00 | 31.20 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 60.00 | 65.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 422.40 | 440.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 76.00 | 82.20 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 22.00 | 26.40 | 1.60 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP1 | 35.00 | 41.20 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 30.20 | 36.30 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 18.00 | 20.90 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 36.00 | 42.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 26.00 | 30.10 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 200.00 | 209.40 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 20.00 | 24.50 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 38.00 | 44.30 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 44.00 | 53.40 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 16.00 | 20.60 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 20.00 | 26.30 | 1.50 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP1 | 7.00 | 9.40 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 470.00 | 482.20 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 250.35 | 261.95 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 190.00 | 198.60 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 83.80 | 90.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 63.00 | 72.80 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 25.00 | 30.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 117.00 | 133.80 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 22.00 | 28.40 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 188.00 | 200.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 18.00 | 20.80 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 53.00 | 63.00 | 1.90 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 79.00 | 88.20 | 1.80 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 12.00 | 14.90 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 470.00 | 482.80 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 14.00 | 18.50 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 290.00 | 302.80 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 85.00 | 94.40 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 6.90 | 9.50 | 1.00 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP1 | 320.00 | 332.80 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 34.60 | 44.40 | 1.60 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 70.60 | 77.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 75.00 | 83.60 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 26.00 | 31.20 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 270.00 | 278.60 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 240.00 | 252.80 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 40.00 | 49.80 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 7.00 | 10.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 50.00 | 57.20 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 85.00 | 93.60 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 90.00 | 95.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 95.00 | 101.80 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 100.00 | 110.00 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 105.00 | 111.40 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 222.00 | 231.80 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 115.00 | 124.40 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 147.00 | 153.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 26.80 | 33.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 45.00 | 50.30 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 115.00 | 126.40 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 22.00 | 28.20 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 260.00 | 269.40 | 1.70 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP1 | 36.00 | 45.80 | 1.60 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 120.00 | 126.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 125.00 | 137.80 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 130.00 | 141.60 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 147.00 | 154.50 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 44.00 | 56.20 | 3.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 35.00 | 41.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 92.00 | 98.80 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 41.00 | 45.50 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 78.70 | 85.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 28.00 | 34.40 | 1.40 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP1 | 125.00 | 134.40 | 1.70 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP1 | 70.00 | 77.20 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 20.00 | 25.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 16.00 | 18.90 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 174.00 | 186.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 215.90 | 228.00 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 220.00 | 229.60 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 20.00 | 24.50 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 76.00 | 81.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 235.00 | 243.60 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 250.00 | 259.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 305.00 | 311.40 | 1.60 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 51.00 | 60.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 75.00 | 84.80 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 160.00 | 169.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 11.00 | 15.60 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 32.00 | 36.50 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 53.50 | 59.70 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 508.00 | 520.20 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 200.00 | 209.50 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 10.00 | 16.20 | 1.40 | PTFE-Compound | 0005T | 2 |
|
| SP1 | 75.00 | 79.80 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 60.00 | 69.80 | 1.70 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP1 | 64.00 | 70.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 56.00 | 65.80 | 1.70 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP1 | 13.00 | 17.50 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 14.00 | 18.60 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 97.00 | 103.80 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 270.00 | 282.80 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 18.00 | 23.40 | 1.50 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP1 | 8.00 | 13.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 4.00 | 7.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 3.60 | 7.70 | 1.30 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 120.00 | 132.80 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 85.00 | 94.80 | 1.70 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP1 | 42.00 | 47.40 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 30.00 | 36.40 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 36.00 | 42.20 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 100.60 | 109.20 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 63.00 | 72.50 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 368.00 | 380.20 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 129.70 | 136.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 116.00 | 121.00 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 135.70 | 141.80 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 165.00 | 177.20 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 10.30 | 15.10 | 1.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 90.00 | 100.00 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 180.00 | 190.20 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 85.00 | 93.60 | 1.60 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP1 | 118.00 | 125.00 | 1.70 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 150.00 | 158.60 | 1.50 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP1 | 90.00 | 96.80 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 5.13 | 7.83 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 10.00 | 14.50 | 1.50 | PTFE-Compound 0000T | 0000T | 1 |
|
| SP1 | 190.00 | 202.80 | 2.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 117.00 | 123.20 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 32.20 | 34.70 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 32.00 | 38.00 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 80.50 | 89.80 | 1.90 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 44.00 | 48.40 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 57.00 | 63.20 | 1.40 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 70.00 | 80.60 | 1.50 | PTFE-Compound 0000T | 0000T | 2 |
|
| SP1 | 329.40 | 338.80 | 2.00 | PTFE-Compound 0000T | 0000T | 2 |
|
